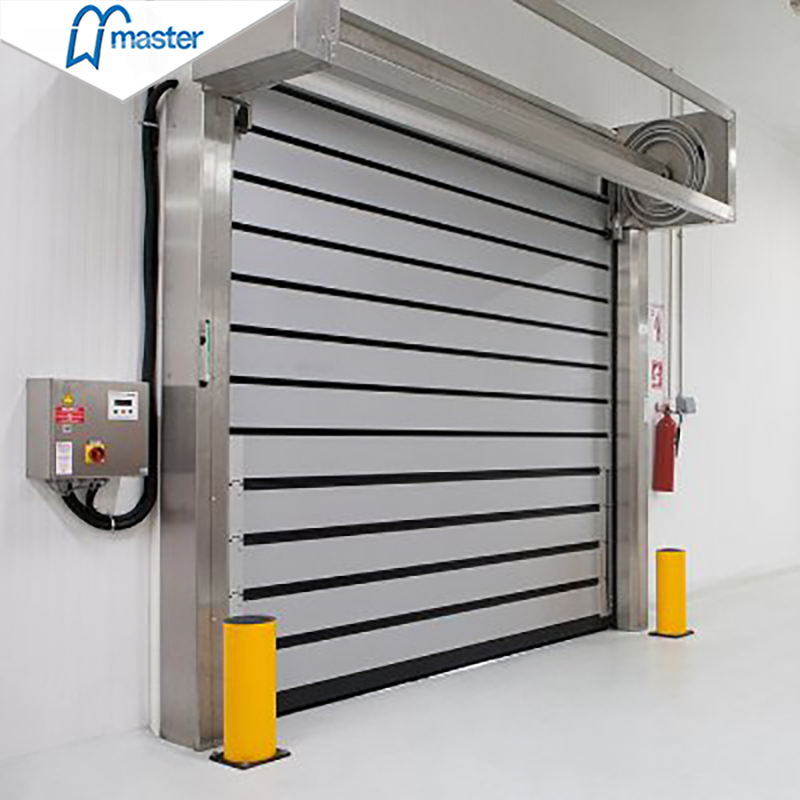

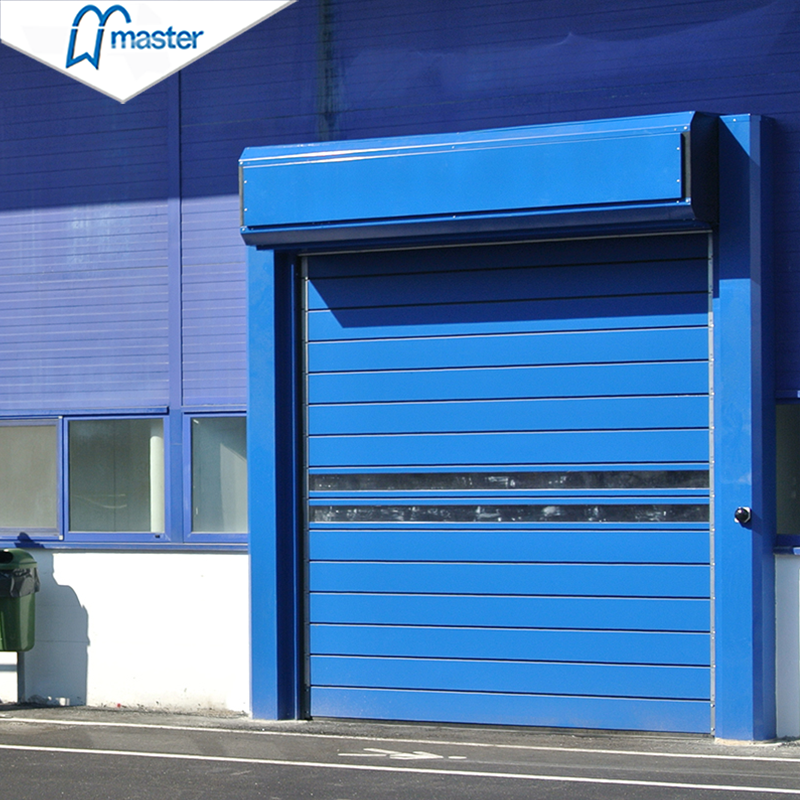

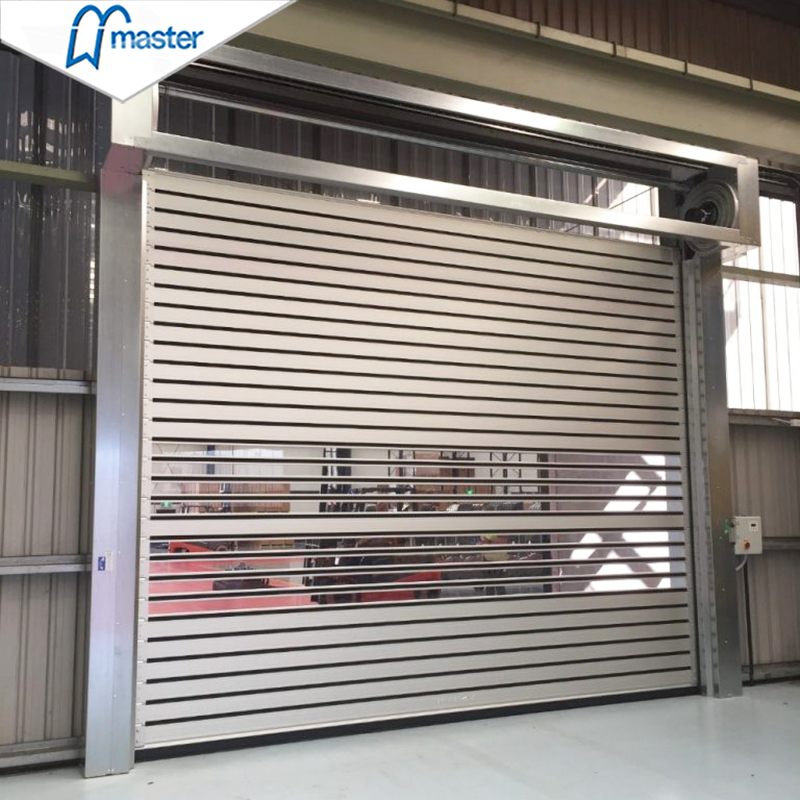

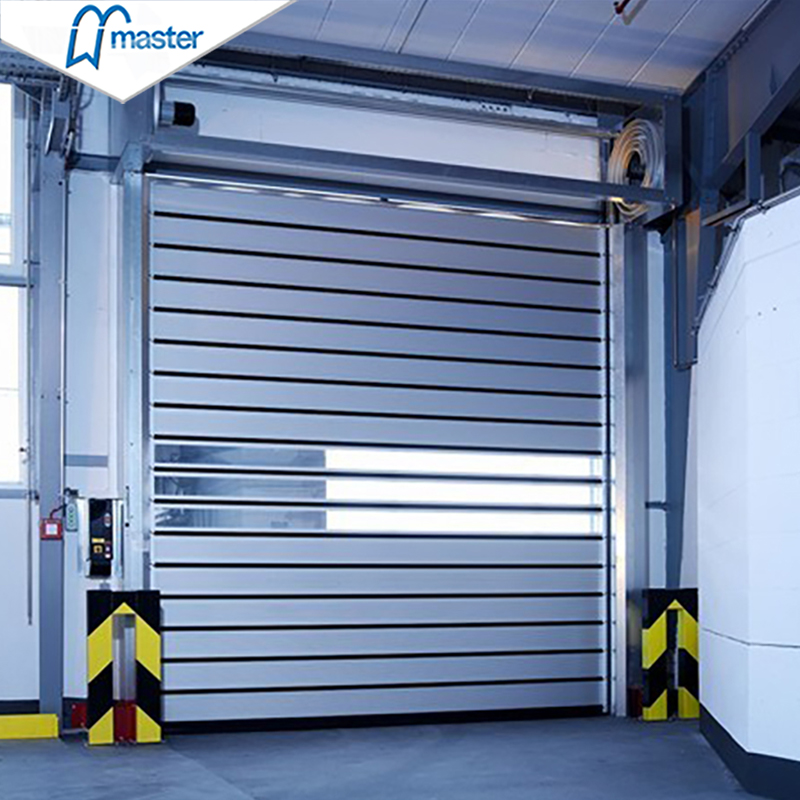

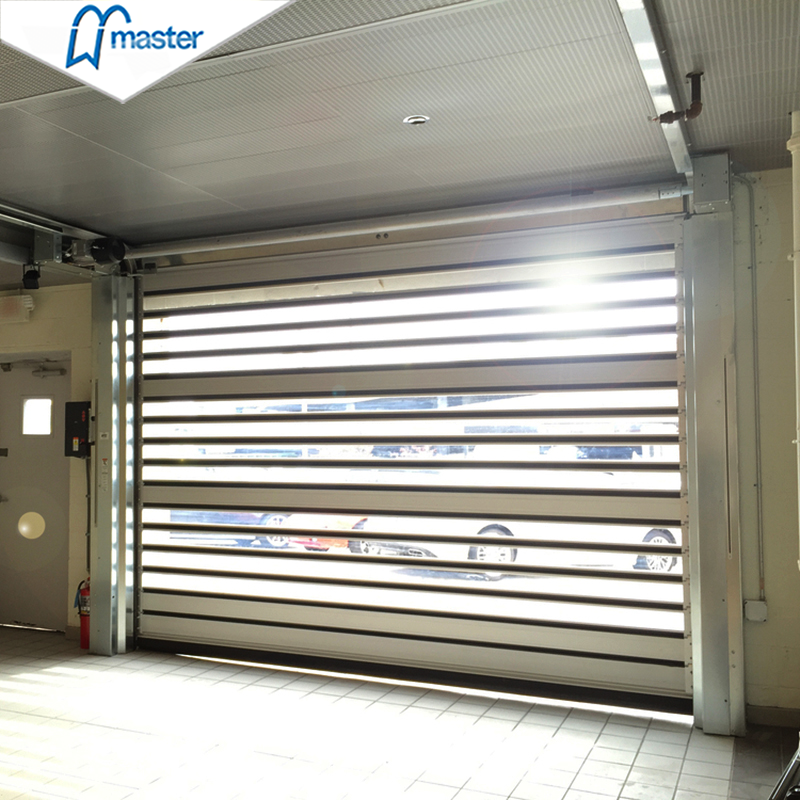

Master Well Wholesale Industrial Warehouse Security Rolling Roller Shutter Door Fast Roll up Aluminum High Speed Spiral Doors
Product Description
Product Description

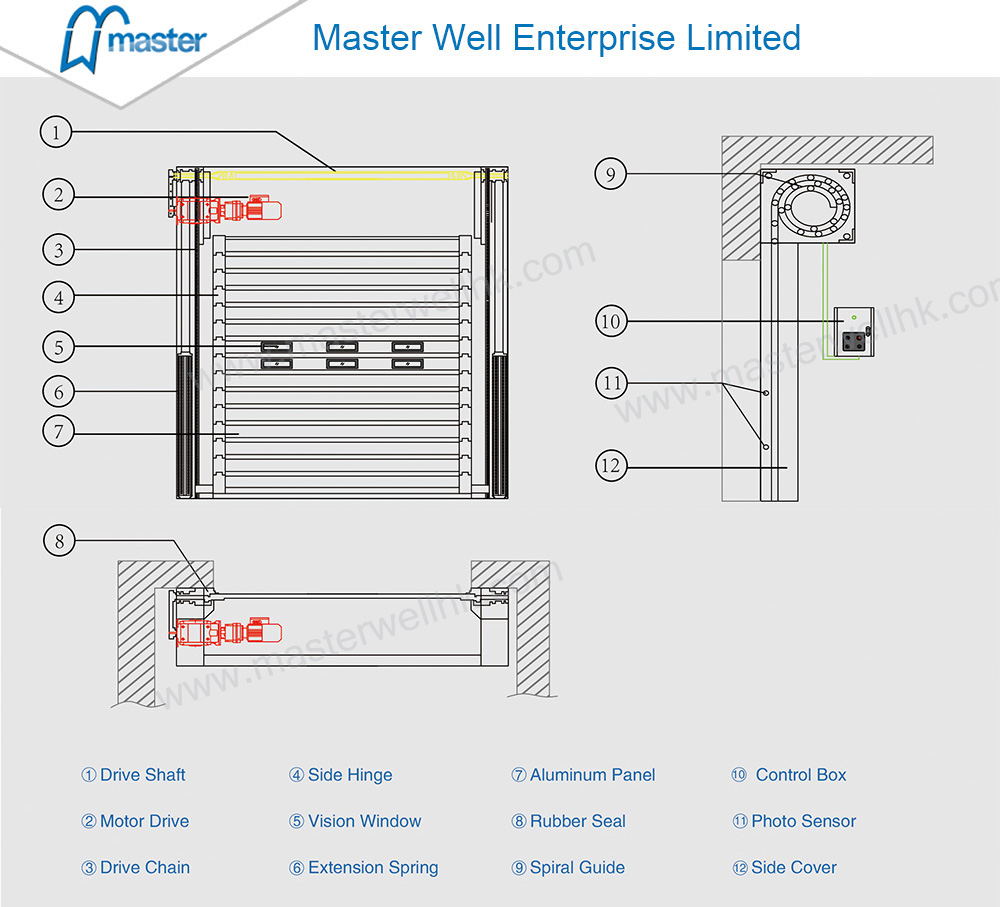

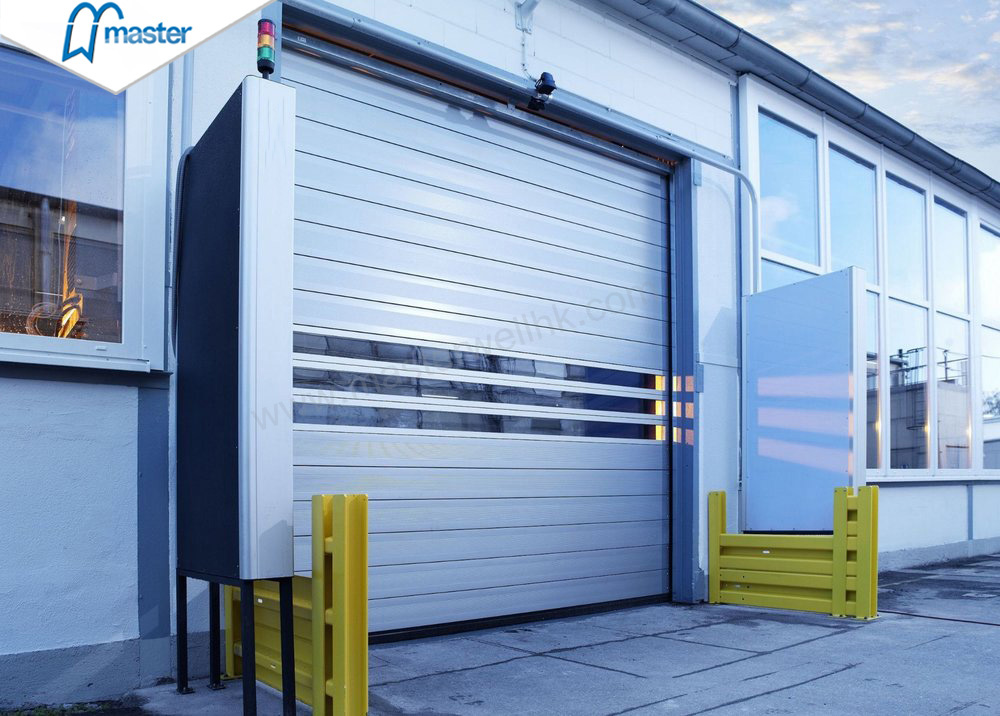

Standard kit of High Speed Aluminum Spiral Door: Master Well High Speed Aluminum Spiral Door is the globally unique result under innovation and creative approach to the latest technology.
Specification of High Speed Aluminum Spiral Door
It can be configured for a wide range of opening and closing speed, allowing you to precisely set the best speed for your application.
| Product Name | High Speed Aluminum Spiral Door |
| Special Option | Servo System Motor |
| Maximum Door Size | W8000mm * H6500mm |
| Opening Speed | 0.8 - 2.5 m/s, adjustable |
| Standard Control Mode | Push wall switch |
| Operation Way | Remote control, Access Control, Magnetic loop, Radar, Pull Rope Switch |
| Emergency Operation | Available |
| Door Panel | Aluminum sandwich construction, PU foamed |
| Hardware Material |
Frame and Cover Box: Galvanized steel / 304 stainless steel Inner Track Guide: Aluminum extrusion Vision panel: Optional Double PC sheet window |
| Motor Brand | SNMA, SEW, SIEMENS, SEJ, SERVO |
| Motor Power | 0.75kw - 5.50kw |
| Input Voltage | 220V 50HZ / 380V 50HZ |
| PLC Brand | SIEMENS / MITSUBISHI / OMRON / KEWEI |
| Inverter / AC Driver | MITSUBISHI, SIEMENS, SHIHLIN |
| Revolving Encoder | TOFI (INCREMENTAL ENCODER) |
| Control Box | Safety class IP55, Variable speed drive |
| Safety Performance | Infrared photo sensor, Safety airbag edge protection |
| Wind Resistance | Class 12 (Beaufort Scale) |
| Operating Life | 500,000 cycles |
| Working Temperature | -25 °C to 65 °C |
| Warranty | 1 year for electric parts, 5 years for mechanical parts |

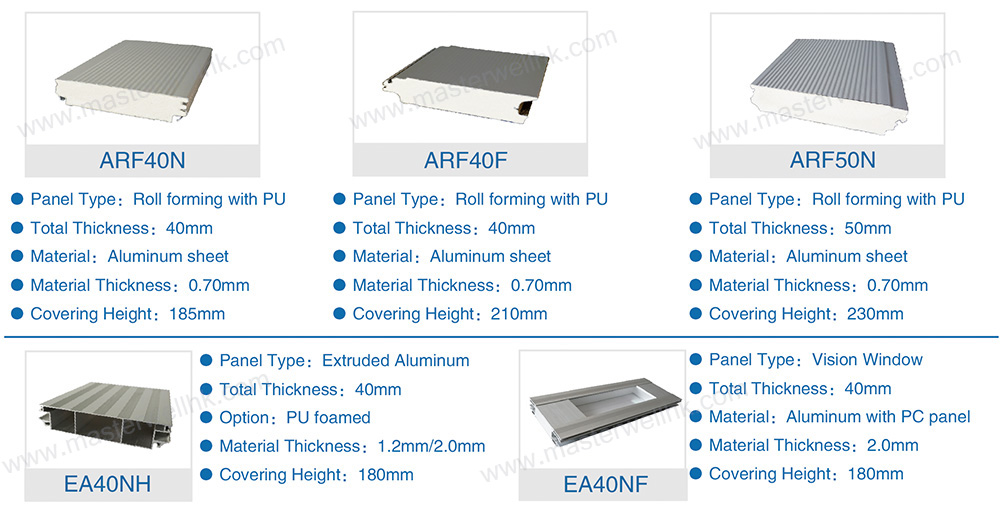

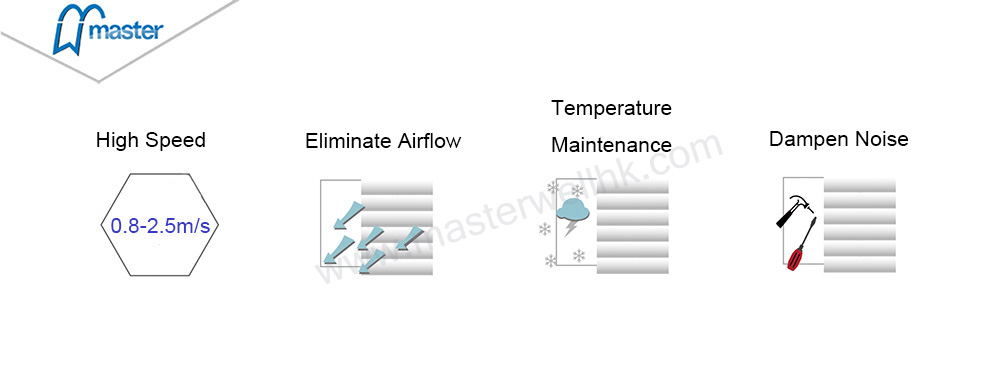

Door Panel Options & Features
The outstanding advantage of Spiral doors is Energy Saving.

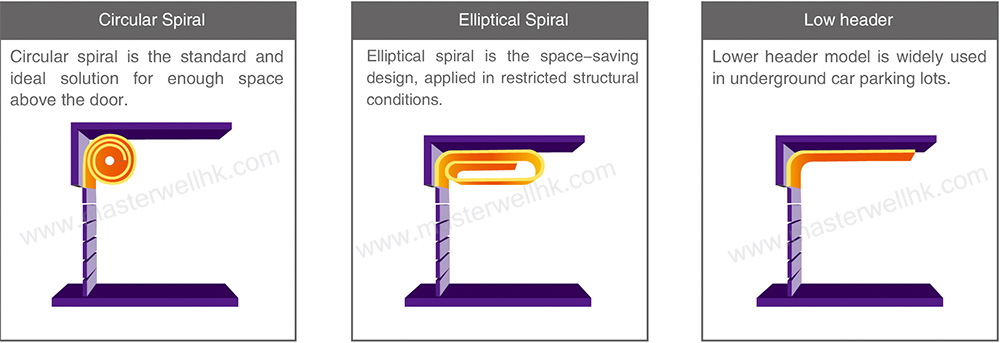

Color & Track Options

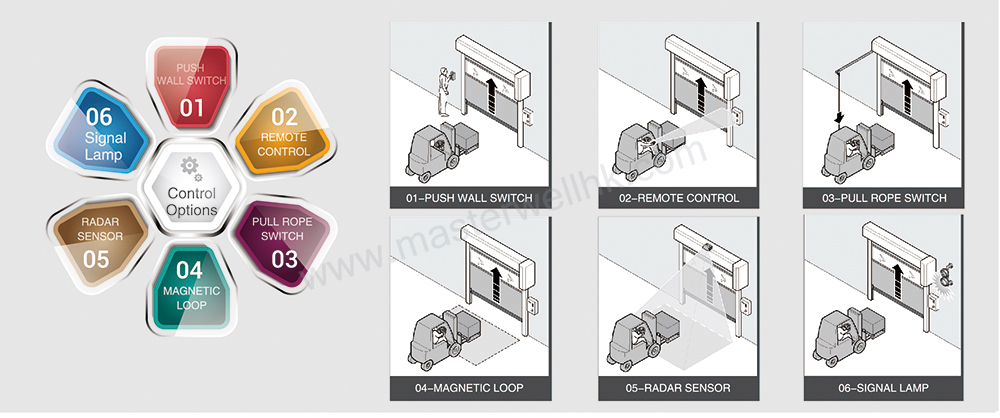

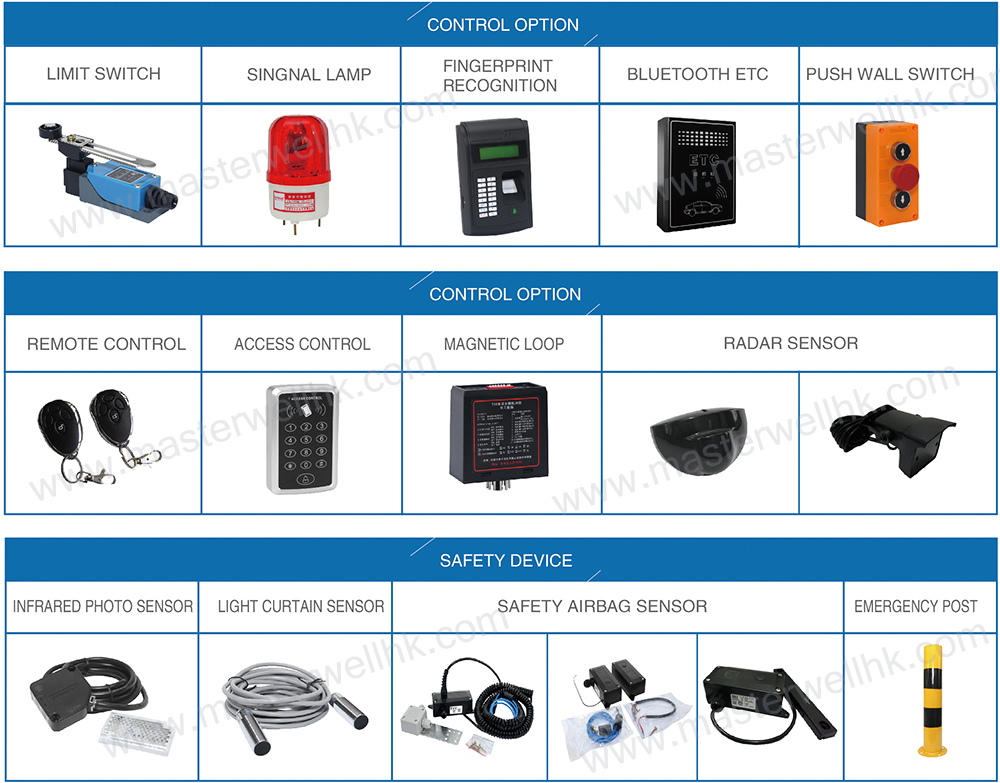

Options of Operation
Widely used in food factory, electronic workshop, warehouse, clean room, warehouse, etc.

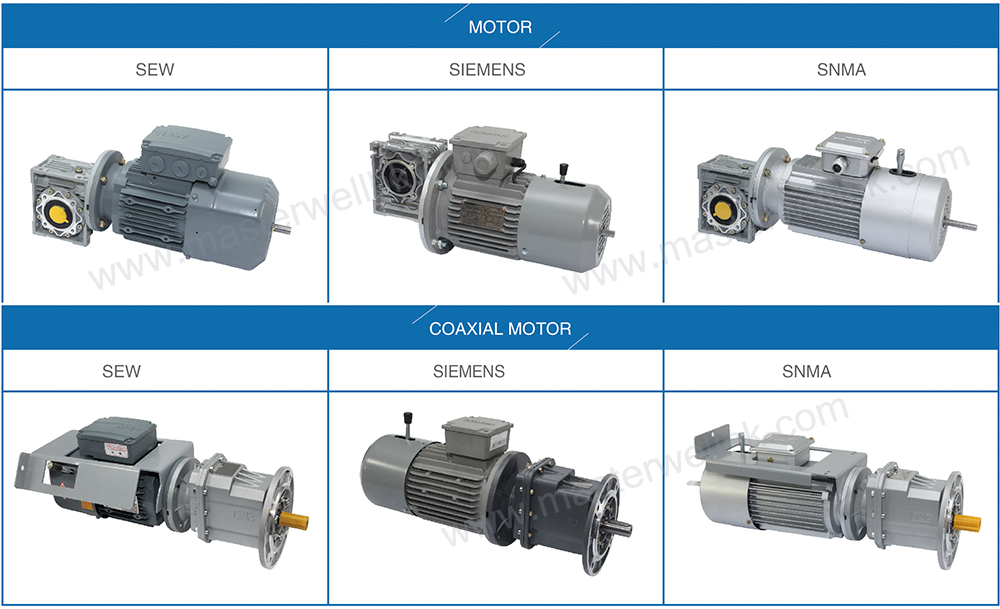

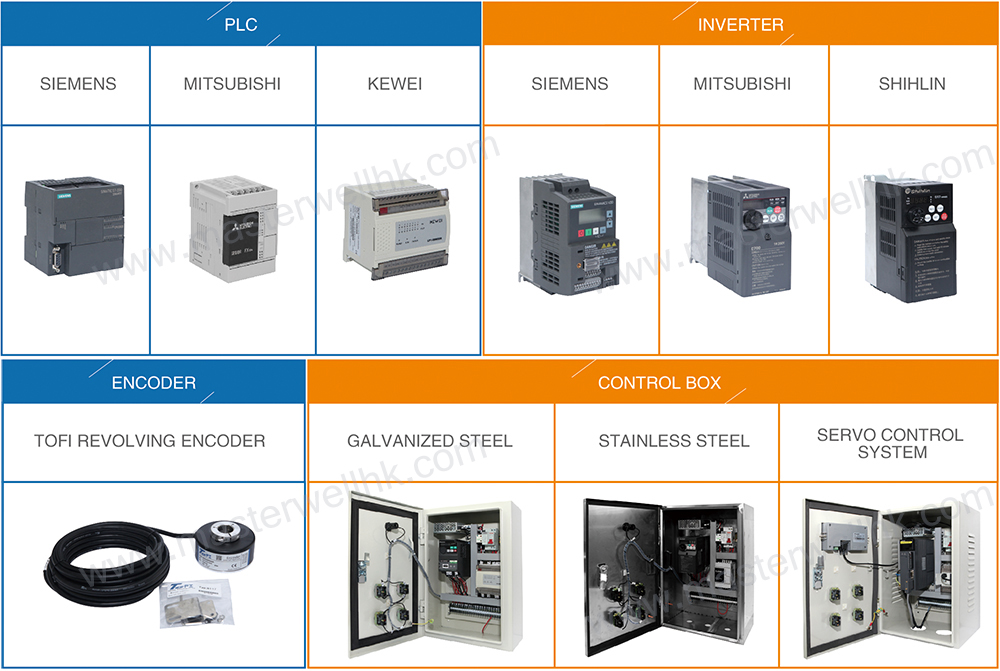

Special Motor Option & Control Parts

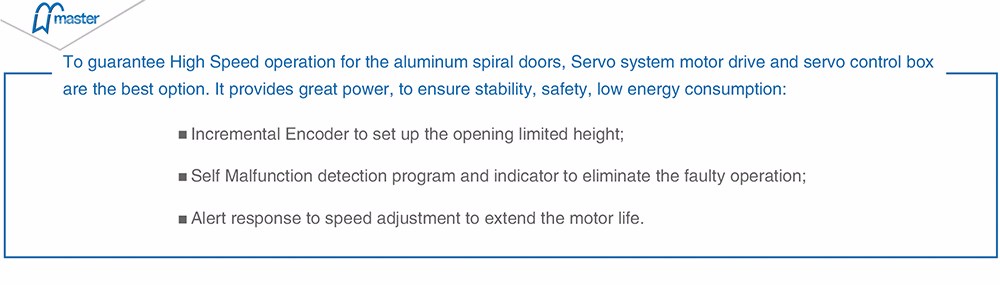

Servo System Motor Drive. Multiple options on motor, control box and safety device.
Packing & Delivery
1. Small quantity: Carton + Winding film + Wooden box
2. The full container quantity (20'GP/40'GP/40'HQ): Carton + Winding film

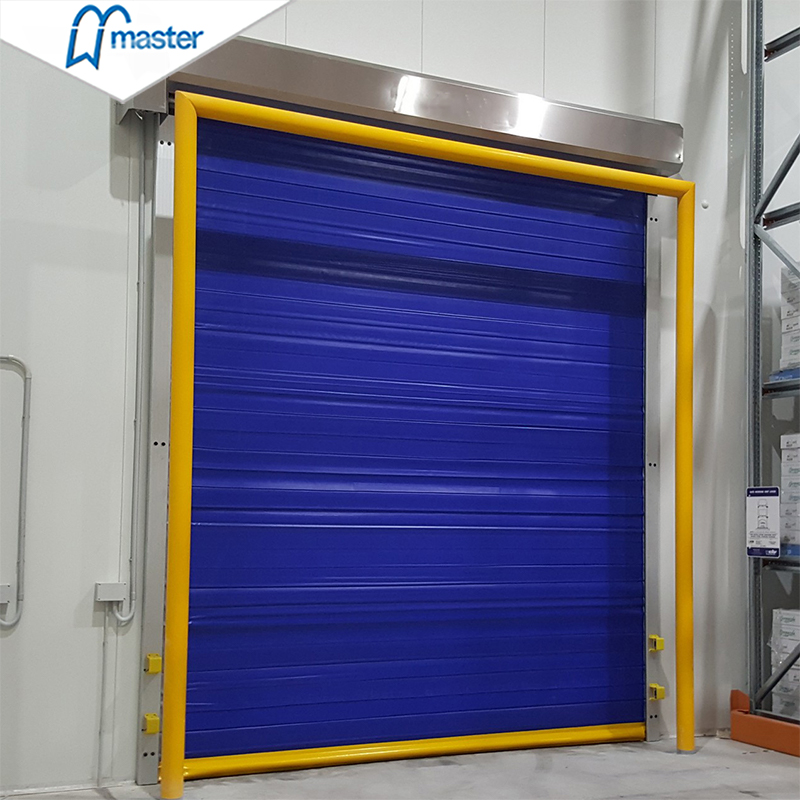

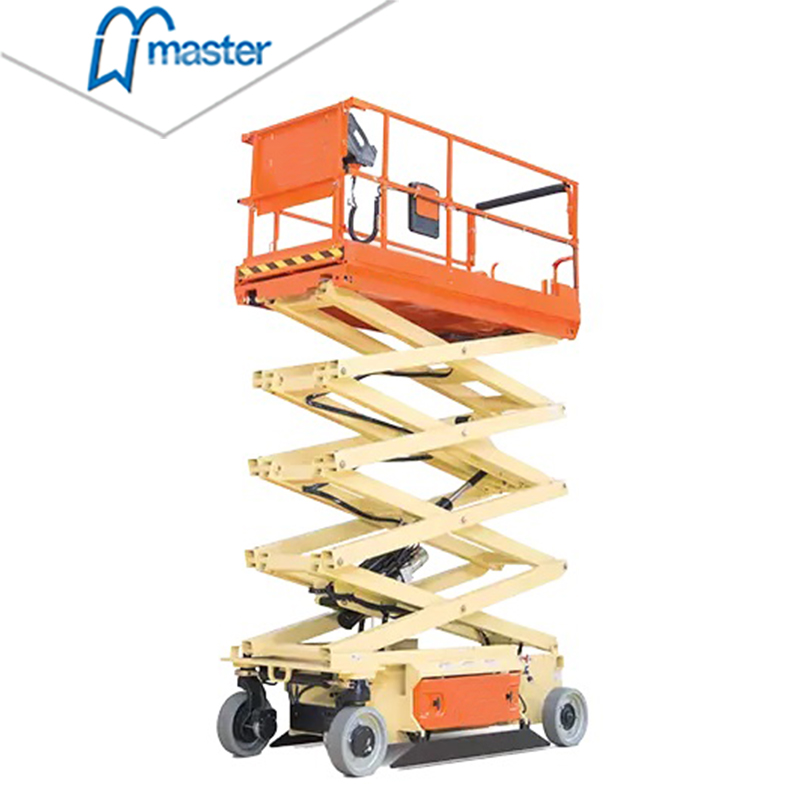

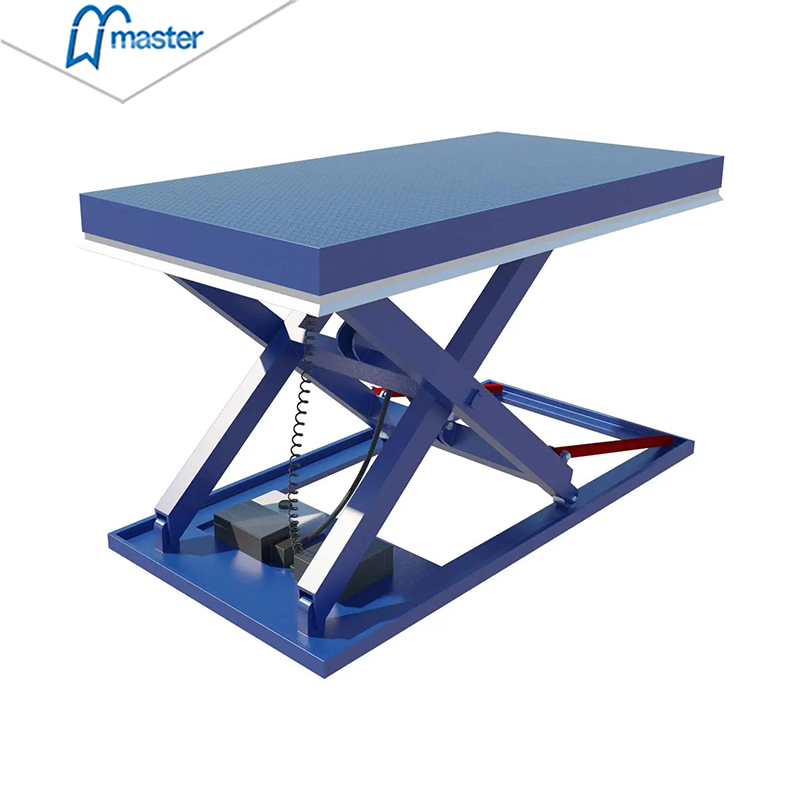

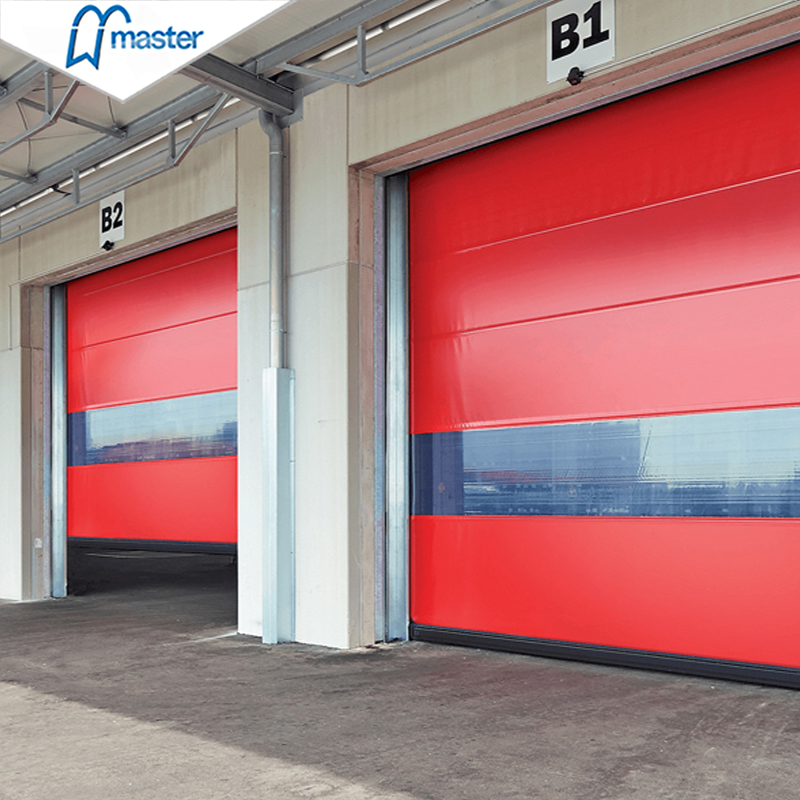

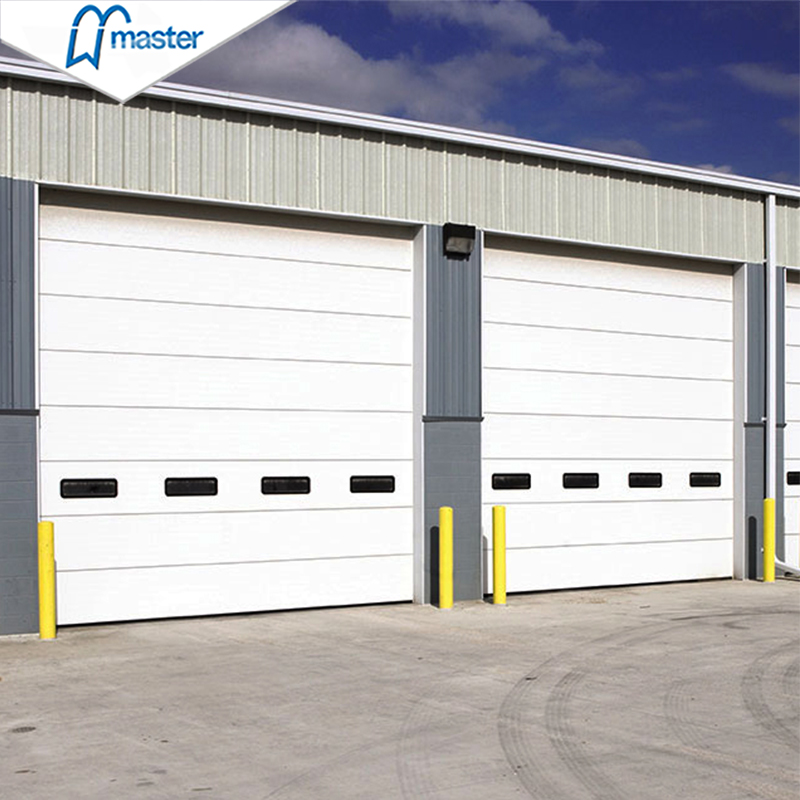

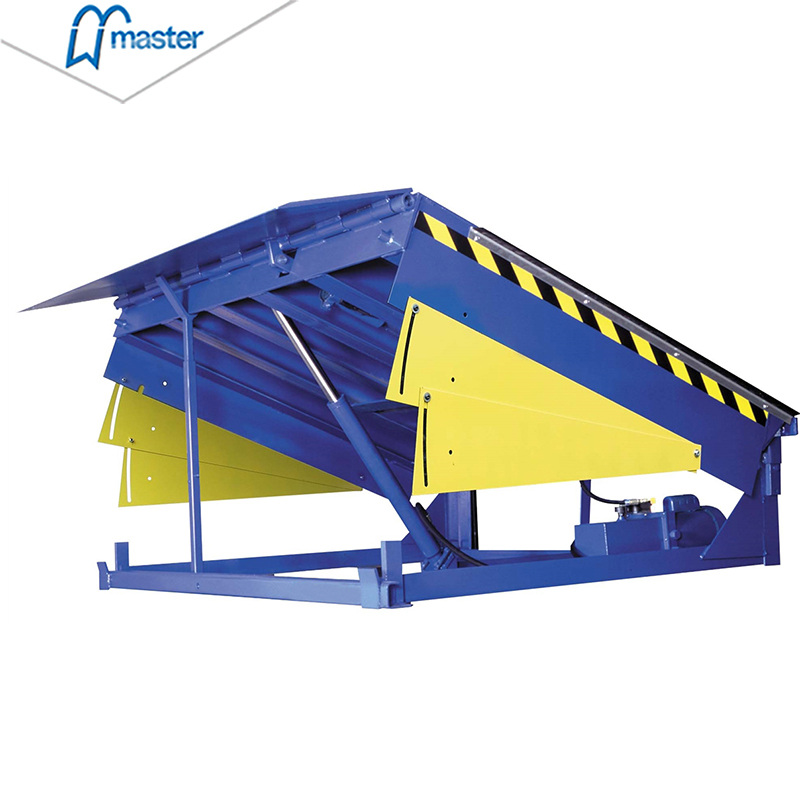

Related Products
Our Company
Relying on our excellent business performance and R&D, we have exported to more than 120 countries and regions. We are now growing up to about 100 people work team, including International Sales Department, Domestic Sales Department, Purchase Department, Financial Department, Human Resource Department and Research and Development. We are always ready to provide the professional service for you.
Our Certifications
Our Show
Frequently Asked Questions
Q1: What is your MOQ?
No min order for high speed door. We also suggest wooden cases package for protection during shipment.
Q2: What is the max available size of the doors?
The max length can be 6.5M. The max width is 6M, adjustable.
Q3: Can you do the full set products according to my project drawing?
Yes, our engineers will check your engineering drawings to ensure the accuracy of each different accessory and quantity.
Q4: Can I get a sample of high speed door for quality check?
Sample is available.
Q5: How to install your product, is it difficult?
Easy to install, just screw, no welding. If you need, installation video can be supplied. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.
Q6: Do you produce other products? Do you also produce accessories?
Yes, we also produce Garage door, Glass aluminum sectional door, Industrial door, Rolling shutter door, Dock leveller, Dock seal, Motor&Gate openers. We produce parts by ourselves in order to control quality and cost.
