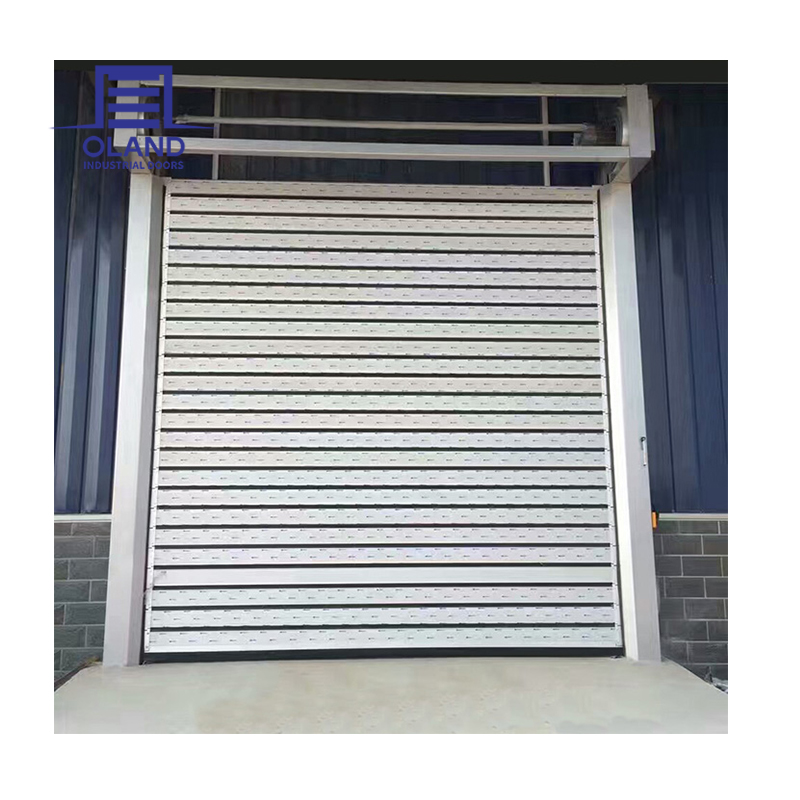

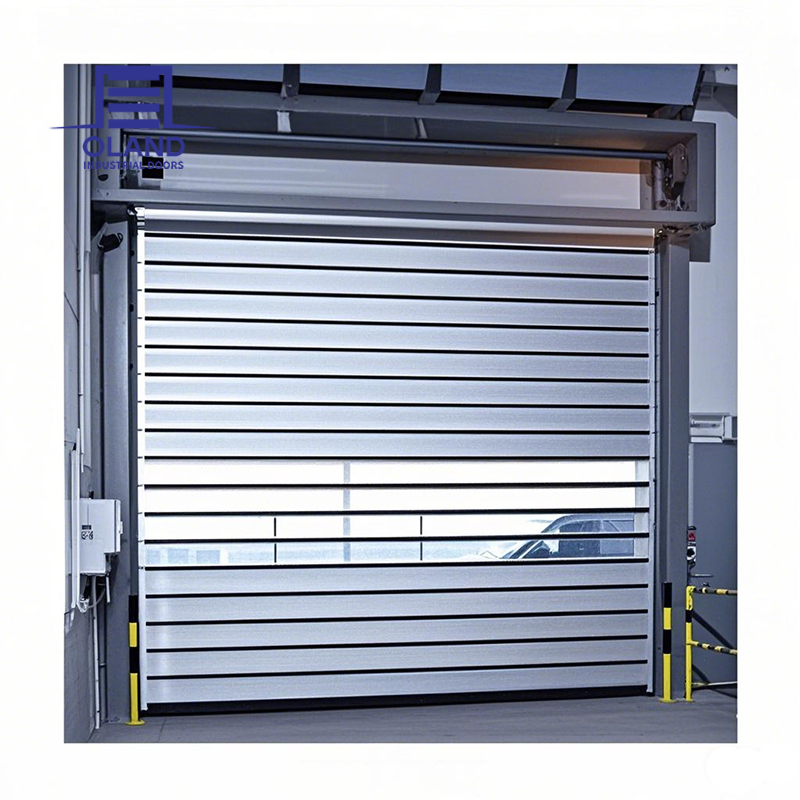

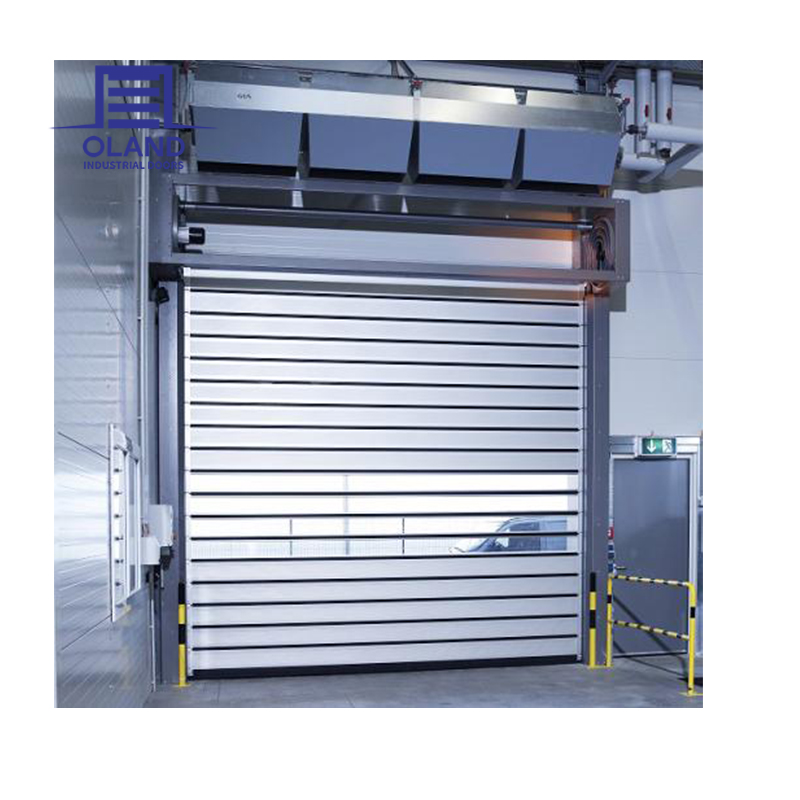

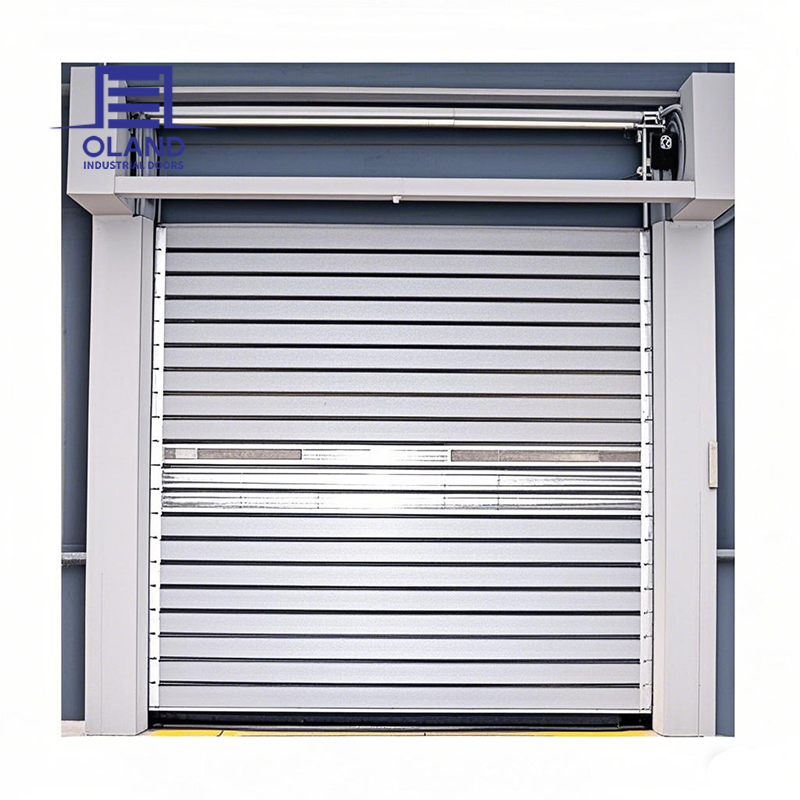

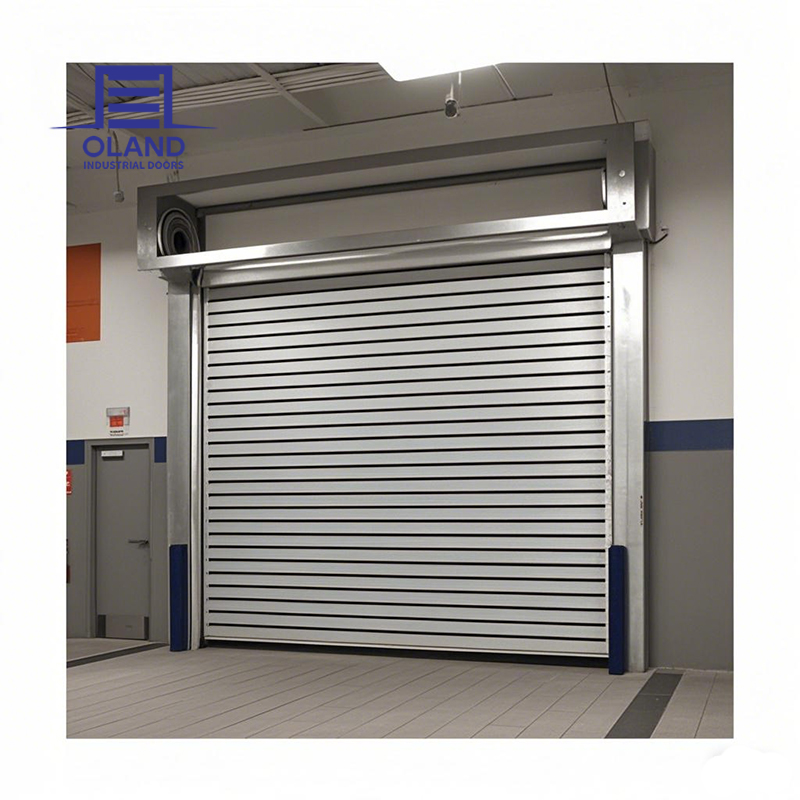

Exterior Hurricane Windproof Energy Saving Hard High Speed Spiral Fast Door Auto Aluminum Rolling Shutter Doors
Product Description
Product Introduction

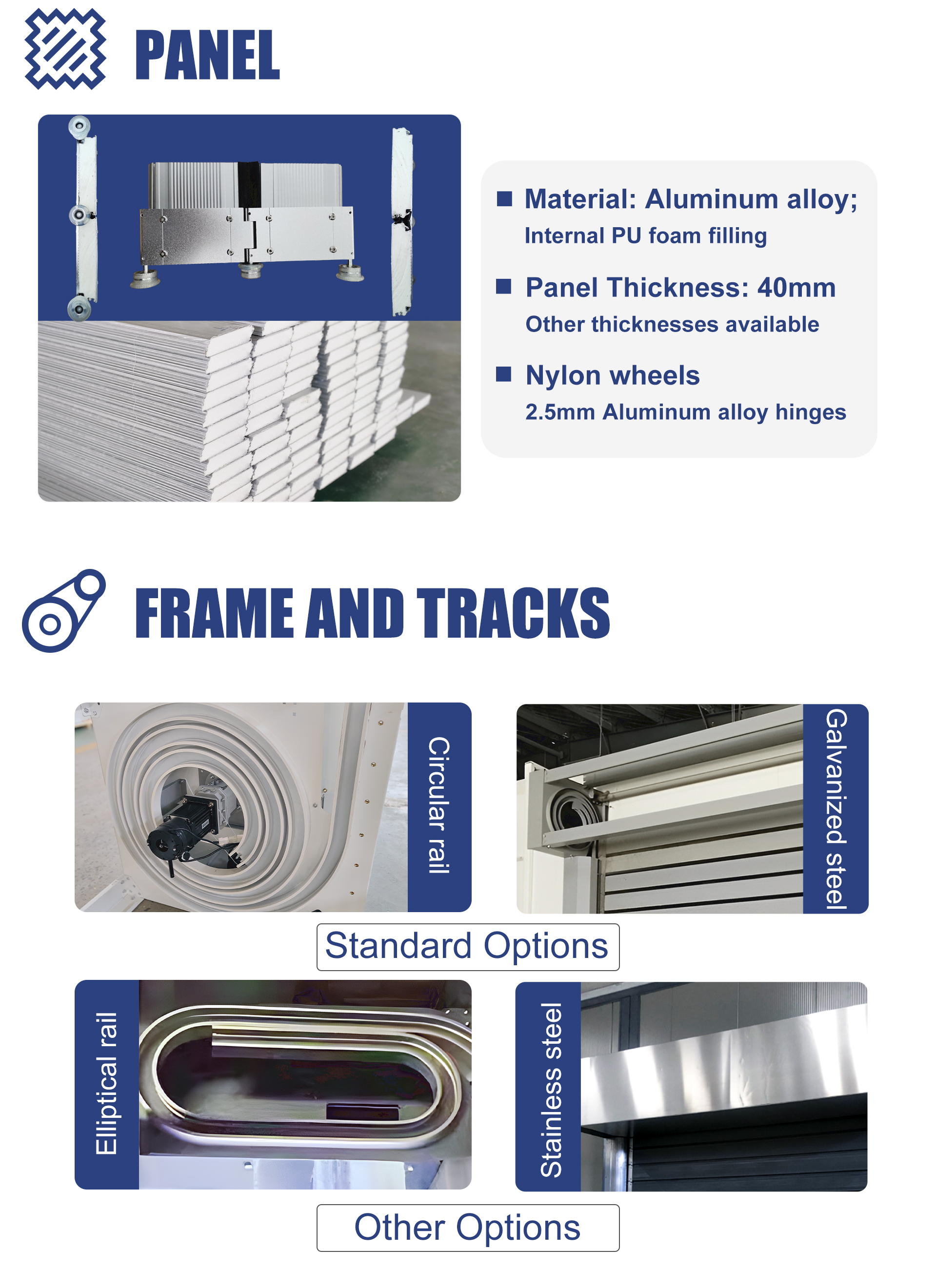

Aluminum alloy spiral high speed door adopts high-strength aluminum alloy door plate, with sturdy structure, beautiful appearance, and multiple properties such as high-speed opening and closing, heat insulation and sound insulation, and wind and dust resistance.
The door body is operated by spiral guide rail system without curtain friction, which improves the operation stability and service life.

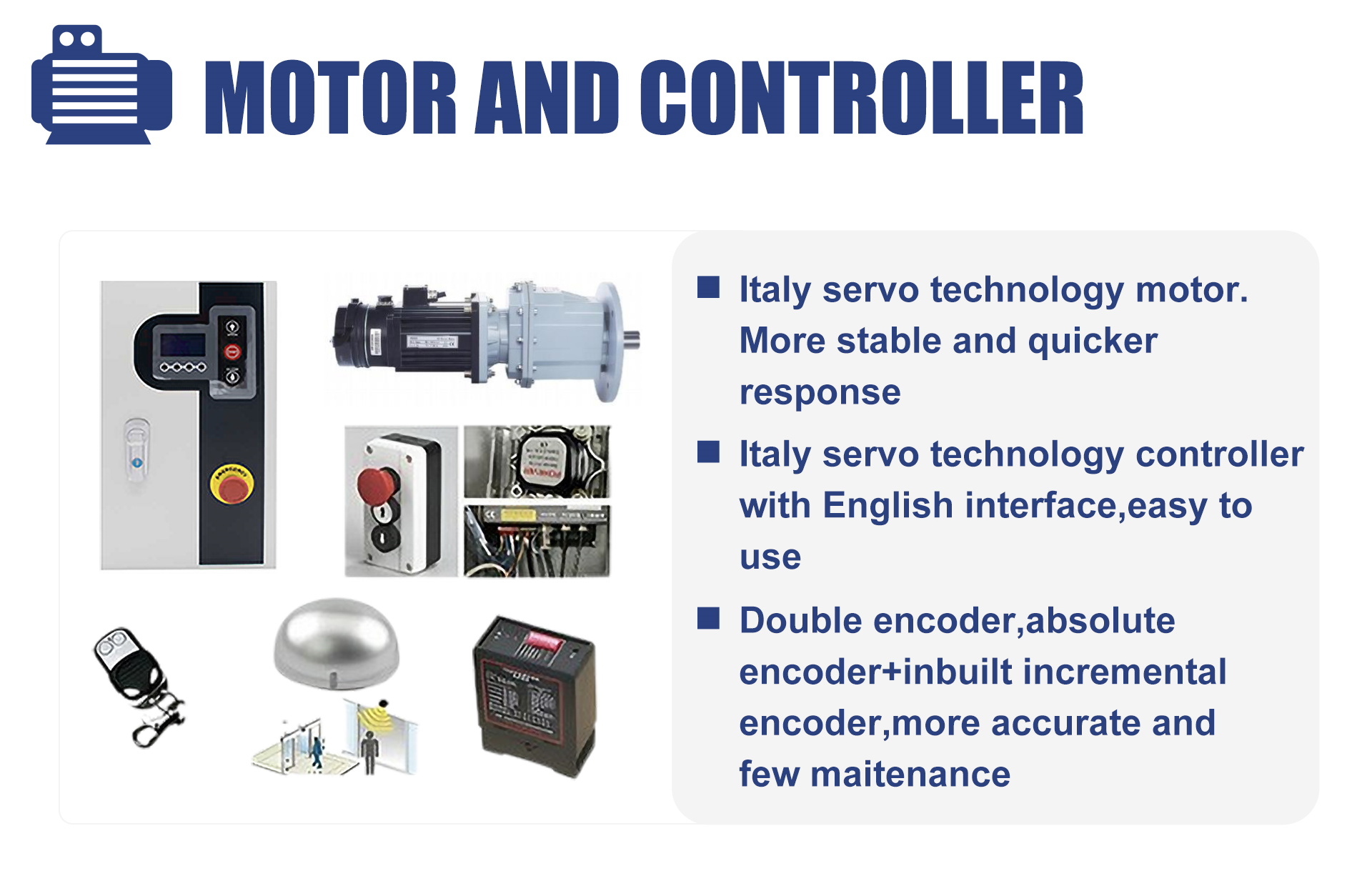

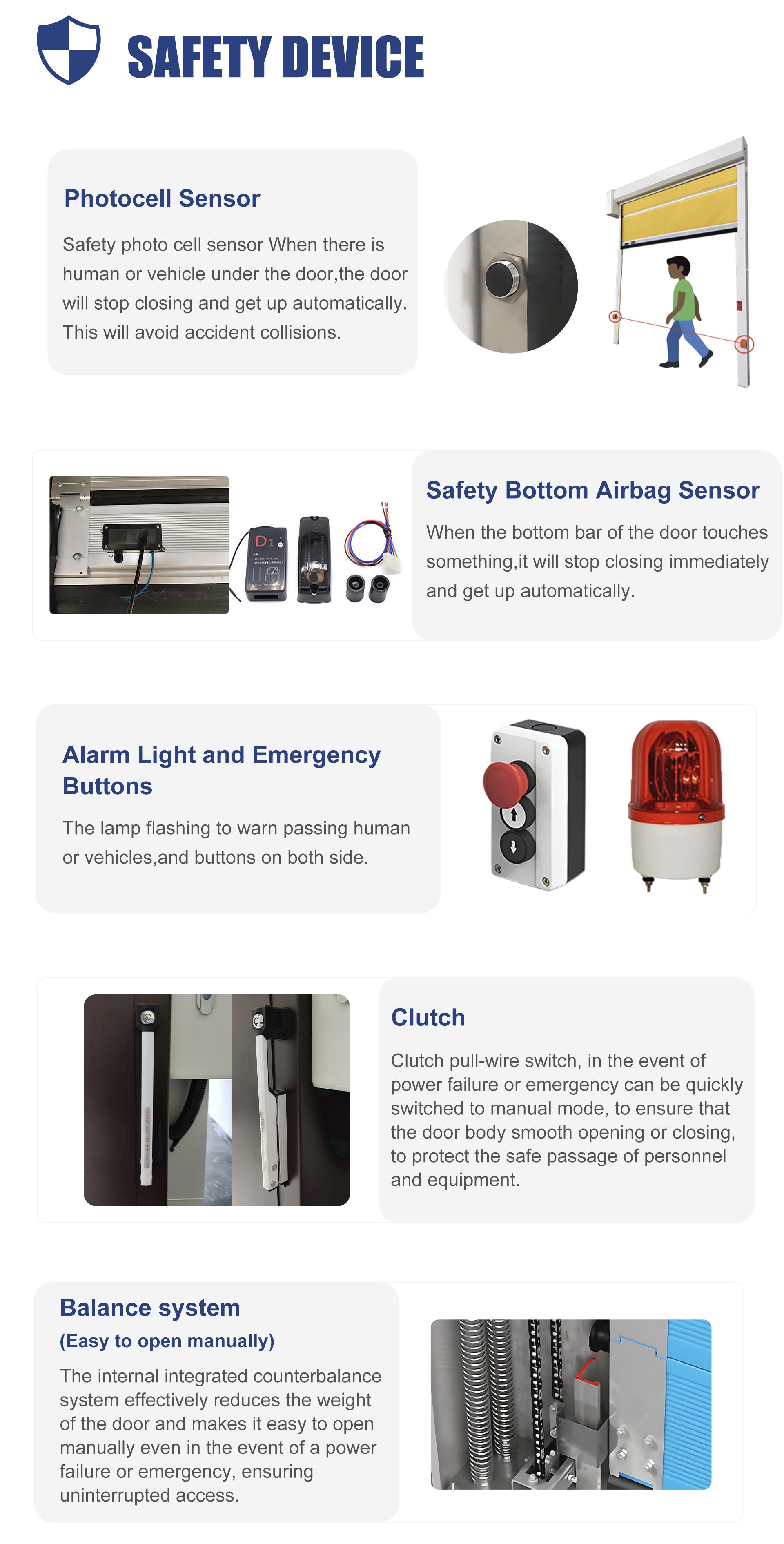

Built-in balancing system and clutch device can be easily opened manually in case of power failure to protect emergency access.
Widely used in logistics and warehousing, intelligent manufacturing, automobile workshop and other industrial places with high requirements for speed and sealing.
Technical Data
| Panel material | Aluminum alloy + PU foam |
| Frame material | Galvanized steel / stainless steel |
| Normal speed | Open 1.2m/s, Close 0.6m/s |
| Max speed | Open 2.0m/s, Close 1.0m/s |
| Maximum size | Width 8000mm * Height 8000mm |
| Power supply | 220±10%V, 50/60Hz. Output power 0.75-1.5KW |
| Protection level of electric | IP55 |
| Wind Resistance | 35m/s (Class 12) |
| Sound insulation level | 25DB |
| Water tightness | 30Pa |
| K Value | 0.4W/m²·K |
| Thermal conductivity | 1.9W/m²·K |
| Color | Grey / blue / white / red, other colors can be customized |

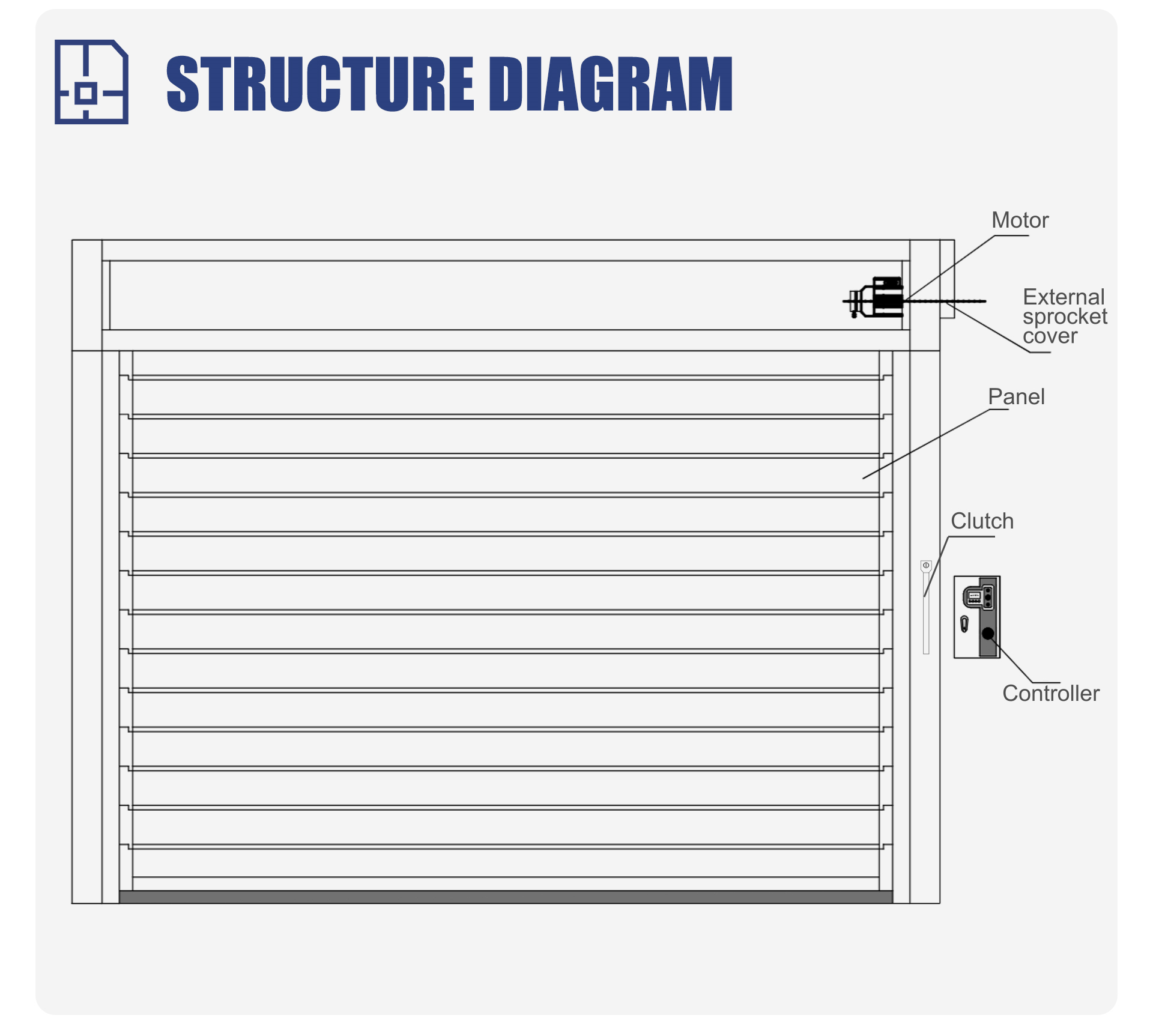

Structure Diagram
OLAND standard version of the aluminum alloy spiral high speed door structure and accessories, if there are other needs please talk to our salesman, can be customized for you.

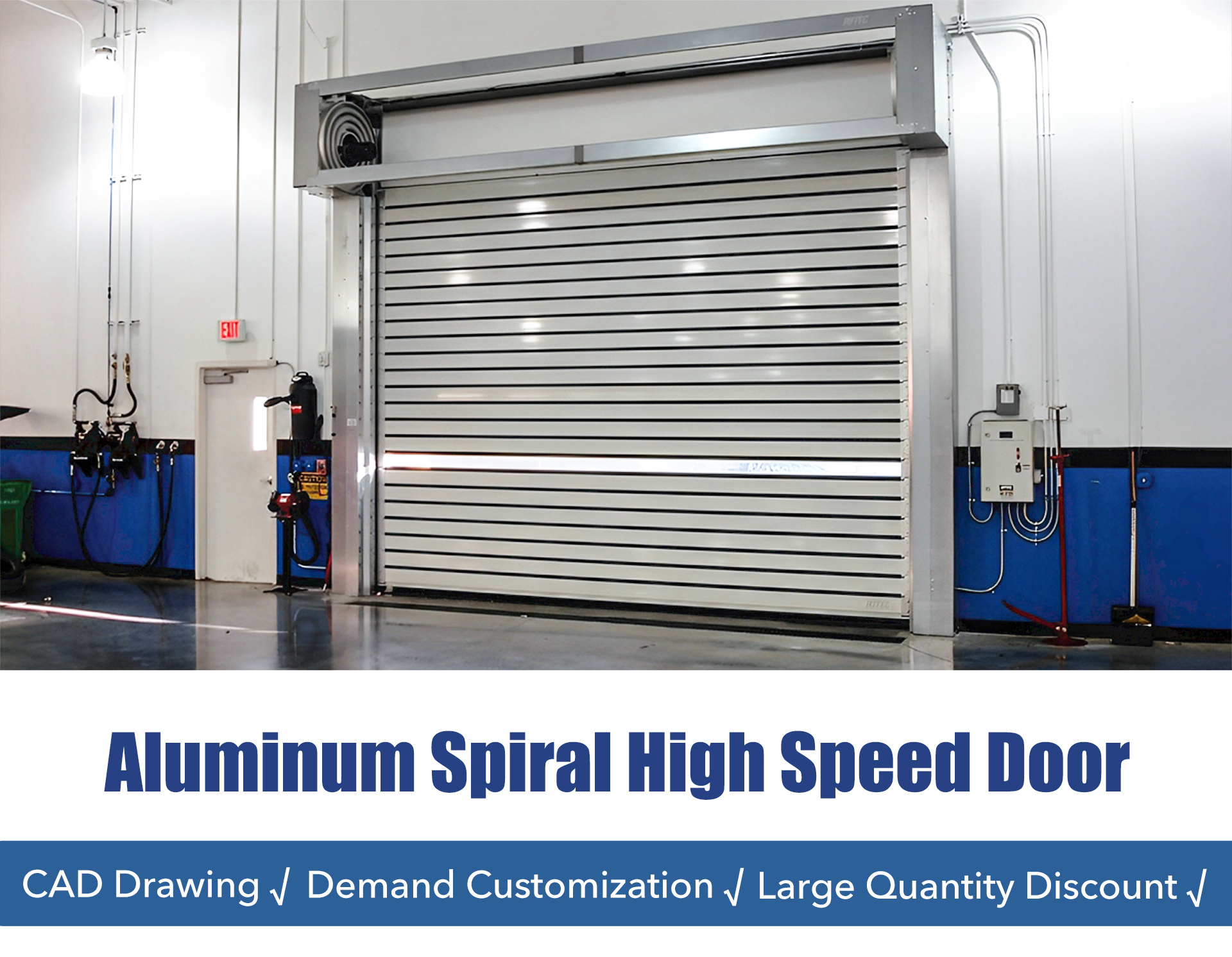

Products Description

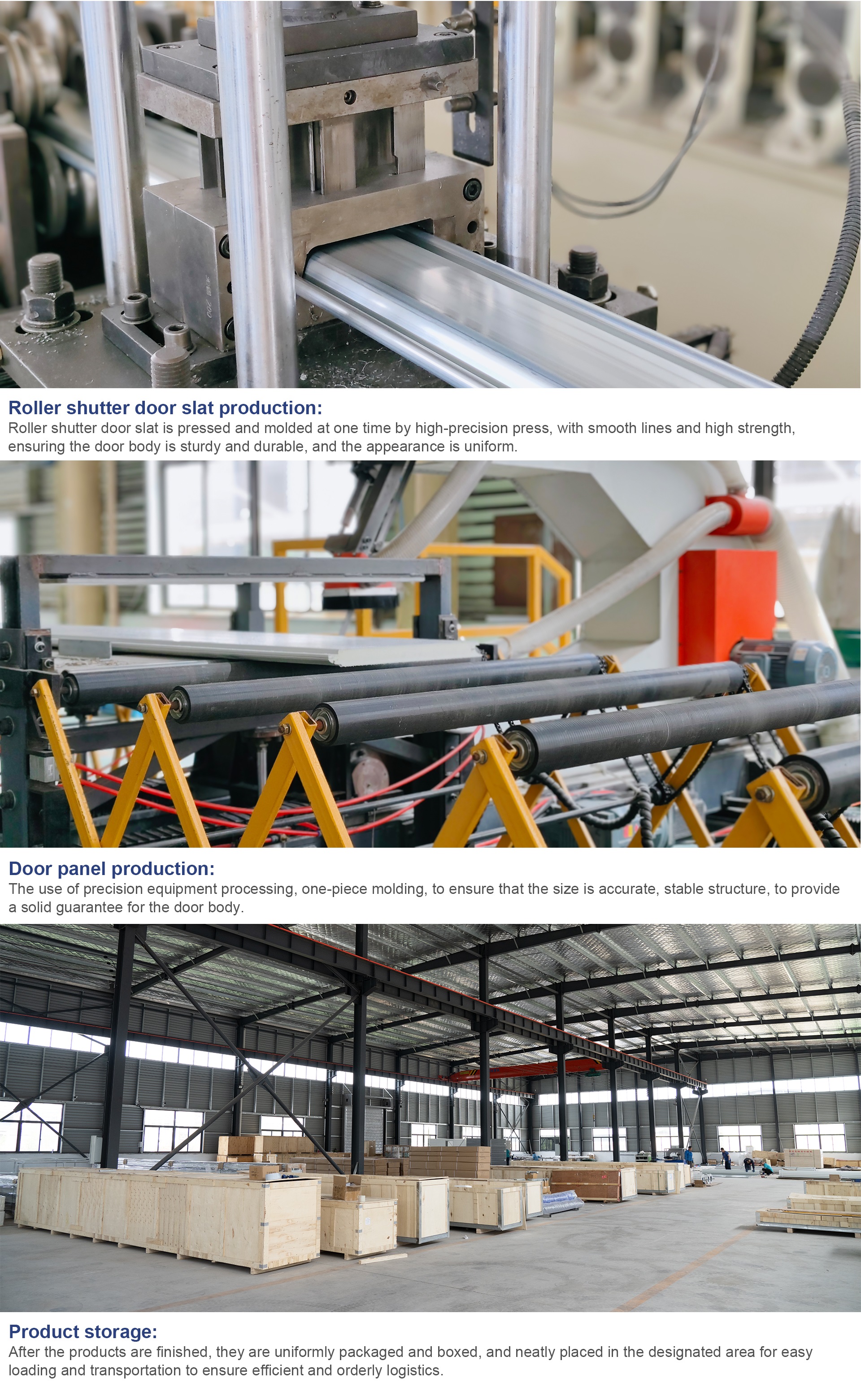

Why Choose Us
Certifications

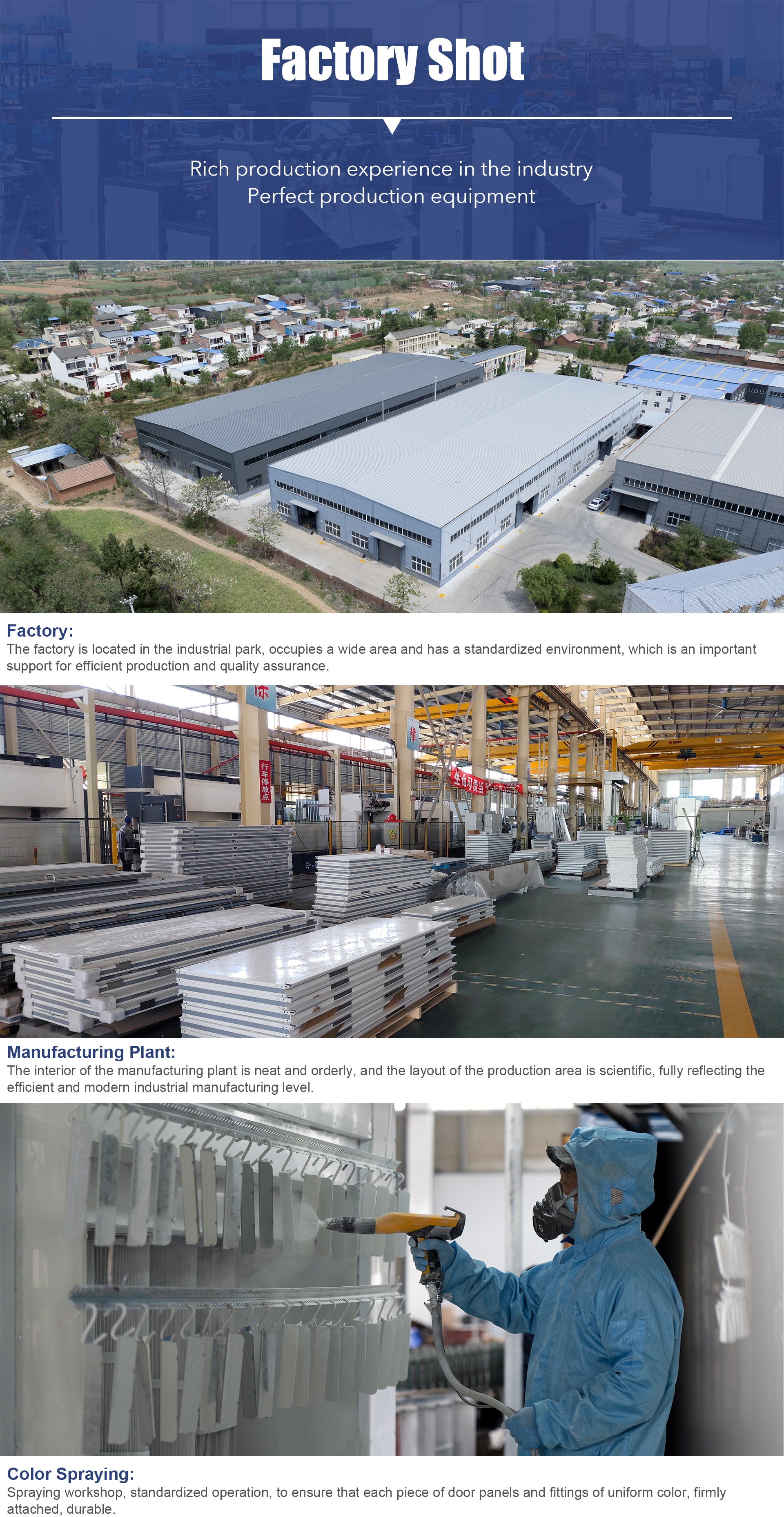

Product Packaging & Shipping
FAQ
QWhat is your MOQ and delivery time?
No limit. We accept orders starting from 1 set. The standard delivery time is approximately 15-30 days.
QWhat packaging and payment terms do you provide?
Our standard packaging is a secure poly-wood box. Usually we accept T/T, LC, Western Union, Credit Card, etc. Other preferred payment terms can be discussed with us.
QHow can I get an exact price quote?
Please provide the exact size and quantity of your required door. We will provide a detailed quotation tailored precisely to your requirements.
QIs it difficult to install your door?
It is easy to install. We provide an operation manual and installation video for your reference. We also offer staff training in our factory or can dispatch an engineer to provide on-site technical support.
QWhat other products do you manufacture and what is your project experience?
We manufacture sectional garage doors, industrial doors, roller shutter doors, high speed doors, and hangar doors. Exporting since 2003, we have cooperated with Low'es and delivered custom doors for airports in Maldives, Mongolia, Nepal, Incheon, Romania, and more.
QHow can we apply to become your local agent?
Please send your cooperation proposal and company profile to us to discuss partnership opportunities.
