In contemporary commercial and high-density residential development, fenestration has evolved beyond simple spatial enclosures. It is now a critical parameter governing thermal envelope performance, acoustic insulation, life-safety structural shear, and architectural identity. As an internationally certified OEM/ODM manufacturing plant based in Foshan, Guangdong, our industrial infrastructure bridges architectural conception with structural execution.

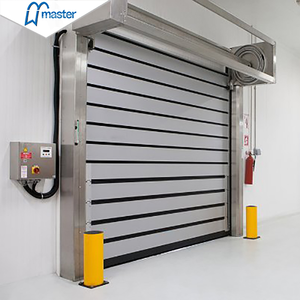

Engineered for cleanroom logistics hubs and industrial warehouse perimeters requiring high cycle rates, airtight thermal sealing, and rapid roll-up automated kinetic drives.
Fully tested under AS2047/AS1288 Australian coastal protocols. Features heavy-duty structural mullions, stainless steel multi-wheel rollers, and multi-cavity drainage sill tracts.
Precision hybrid doors engineered for maximum perimeter defense. Certified fire resistance barrier ratings paired with internal acoustic core dampening materials.
High-grade anti-corrosive Al-Mg alloy frame paired with hermetically sealed double tempered privacy glass. Engineered to prevent moisture intrusion in luxury hospitality suites.
Ultra-narrow sightline horizontal sliding window system designed for mid-to-high-rise residential developments. Features precision CNC engineered magnetic lock tracks.
Minimalist French bi-fold assemblies delivering unbroken visual spans. Built with structural pivot hinges, smooth overhead rolling carriages, and double-laminated glass.
A fusion of classic historic architectural aesthetics and modern thermal efficiency. Uses internal argon-filled Low-E glass units and counterbalanced sash mechanisms.
Commercial-scale architectural pivot entrances capable of spanning spans up to 4.5m in height. Engineered with hydraulic German floor-springs and biometric locking hardware.
OEM/ODM manufacturing requires strict structural consistency. Below are the engineering standards integrated across our Foshan extrusion, thermal break, and coating lines.
We work with prime 6063-T5/T6 and 6061-T6 metallurgical extrusions. Wall thicknesses range from 1.6mm up to 3.5mm on structural frames, guaranteeing deflection compliance under extreme positive and negative wind pressures (exceeding AS2047 N6 limits).
Our insulated fenestration profiles employ PA66-GF25 (polyamide 6.6 reinforced with 25% glass fiber) continuous thermal strips. This limits heat conductivity between outer and inner envelopes, reaching thermal transmission values down to U ≤ 1.3 W/(m²·K).
Finishes include AAMA 2605-compliant PVDF coatings, AkzoNobel powder coatings, and heavy-layer architectural anodization (25μm). These finishes resist high UV levels, aggressive saline marine air, and sand abrasion in coastal environments.
Data and market patterns show that commercial and residential developers are shifting their procurement strategies toward three core engineering metrics:
European and North American developers increasingly mandate low-carbon aluminum profiles smelted via renewable hydropower. Procurement specifications now directly evaluate Environmental Product Declarations (EPD) and Lifecycle Assessments (LCA), penalizing high-emission supply chains.
Mechanical keys are giving way to integrated concealed electronics. Architectural pivot and sliding systems are now expected to ship with factory-routed wiring harnesses for facial recognition, motorized multi-point latches, and automated building management systems (BMS).
Architects demand broader, seamless views. The procurement trend favors ultra-narrow stiles (less than 20mm) that maintain high structural resistance through reinforced internal steel stiffeners and structurally bonded structural silicone glazing (SSG).
Supported by our 180,000 ㎡ manufacturing center in Foshan, Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) provides global developers with verified manufacturing capabilities.
From aluminum billet casting, precision extrusion, thermal bridging, and powder coating down to final hardware installation and export pallet assembly.
Working directly with the manufacturer removes intermediary costs, providing clear BOM cost accounting that helps project bids remain competitive.
Our in-house team of 40+ CAD/BIM structural engineers creates precise shop fabrication drawings, wind load calculations, and glazing schedules at zero cost.
Reinforced fumigated solid plywood crating with individual polyethylene wrapping prevents damage across lengthy transoceanic journeys.
Key technical, compliance, and logistical clarifications for global sourcing agents and contractors.
For standard architectural catalogue profiles, our production MOQ starts at 50 m². For bespoke OEM custom die extrusions, the threshold is typically 500 kg per section, with custom tooling produced within 10 to 14 days and full sample extrusion runs ready within 5 days thereafter.
Our fenestration assemblies undergo batch testing inside our factory test facility, covering static air infiltration (ASTM E283), cyclic water penetration (ASTM E331), and dynamic structural wind load testing up to N6 ratings. Complete third-party test reports are supplied directly for local municipal permitting.
For installations within 3 kilometers of a coastline, we specify fluorocarbon PVDF finishes with a minimum three-coat 70% Kynar 500 formulation, or Qualicoat Class 2/3 powder coatings. We also integrate Marine-Grade 316 stainless steel hinges, rollers, and lock cases to prevent galvanic corrosion.
Yes. Our oversized architectural pivot doors can handle single-sash dimensions up to 3000mm in width and 5000mm in height, with total sash weights reaching 600kg. Frames feature internal electrical routing channels that seamlessly interface with smart-home biometric locks.
Send us your door schedules, architectural elevations, or structural profile requirements. Our dedicated bilingual fenestration engineering group will return full structural shop drawings and detailed CIF/FOB pricing within 24 hours.
