Superhouse Villa Hurricane Impact Resistant Modern Sliding Doors
Heavy-duty structural interlocks engineered for coastal high-velocity storm zones. Features double-glazed PVB lamination and concealed drainage.
180,000 ㎡
Smart Production Base
N6 / DP70+
Max Cyclone Air & Wind Rating
AS2047 · CE · NFRC
Full International Compliance
50+ Countries
Global Ocean Export Reach
Engineered Product Portfolios
Featured Aluminium Double Glazed Door Assemblies
Direct factory configurations manufactured with certified 6063-T5/T6 structural alloys, multi-chambered polyamide thermal breaks, and premium multi-point safety mechanisms.
DERCHI Light Single Door Wrought Iron Modern Luxury French Door
Minimalist architectural profile with high-security multi-point locks, insulated double glazing, and custom fluorocarbon powder coatings.

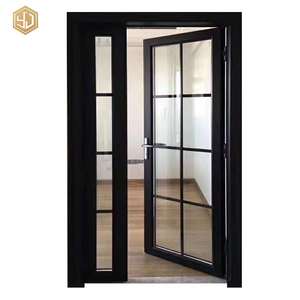

French Style Aluminum Alloy Casement Doors One and Half Door
Asymmetric opening configuration optimal for executive balconies and kitchens. Integrated acoustic EPDM seals and high thermal insulation.
Hurricane Proof Folding Door Tempered Double Glass Bi-fold Accordion
Panoramic multi-panel folding door system equipped with heavy-duty top and bottom rollers capable of sustaining expansive glass wall openings.
Modern Aluminum Sliding Bifold Doors Double Glazing German Hardware
Engineered with Kerssenberg German hardware precision. Provides smooth thermal-broken glides with exceptional water tightness and draft sealing.

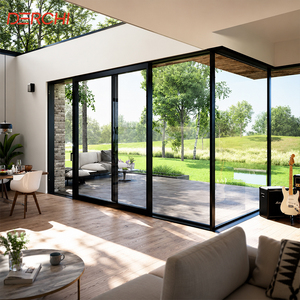

AS2047 Double Glazed Stacker Panoramic Patio Sliding Doors
Certified for rigorous Australian standards. Stacking track setup allows massive open span apertures with low-E argon-filled acoustic glazing.
AMJ NFRC Double Hung Fenestration With Decorative Grilles
Colonial architectural aesthetics paired with advanced double-hung balancing hardware. Matches luxury villa door fenestration packages.
Precision 45-Degree Corner Joinery Auxiliary Fabrication Unit
Industrial manufacturing accuracy ensures hermetic corner joints, eliminating thermal bridging and capillary water intrusion on export doors.
Technical Specification & Authority
Engineering Principles of High-Performance Double Glazing
In modern architectural fenestration, specifying an OEM/ODM aluminium double glazed door requires balancing structural deflection thresholds, overall heat transfer coefficients (U-values), solar heat gain coefficients (SHGC), and air infiltration control. Commercial developers and residential specifiers demand systems that meet the rigorous structural demands of hurricane-prone zones while fulfilling sustainable building mandates such as LEED, BREEAM, and Green Star.
Key Engineering Standard: Thermal efficiency in exterior aluminium doors depends on continuous structural polyamide (PA66 GF25) thermal breaks that decouple interior and exterior profile faces, preventing conductive heat energy loss.
Cross-Sectional Architecture & Glass Assemblies
A typical high-performance double-glazed door consists of two tempered or laminated glass panes separated by an airtight warm-edge spacer bar (typically filled with synthetic molecular sieve desiccant). The hermetically sealed cavity is charged with dry air or 90%+ pure Argon gas. This configuration dramatically suppresses heat conduction and convective loops within the glazing packet.
| System Parameter | Standard Commercial Grade | DERCHI Engineered System | Compliance Test Standard |
|---|---|---|---|
| Aluminium Alloy / Temper | 6063-T5 Structural | Primary Billet 6063-T6 / 6061-T6 High Tensile | ASTM B221 / GB 5237 |
| Profile Wall Thickness | 1.4 mm – 1.6 mm | 2.0 mm – 3.0 mm Reinforced Heavy-Duty | AS2047 / AAMA 101 |
| Insulated Glass Unit (IGU) | 5mm + 9A + 5mm Air Filled | 6mm Low-E + 12Ar/16Ar + 6mm Toughened / Laminated | IGCC / EN 1279 / AS 1288 |
| Thermal Conductivity (U-Value) | 3.2 – 3.8 W/m²·K | 1.4 – 2.0 W/m²·K (Polyamide Barrier PA66) | NFRC 100 / ISO 10077-2 |
| Acoustic Attenuation | Rw 28 – 30 dB | Rw 38 – 45 dB (Acoustic Interlayer PVB) | ASTM E90 / ISO 717-1 |
| Wind Load Resistance | 1500 Pa (Serviceability) | Up to 4500 Pa – 5000 Pa (Severe Cyclone N6) | AS 4055 / ASTM E330 |
Additionally, exterior finishes must withstand harsh environmental degradation. High-durability coatings—such as AkzoNobel fluorocarbon (PVDF) 3-coat spraying and Qualicoat-certified marine-grade architectural powder coatings—ensure zero chalking, blistering, or delamination even in salt-laden coastal conditions.
Strategic Sourcing Analysis
Product Future Procurement Trends
Market dynamics shift procurement from standard catalog sourcing toward engineered-to-order manufacturing and integrated project lifecycle governance.
Full Supply Chain Digitalization & BIM Integration
Architects and tier-one general contractors increasingly mandate direct Building Information Modeling (BIM) asset integration. Future procurement requires OEM partners to supply parametric Revit and IFC assets with embedded thermal and deflection data, enabling digital simulations prior to factory extrusion.
Regional Code Compliance & PVoC Verification
Import authorities across North America, Australasia, and emerging infrastructure markets in Africa (such as SONCAP in Nigeria and KEBS in Kenya) enforce strict non-tariff conformity checks. Importers are bypassing trading brokers to contract directly with accredited manufacturers capable of providing independent batch test certificates.
Consolidated High-Mix Logistics Packaging
Rising global ocean container tariffs drive demand for container volume optimization. B2B buyers consolidate heavy structural pivot doors, bi-fold doors, sliding patio screens, and complementary interior fenestration into single custom shipping runs, reinforced with individual shock-resistant steel and plywood packaging.
Innovation Trajectory
Product Development & Engineering Horizons
Emerging metallurgical, optical, and mechatronic advancements shaping the next generation of architectural fenestration.
Ultra-Slim Sightline Frameworks
Advancements in high-tensile 6061 alloy extrusions allow structural profile sightlines under 25 mm, providing expansive, floor-to-ceiling panoramic glass walls capable of carrying single sash loads exceeding 400 kg.
Vacuum-Insulated Hybrid Glass (VIG)
Next-generation double glazing is adopting thin vacuum glass technology within multi-chamber frames, achieving center-of-glass U-values as low as 0.4 W/m²·K without increasing overall structural sash weight.
Smart Access Mechatronic Hardware
Concealed automated sliding drives, motorized multipoint lock mortises, and biometric or dry-contact building management system (BMS) integration are becoming standard requirements for high-end developments.
Low-Carbon Recycled Metallurgy
Global environmental mandates are driving the adoption of certified low-carbon circular aluminium billet produced via hydroelectric smelting, providing audited Environmental Product Declarations (EPDs).
180,000 ㎡ Manufacturing Facility · Foshan, Guangdong
Enterprise Manufacturing Authority
Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI)
Ranked among the elite Top 10 premium door and window manufacturers in China, DERCHI has delivered more than 25 years of engineering innovation in high-grade architectural fenestration, severe-weather entryways, heavy pivot systems, and glazed curtain wall solutions.
Our massive 180,000 ㎡ production ecosystem utilizes fully automated German cutting centers, digital machining equipment, and robotic silicone application units. With more than 600 skilled technicians and 100+ appearance and structural utility patents, we offer direct manufacturing accountability for enterprise clients, real estate developers, and international facade contractors.
CE Certified
ISO9001 Quality System
AS2047 Australian Test Pass
UL Fire-Rated Listings
Procurement Knowledge Base
Frequently Asked B2B Procurement Questions
Direct technical, contractual, and logistics answers for commercial importers, builders, and quantity surveyors.
What are the structural load and water tightness advantages of aluminium double glazed doors?
Compared to single-pane or standard uPVC profiles, thermally broken aluminium doors offer superior moment of inertia (Ix/Iy) values, preventing structural frame twisting under severe wind loads (certified up to AS2047 N6 and ASTM standards). Double glazing with dual EPDM gasket barriers and stepped sub-sills delivers air tightness ratings below 0.1 m³/(h·m) and watertightness up to 600 Pa, stopping water ingress during driving rain and cyclone conditions.
How do you accommodate custom OEM/ODM architectural requirements and shop drawings?
Our engineering team develops complete CAD and 3D shop drawings based on your schedule, site rough openings, wind-load calculations, and egress codes. We accommodate custom structural extrusion dies, unique hardware integrations (such as German Kerssenberg, Siegenia, or Hoppe), customized muntin bars, and specialized glass combinations (including Low-E, acoustic PVB laminates, or privacy PDLC smart glass). Production starts only after you sign off on final drawings.
Which surface treatment is recommended for coastal regions (e.g., Lagos, Durban, Miami)?
For coastal installations exposed to salt-air corrosion, we recommend Qualicoat Seaside-class architectural powder coating or a 3-coat 70% Kynar 500 / Hylar 5000 PVDF fluorocarbon finish, paired with Grade 316 stainless steel hinges, screws, and lock mechanisms. This finish package passes 3,000-to-5,000-hour neutral salt spray (NSS) testing without blistering, chalking, or substrate pitting.
What are standard factory production lead times and ocean shipping protocols?
Standard OEM production spans 25 to 35 business days following drawing sign-off and deposit receipt. We pack each door with protective peel-off film, high-density foam corner protectors, waterproof PE wrap, and fully enclosed fumigated wooden crates or steel A-frame racks. We ship FOB China or CIF to major global commercial ports (e.g., Lagos Apapa, Mombasa, Tema, Durban, Sydney, Long Beach, Felixstowe).
How do you verify batch quality and air/water performance prior to dispatch?
Every production batch undergoes a 100% pre-assembly quality check on our calibration test stands. Our quality team verifies corner miter accuracy, diagonal squareness tolerance (within ±1.5 mm), sash glide resistance, locking engagement smoothness, and glass perimeter sealant adhesion. Batch reports, photo logs, and video inspection recordings are supplied to the buyer prior to container stuffing.
Start Your OEM/ODM Architectural Glazing Project
Send your project schedule, rough opening sizes, or CAD drawings to our engineering team. We supply full system specifications, thermal performance ratings, and direct factory container pricing within 24 hours.
