Engineered Aluminum Roll Up Door Portfolio
Tested rigorously under international conformity directives including EN 13241-1, AS2047, and ISO 9001 frameworks. Every system is made-to-measure for extreme durability and smooth motorized operation.
180,000㎡
Modern Production Hub
600+
Skilled Technicians
100+
Patents & Global Certs
25+
Years Engineering Legacy
Engineering White Paper: Material Selection & Global Standards
A technical evaluation framework designed for structural engineers, procurement managers, and commercial real estate developers.
Structural Integrity via 6063-T5 / 6061-T6 Extrusions
Aluminum roll up doors represent the benchmark for facilities demanding low-maintenance corrosion immunity paired with structural rigidity. Utilizing aerospace-grade 6063-T5 aluminum alloy extrusions allows our interlocking slats to provide high strength-to-weight ratios, ensuring exceptional wind-load resistance without overburdening motorized torsion spring assemblies.
Dynamic Wind Load Resistance
In accordance with EN 12424 standards, our reinforced double-wall hollow and foam-filled slats achieve up to Class 4 and Class 5 wind resistance ratings, capable of withstanding typhoon and hurricane gale-force pressures exceeding 120 km/h in coastal settings.
Thermal Break & Acoustic Barrier
Our insulated warehouse shutter range integrates high-density CFC-free polyurethane (PU) core matrices sandwiched between thick alloy skins, delivering remarkable thermal conductance U-values down to 1.4 W/m²K and acoustic damping exceeding 22 dB.
Certified Safety Fall-Back Protection
Fully compliant with CE machine safety standards, all automated roll up mechanisms feature integrated safety brakes (anti-drop parachute systems), optical safety edge sensors, and emergency manual release override drives to guarantee worker and vehicle protection.
Technical Specifications Matrix Across Applications
Direct parametric comparisons across our high-performance architectural and industrial roll up product tiers.
| System Classification | Base Material & Profile | Surface Treatment | Max Span Capability | Acoustic / Thermal Rating | Primary Application Target |
|---|---|---|---|---|---|
| Full-Vision Glass Series | 6063-T5 Aluminum + Polycarbonate / Safety Tempered Glazing | Fluorocarbon PVDF / Anodized Architectural Finishes | Up to 6500 mm Wide | R_w = 24 dB / U = 2.8 W/m²K | Automotive Dealerships, Fire Stations, Luxury Villas |
| Industrial Insulated Thermo-Roll | Double-skinned Aluminum with 45kg/m³ Polyurethane Foam | Polyester Powder Coating (Qualicoat Class 1 & 2) | Up to 11000 mm Wide | R_w = 22 dB / U = 1.4 W/m²K | Cold Chain Logistics, Industrial Warehouses, Distribution Hubs |
| Heavy-Duty Hurricane Storm Shutter | Extruded High-Tensile Structural Alloy with Reinforced Endlocks | Electrophoresis / Ultra-Durable Exterior Powder Coat | Up to 7000 mm Wide | Wind Pressure Class 5 (EN 12424) | Coastal Developments, High-Security Storerooms, Tropical Enclaves |

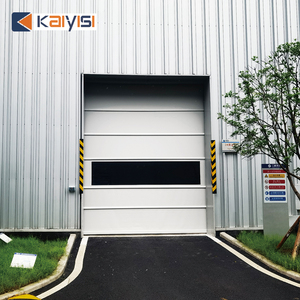

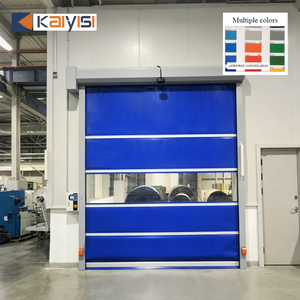

| High-Speed Rapid Spiral Curtain | Flexible Reinforced Polymers with Integrated Aluminum Wind Ribs | Anti-Static UV-Resistant Polyvinyl Chloride Cladding | Up to 6000 mm Wide | Cycle Life > 1,000,000 cycles | Cleanrooms, Pharmaceutical Facilities, High-Frequency Loading Docks |
Future Sourcing & Architectural Industry Trends (2025–2030)
How the convergence of building automation, environmental compliance, and lean logistics is transforming the rolling shutter landscape.
Low-Carbon Recycled Aluminum
Global architectural specifications increasingly require documented EPDs (Environmental Product Declarations). Modern procurement is transitioning towards billets refined with scrap circularity and hydropower smelters, reducing embedded carbon by over 60% without compromising tensile yield strength.
BIM Integration & Real-Time Diagnostics
Architects require parametric BIM objects (.rvt, .ifc) during schematic design phases. Concurrently, factory-installed smart control boards featuring Modbus, BACnet, and IoT telemetry empower remote cycle tracking, preventive wear notifications, and seamless BMS automation.
Modular Consolidation Logistics
To hedge escalating ocean transit tariffs, tier-1 EPC contractors and regional distributors prefer consolidated one-stop manufacturing partners capable of crating entry doors, rapid shutters, and architectural curtain façades into standardized 40ft High Cube containers.
Factory Direct Manufacturing Prowess: Why Global Importers Rely on Us
Backed by over two and a half decades of fenestration engineering excellence, our advanced facility bridges custom design with high-volume precision manufacturing.
180,000 ㎡ Intelligent Campus
Our expansive industrial plant situated in Foshan, Guangdong encompasses high-precision CNC slat profiling lines, automated electrostatic powder coating towers, automated polyurethane foam injection chambers, and systematic cyclic endurance stress bays.
Stringent Multi-Tier Quality Assurance
From metallurgical composition spectrometry of arriving aluminum raw stocks to rigorous dynamic balancing of torsion shafts and motorized drop tests, our strict QA protocols comply thoroughly with ISO 9001 and European EN safety standards.
Full-Spectrum International Approvals
We provide full verification collateral: CE Certificates for European declarations, Australian AS2047-N6 structural test validations, and comprehensive documentation to support clearing formalities like SONCAP, KEBS PVoC, SASO, and SABER.
Frequently Asked Questions on Commercial Sourcing
Addressing the core technical, logistical, and operational considerations of global buyers and project engineers.
What criteria determine between tubular vs. external side-motor systems?
Tubular motors sit inside the axle drum, delivering a clean, space-saving design ideal for residential garage doors, villa gates, and compact shopfronts with low-to-moderate duty cycles. External side motors (flange or chain-drive) are selected for large industrial openings, high-frequency logistics centers, and heavy-duty storm shutters due to higher thermal duty thresholds, rapid continuous cycles, and straightforward accessibility for mechanical maintenance.
How do you prevent galvanic and atmospheric corrosion in coastal installations?
In maritime environments like coastal West Africa, the Caribbean, or Australia, salt fog rapidly corrodes substandard materials. We utilize architectural 6063-T5 aluminum pre-treated with chromate-free chemical passivation, coated with AkzoNobel or PPG fluorocarbon PVDF powder paints (AAMA 2605 compliant). Additionally, guide rails feature isolated EPDM brush gaskets and 316 stainless steel fasteners to mitigate galvanic corrosion risks between contrasting metals.
What custom architectural shop drawings and engineering files are provided?
Before launching fabrication, our dedicated design engineers generate project-specific submittal packages. These include millimeter-accurate CAD shop elevations, horizontal and vertical lintel section details, structural anchor load calculations, conduit layout schematics for electrical rough-ins, and customizable BIM (.rvt) assets tailored for direct inclusion in master architectural schedules.
How are oversize export shipments protected against transit vibration and moisture?
Export logistics require rigorous packaging defense. Shutter slat curtains are wound around heavy-gauge structural steel drums wrapped with moisture-barrier EPE foam sheeting, sealed within fumigated solid plywood crates or steel skeleton stillages. Sensitive electronic control units and drive assemblies are individually boxed inside shock-absorbing moisture-desiccant packaging to prevent damage during long ocean transits.
