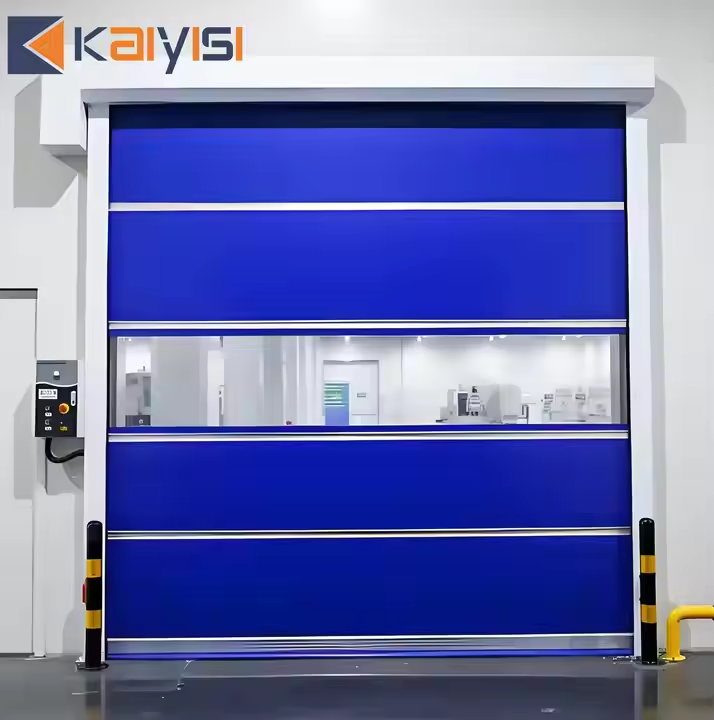

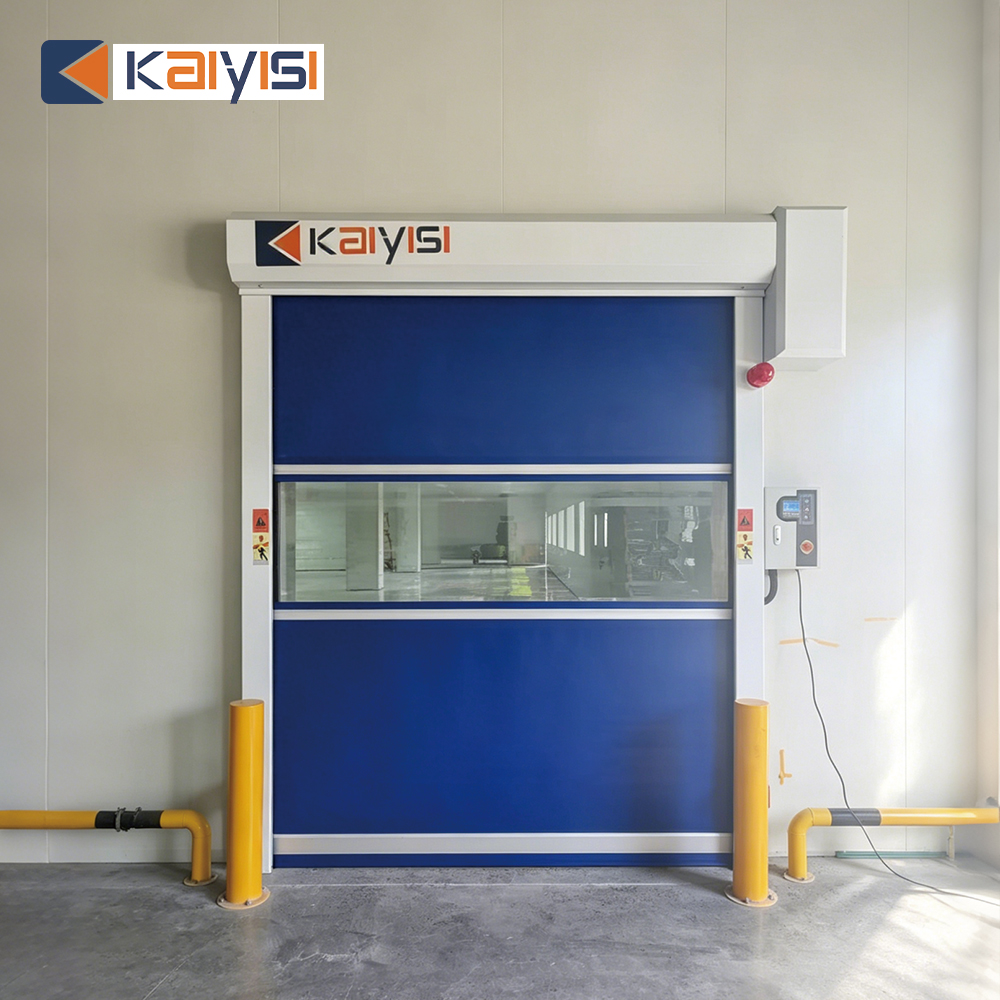

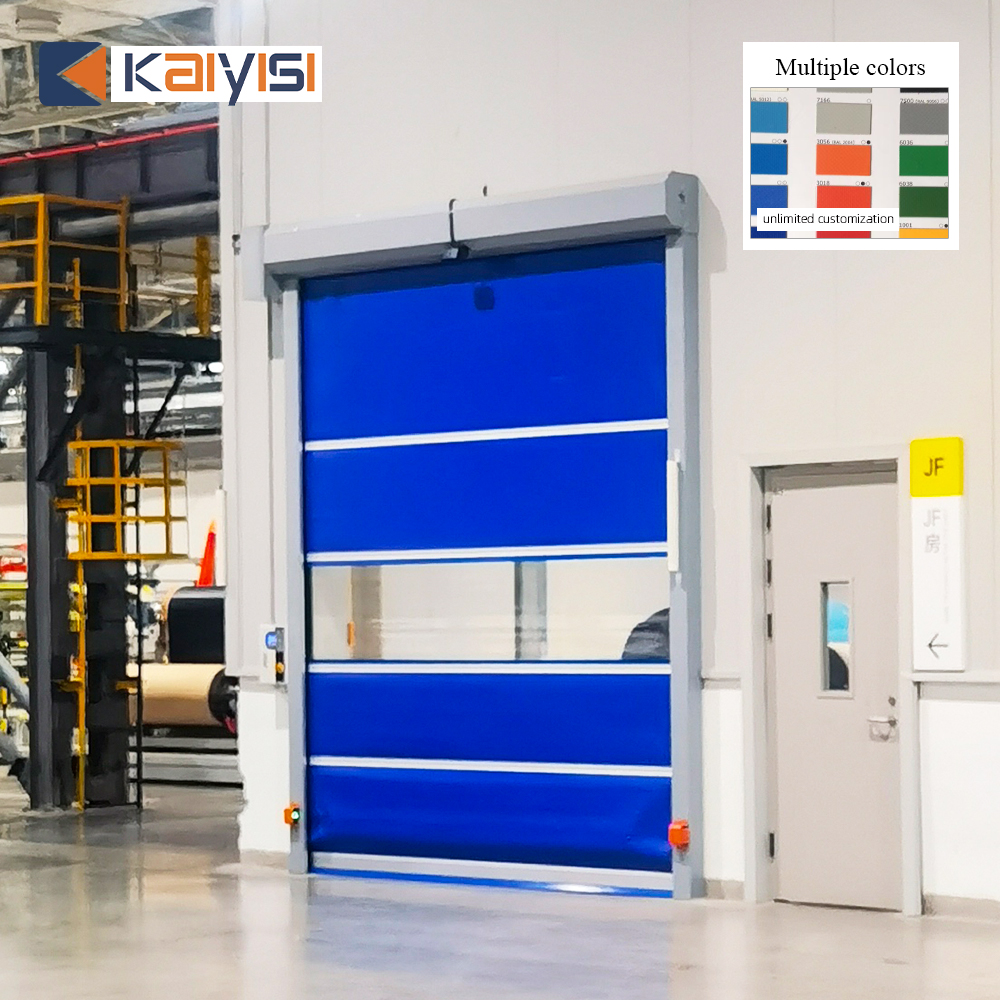

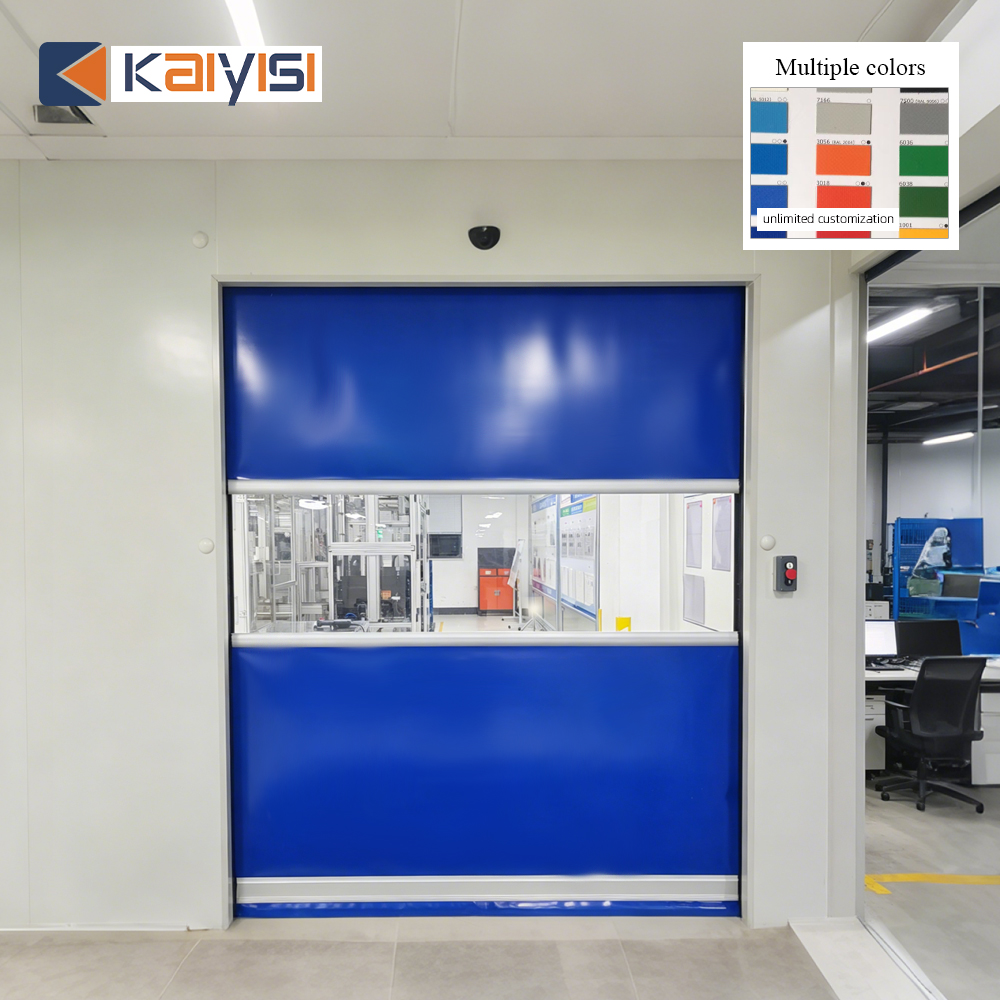

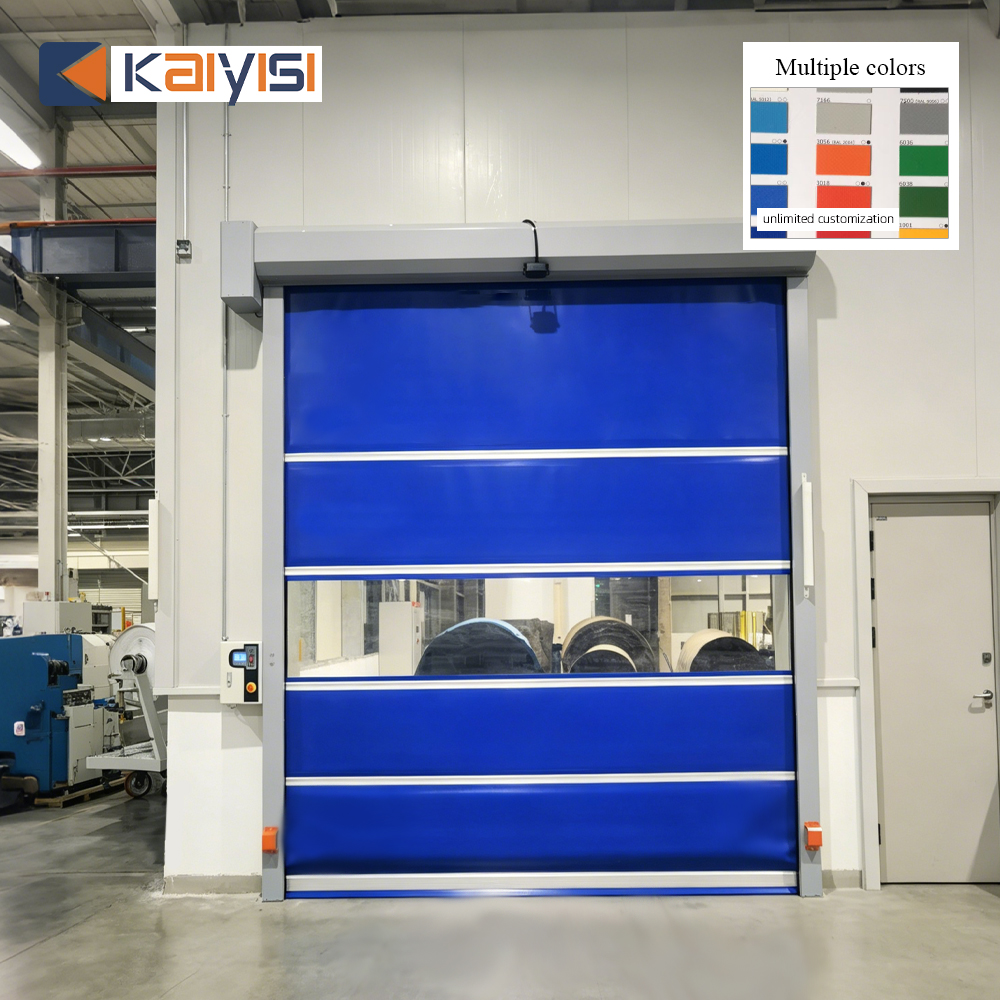

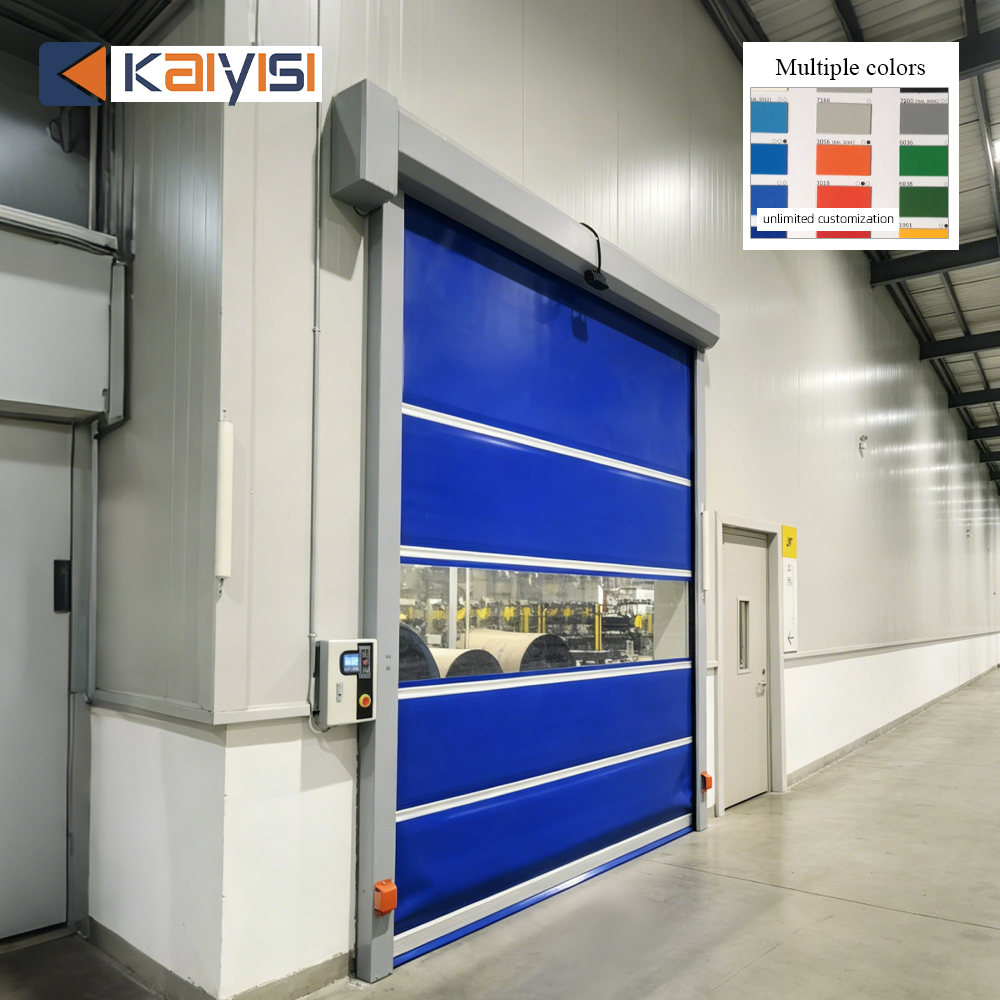

High Speed Door Industrial Exterior Quick Rolling Door Sales Size and Color Customizable PVC Modern
Product Description
Product Detail
Product Parameter Description
| Name | PVC high speed rolling shutter door |
| Size | Support customization |
| The thickness of the door curtain | 0.8mm |
| The thickness of the door frame | 2 mm |
| Door curtain material | Pvc |
| Door frame | Optional 304 stainless steel, aluminum alloy, painted steel |
| Control system | Servo motor and English interface |
| Using life | Approximately over 5 million times |
| Power requirements | 220v |
| Thermal insulation | International level |
| Air tightness | International level |
| Speed | 0.6-1.6m/s |
| Colour | Support customization |
| Security Configuration | Infrared radiation / Safety light curtain |
| MOQ | 1 set |
| OEM | Accept |
| Package | Wooden crate |
| Delivery time | 7-25 days |
| Advantage | Free warning lights and collision pillars as gifts |
| Emergency activation | When there is a power outage, always turn on the motor brake and use the balance system to lift the door body, effectively solving the problem caused by power outages or malfunctions. |
| Service | 24 online after-sales solutions |
CAD Drawings & Engineering

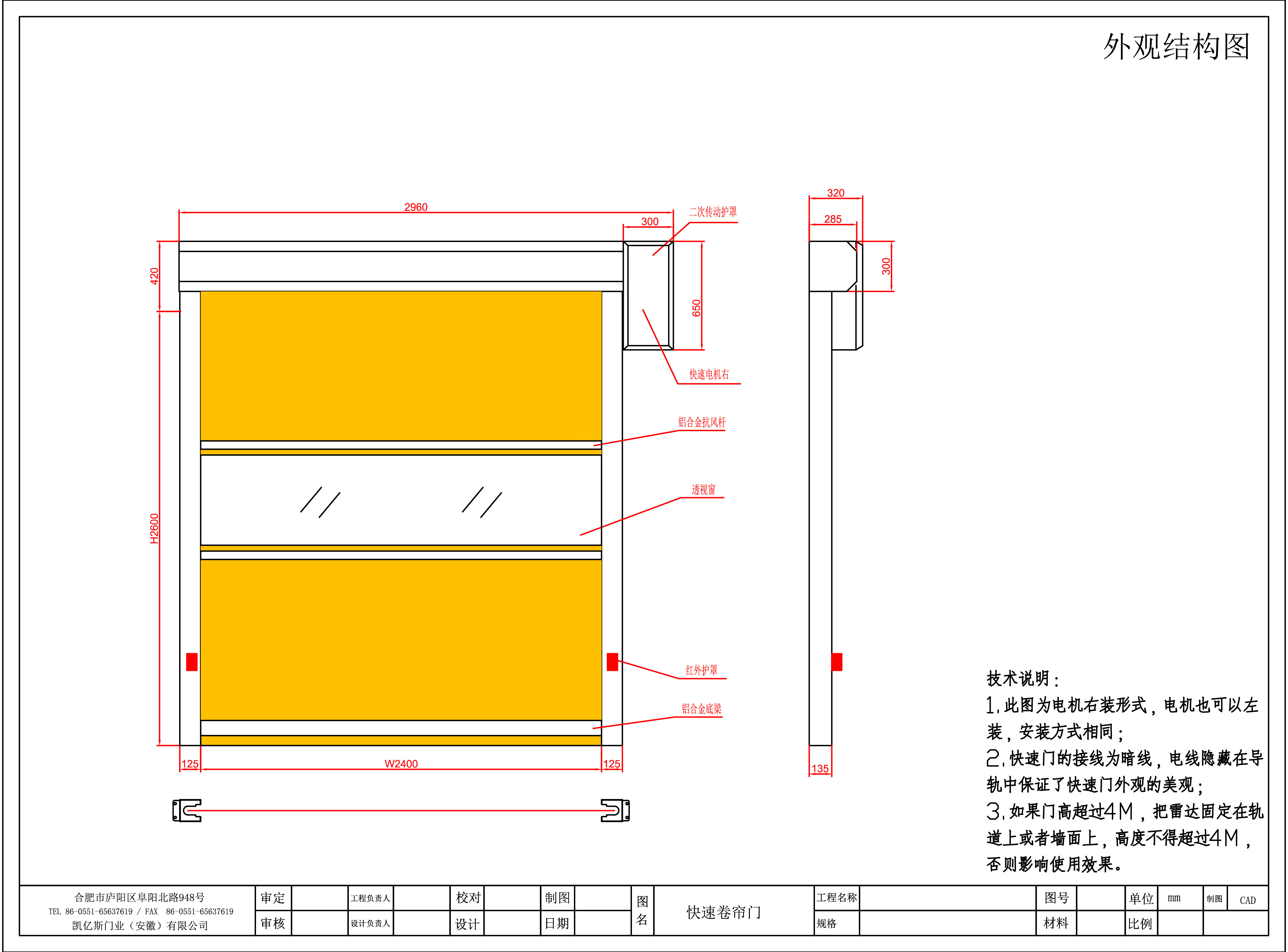

CAD Drawings

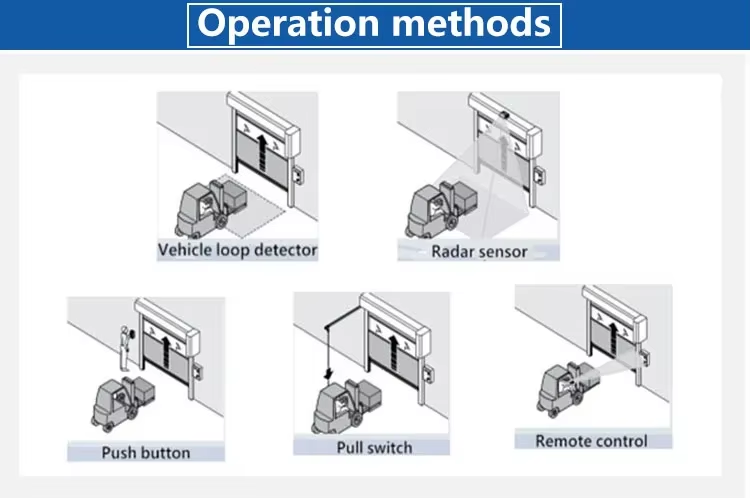

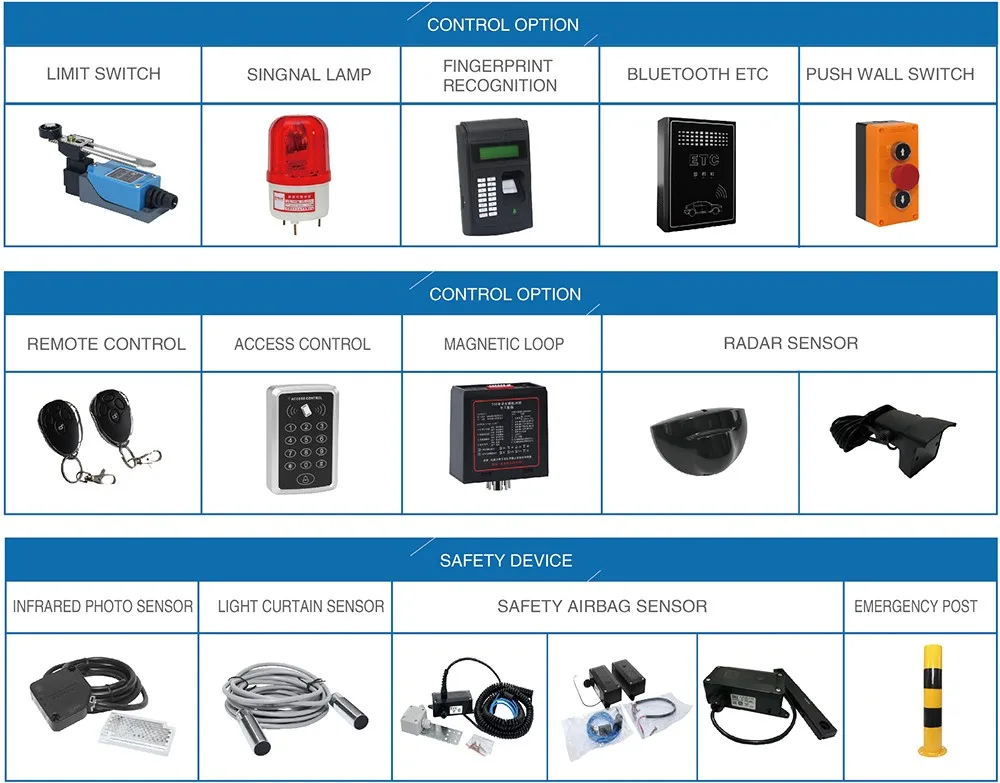

Opening Method
We have the most comprehensive opening method, and there must be one that you need
- Vehicle loop detector
- Remote control
- Push button
- Pull switch
- Radar & sensor activation
Multiple Colors & Curtain Structure

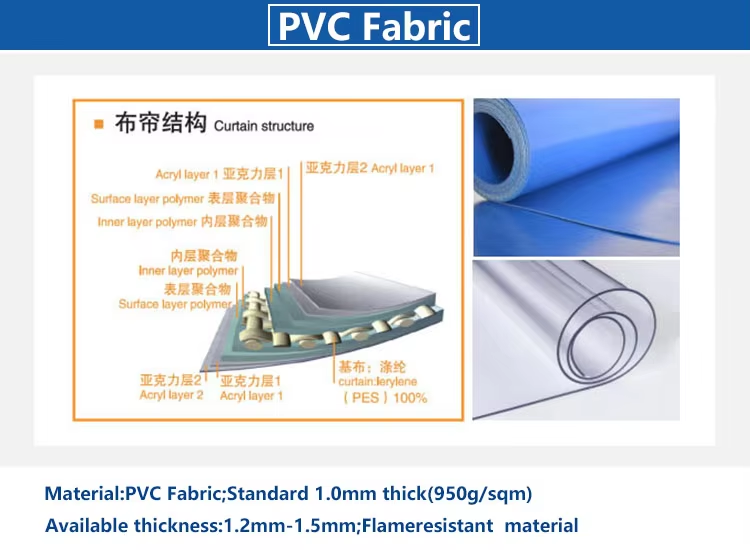

Curtain structure
Colors
Details Images

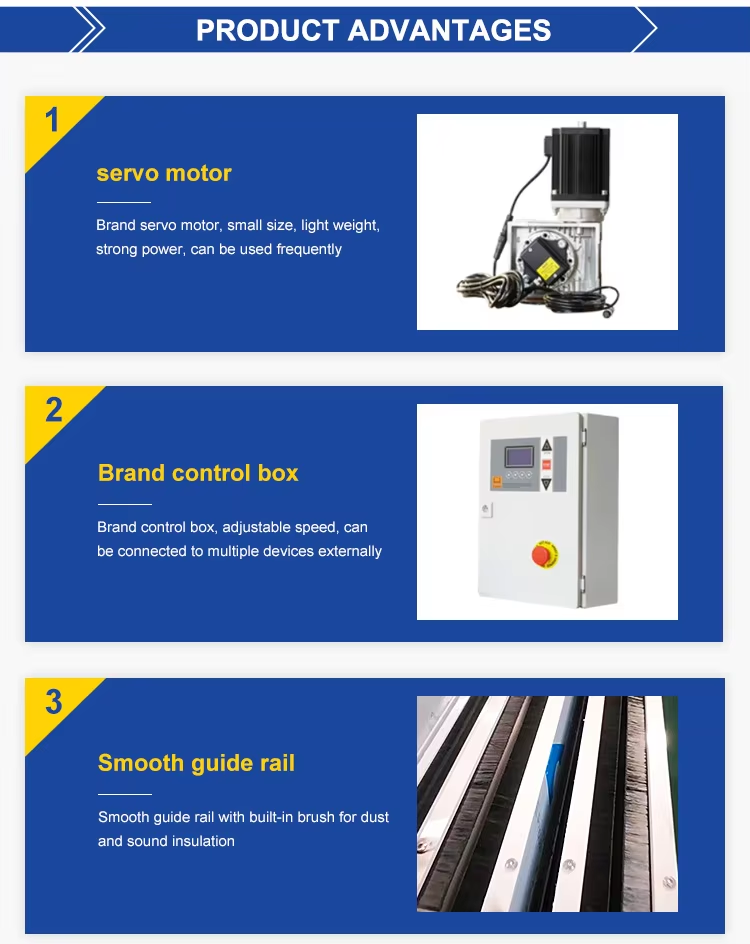

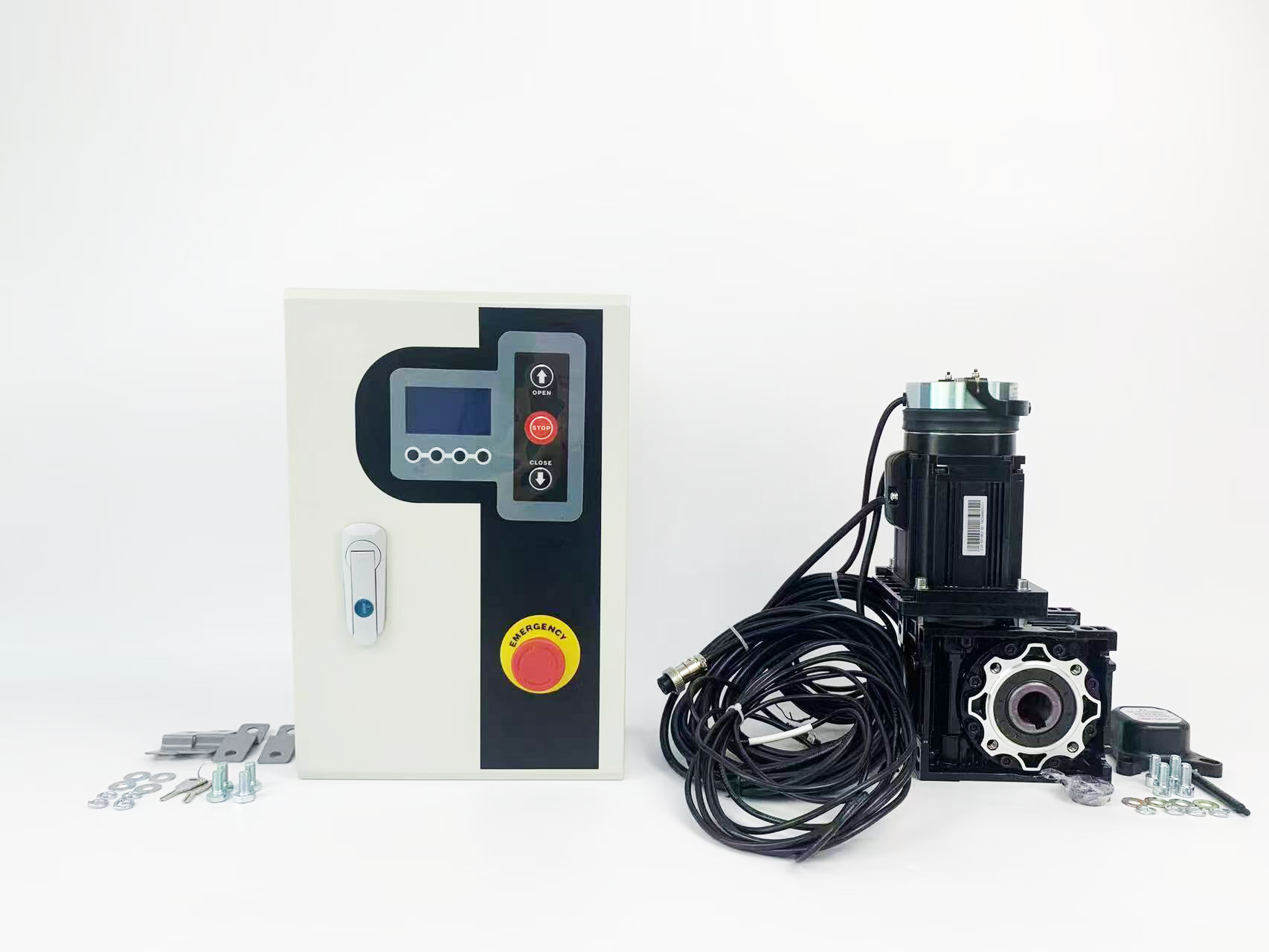

Motor and Control box
Equipped with advanced motors and control boxes

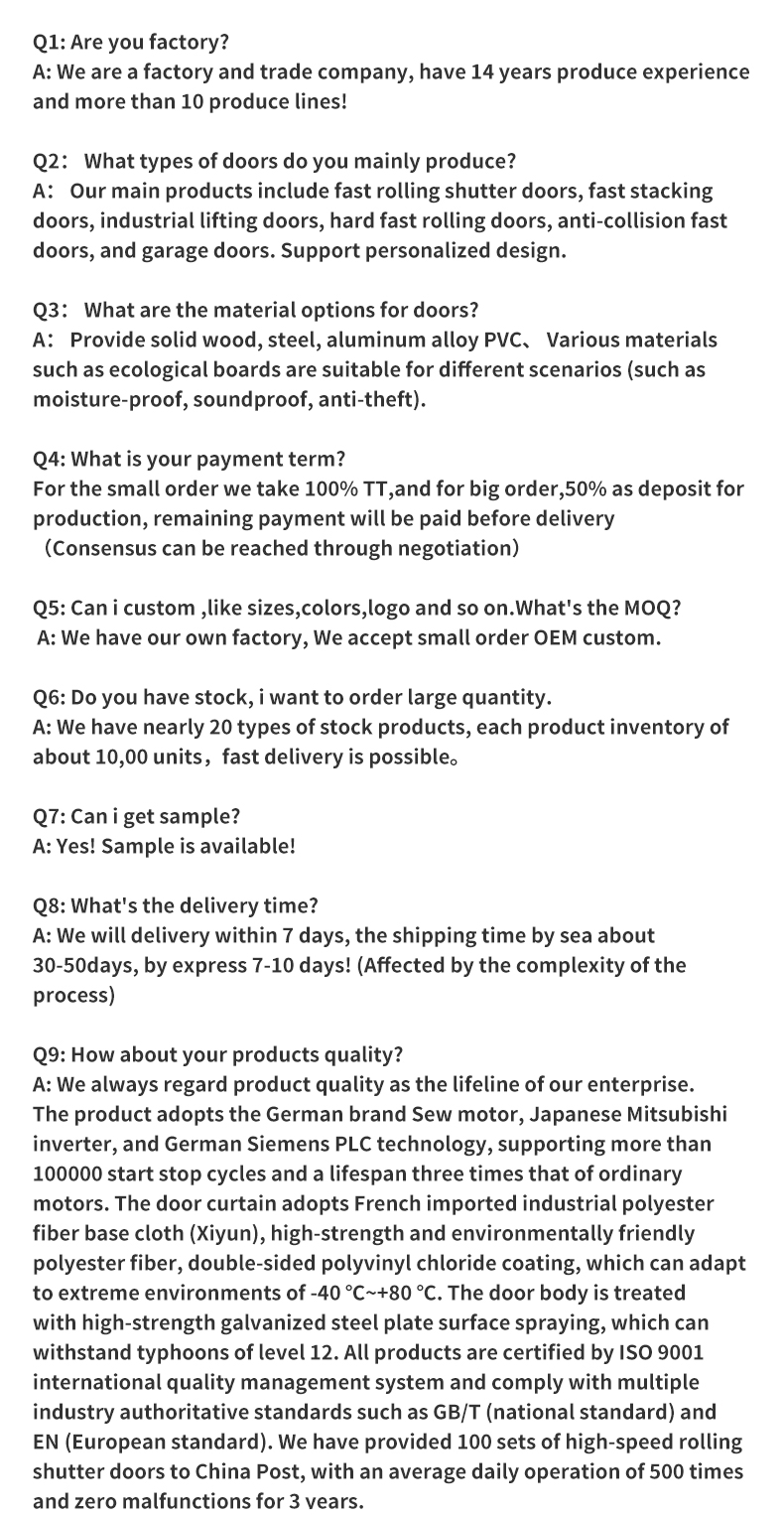

Frequently Asked Questions (FAQ)
What is the opening speed of this PVC high-speed rolling shutter door?
The opening and closing speed ranges from 0.6 to 1.6 m/s, which can be adjusted via the servo motor and English control interface to meet your facility's traffic flow requirements.
How does the door operate during an emergency or power outage?
In the event of a power failure, release the motor brake and utilize the manual balance system to effortlessly lift the door curtain, preventing trapped personnel or vehicles.
Can sizes and colors be customized for specific project requirements?
Yes, both door sizes and PVC curtain colors are fully customizable. We also support OEM production and optional frame materials such as 304 stainless steel, aluminum alloy, or painted steel.
What safety devices are included with the door package?
Each door is equipped with standard infrared radiation / safety light curtains. In addition, we provide free warning lights and collision protection pillars as complimentary accessories.
What is the minimum order quantity (MOQ) and production lead time?
The MOQ is just 1 set. Delivery generally takes between 7 to 25 days depending on customization details and order volume, safely packed in durable wooden crates.
What is the service life and after-sales support policy?
The system offers high durability with an operational life exceeding 5 million cycles. We provide 24/7 online technical support and after-sales solutions to guarantee seamless operation.
