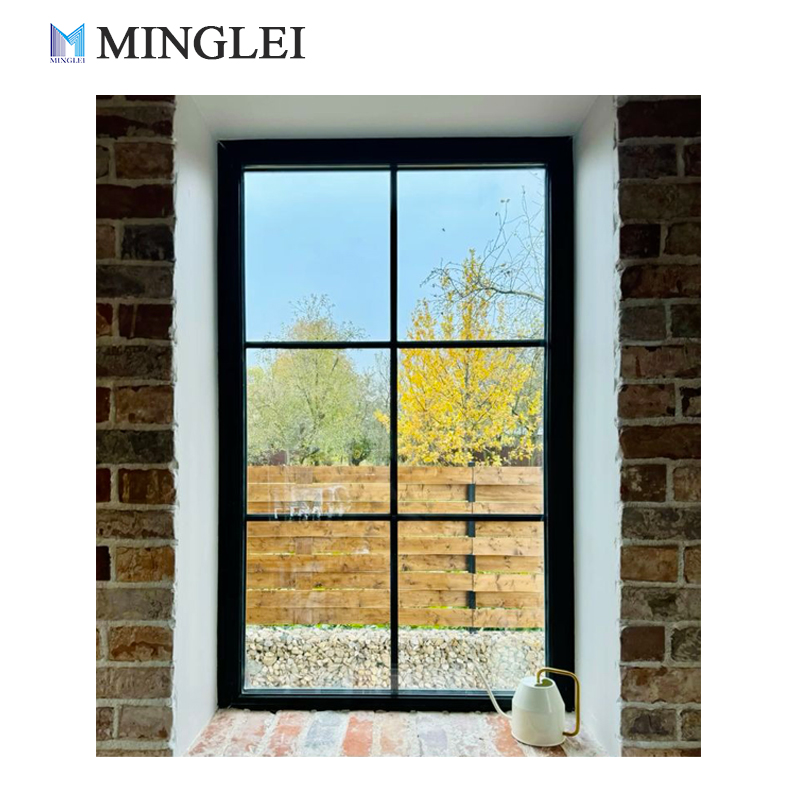

High Heat Insulation Energy Saving Black Aluminum Window Thin Profile Aluminium Windows and Doors Casement Windows for USA

Product Description

Thermal Break Aluminum Window System

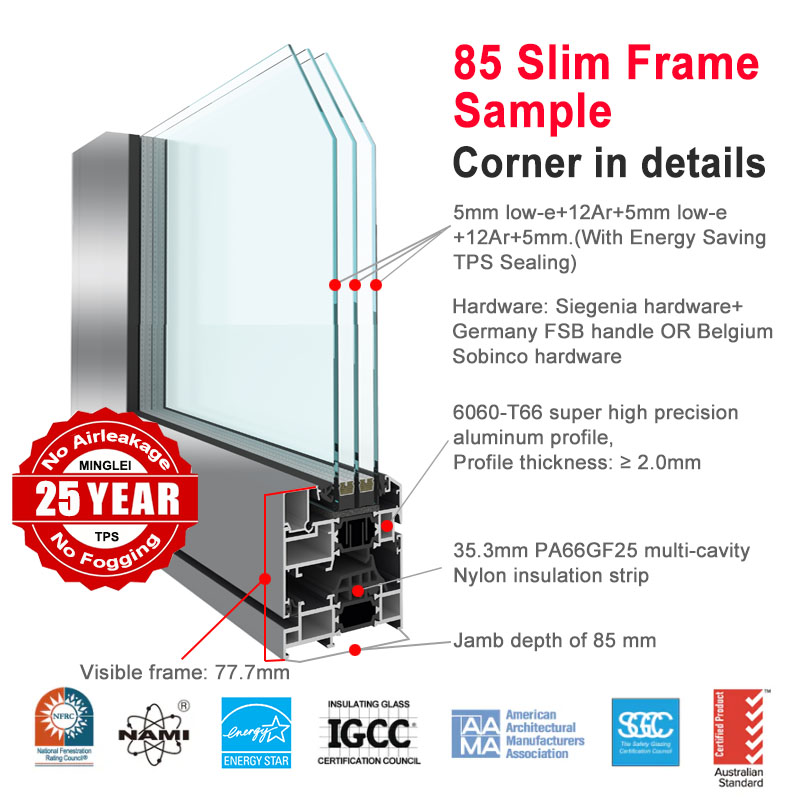

Aluminum Narrow Frame Tilt Turn Windows-85 Series
Premium Architectural System

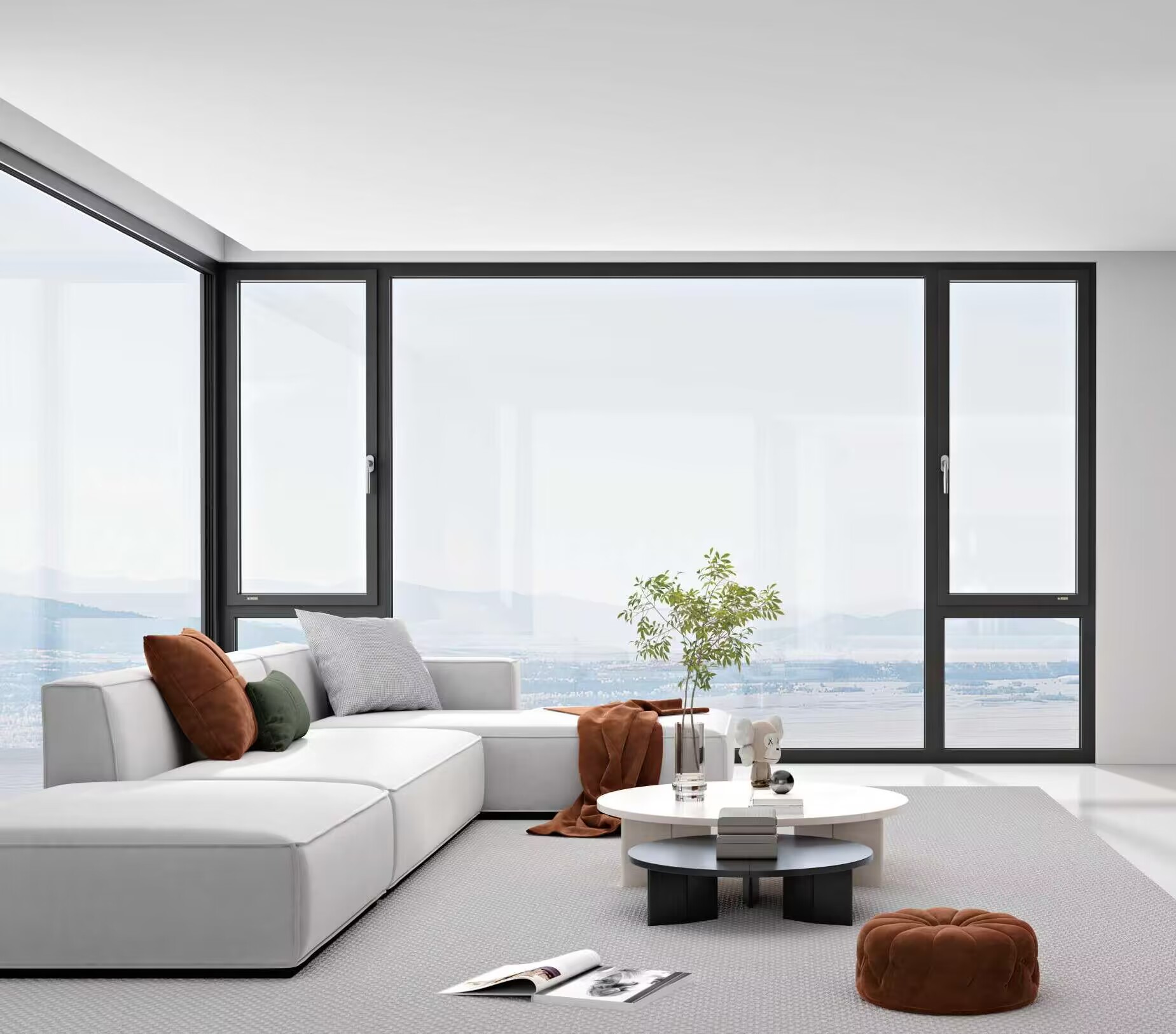

Aluminum Narrow Frame Tilt Turn Windows-85 Series

MINGLEI Narrow Frame Tilt Turn Window combines cutting-edge engineering with sleek, contemporary design to deliver the ultimate balance of style, durability, and energy efficiency.

1. The extremely thin frame design minimizes visual obstruction, offering a wider field of view and better integrating outdoor scenery into the interior. Their sleek, simple lines align with modern aesthetic trends, elevating the overall appearance and design sophistication of the building.

2. Narrow frames adopt high-strength profiles, ensuring structural stability and safety without compromising on aesthetics.
Products Description

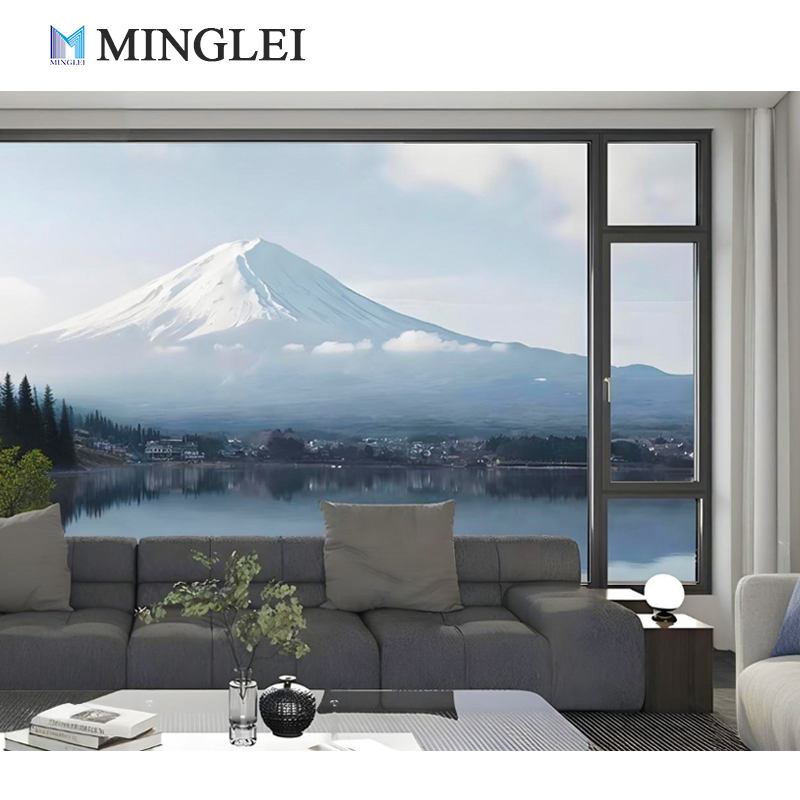

Window Structure View 1

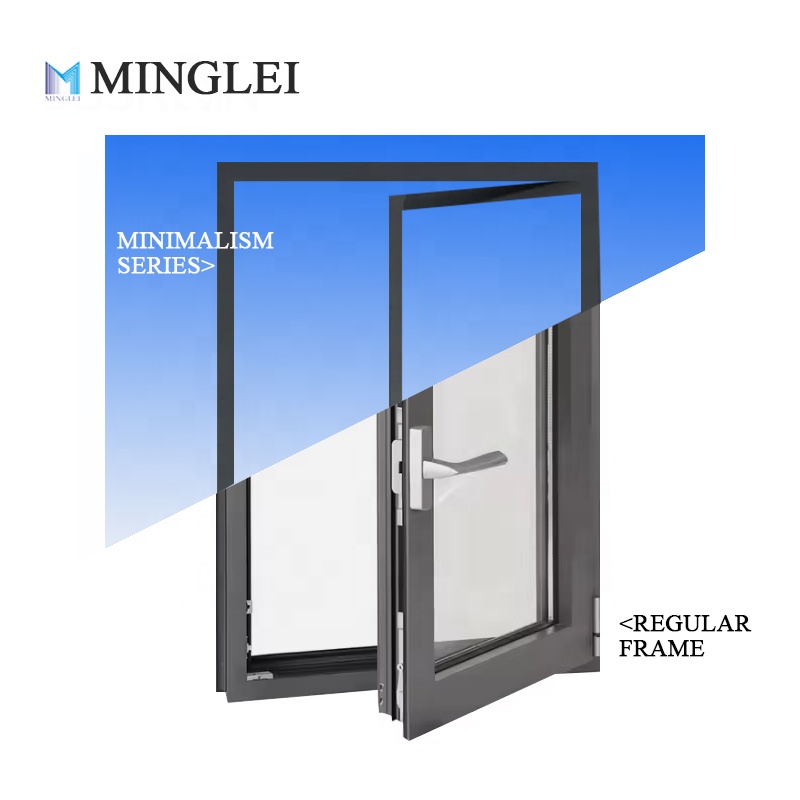

Window Structure View 2

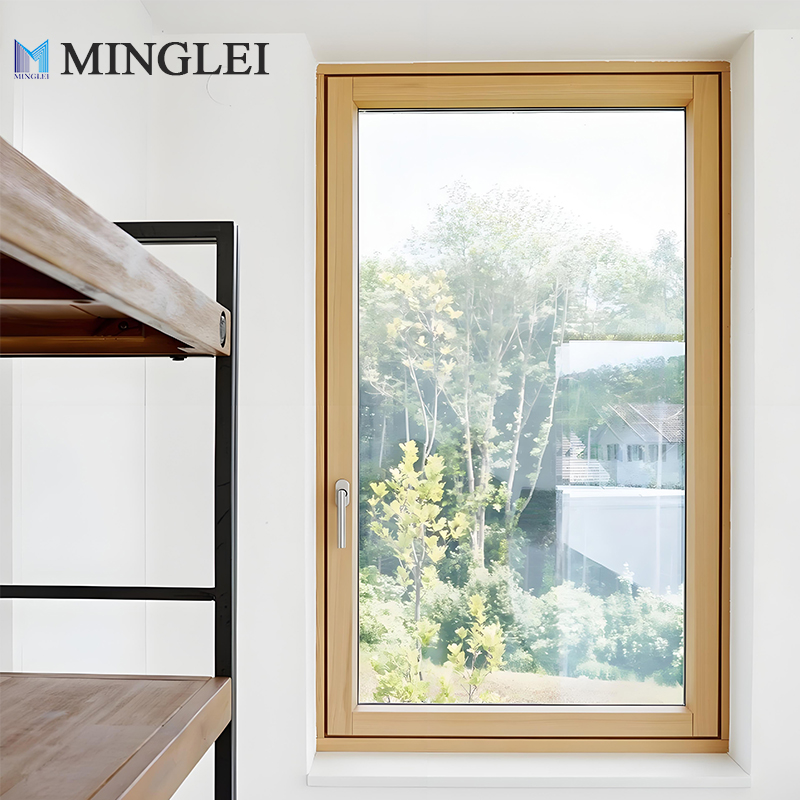

Window Structure View 3
1. Profile 6060-T66 Thermal break aluminum alloy
2. Profile brand Germany system, Domestic system
3. Surface finish Powder coating, Anodized, Woodgrain transfer, Elestrophoresis, Fluorocarbon paint.
4. Profile thickness 2.0 mm
5. Glass option Triple insulated glass: 5/6mm+ 16A+5/6mm+16A+5/6mm, warm edge spacer low-e & argon gas

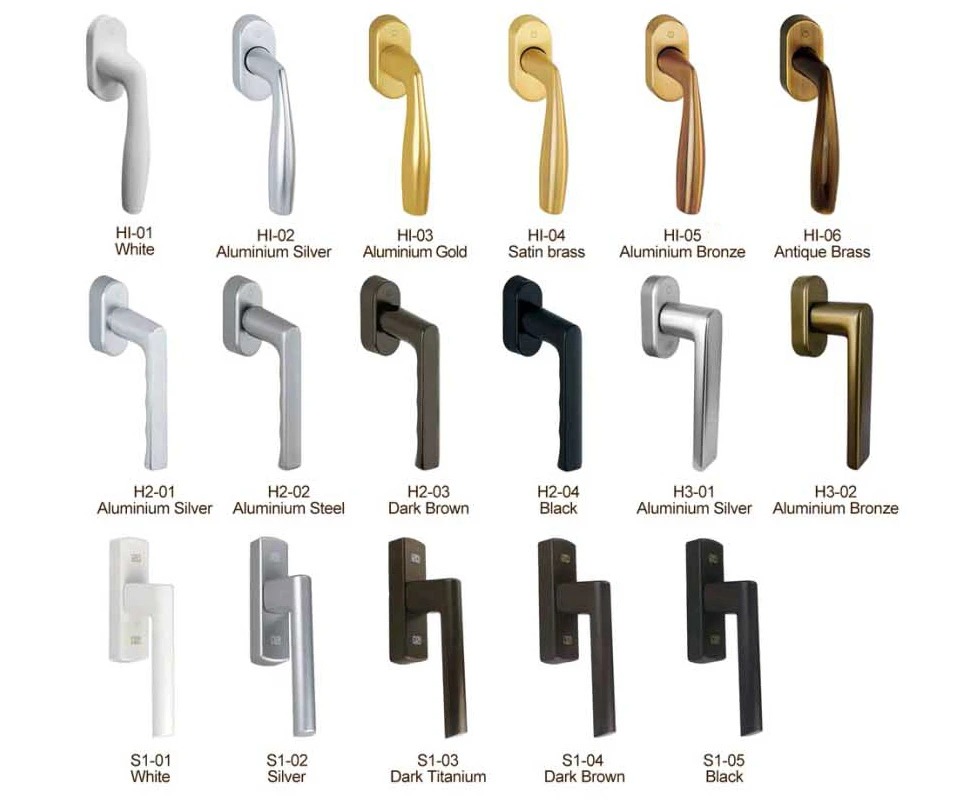

7. Hardware Germany imported brand
8. Seal & strip Germany Originally imported EPDM Rubber sealing strip, black or grey color
9. Screen optional Stainless steel mesh screen
10. Sunshading Blinds, roller shutter etc
11. Applications Commercial building, Office, apartment, villa, basement, garden, hotel, hospital, residential housing.

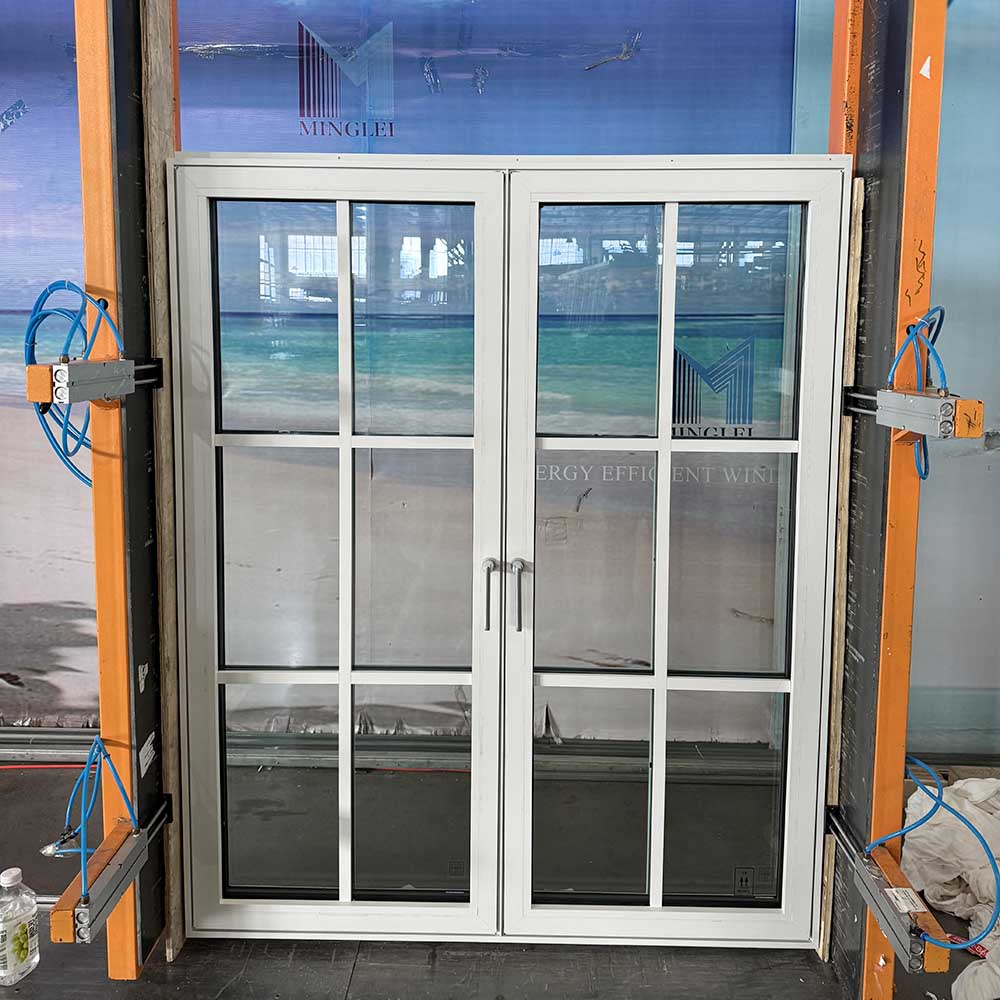

Tilt & Turn Window-Front
Tilt & Turn Window-Front
Tilt & Turn window (inward opening)
Tilt & Turn window (inward opening)

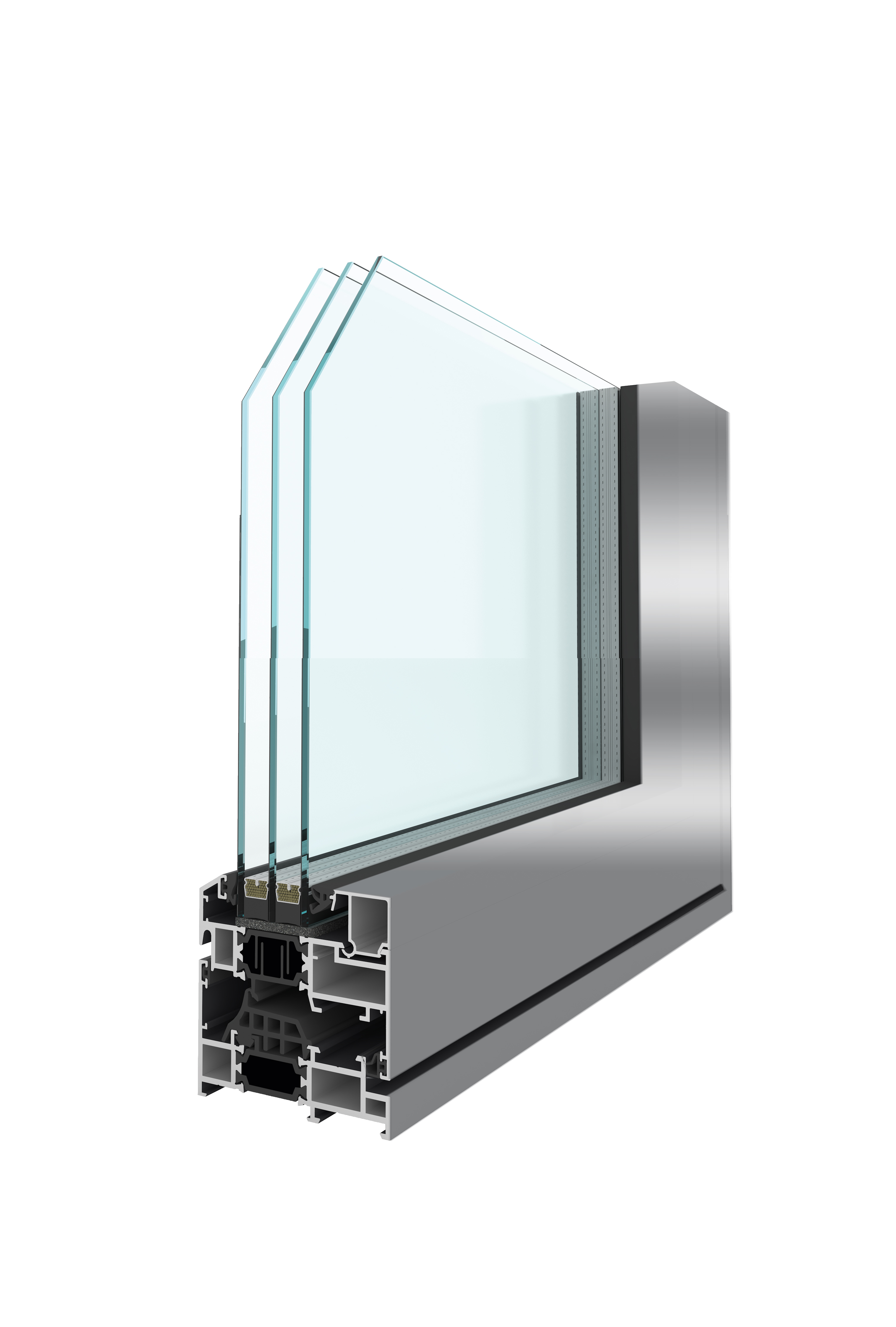

Cross Section
Cross Section
Tilt & Turn window (tilt opening)
Tilt & Turn window (tilt opening)
Ideal Solution for Commerce & Residence

Tilt-Turn window is fully NFRC certified and ENERGY STAR® qualified, meeting strict U.S. standards for energy efficiencyn and performance (U-factor: 0.2). Tested and rated by the National Fenestration Rating Council (NFRC), it provides verified insulation values and solar heat gain control.

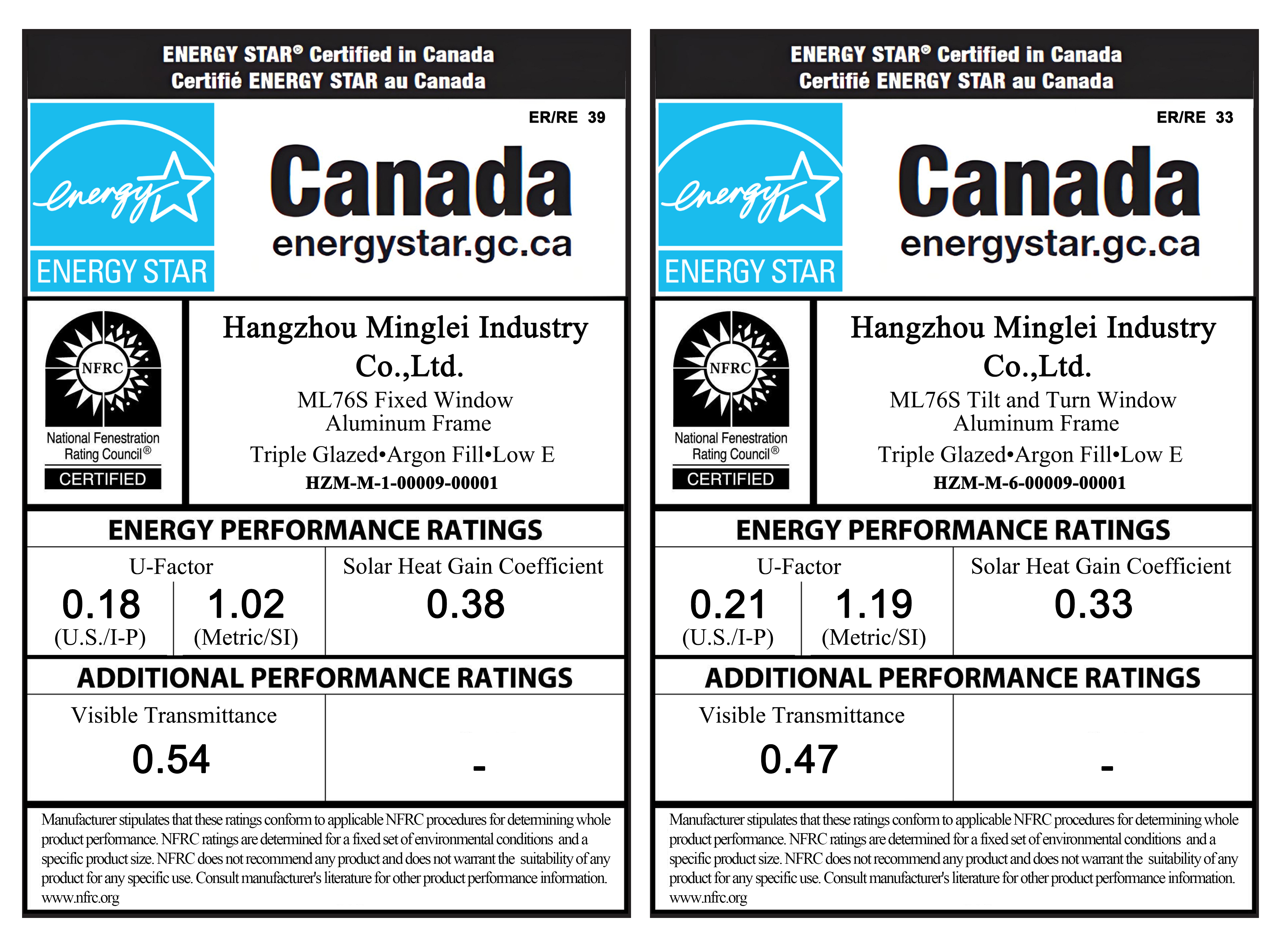

Energy Star Rating Performance

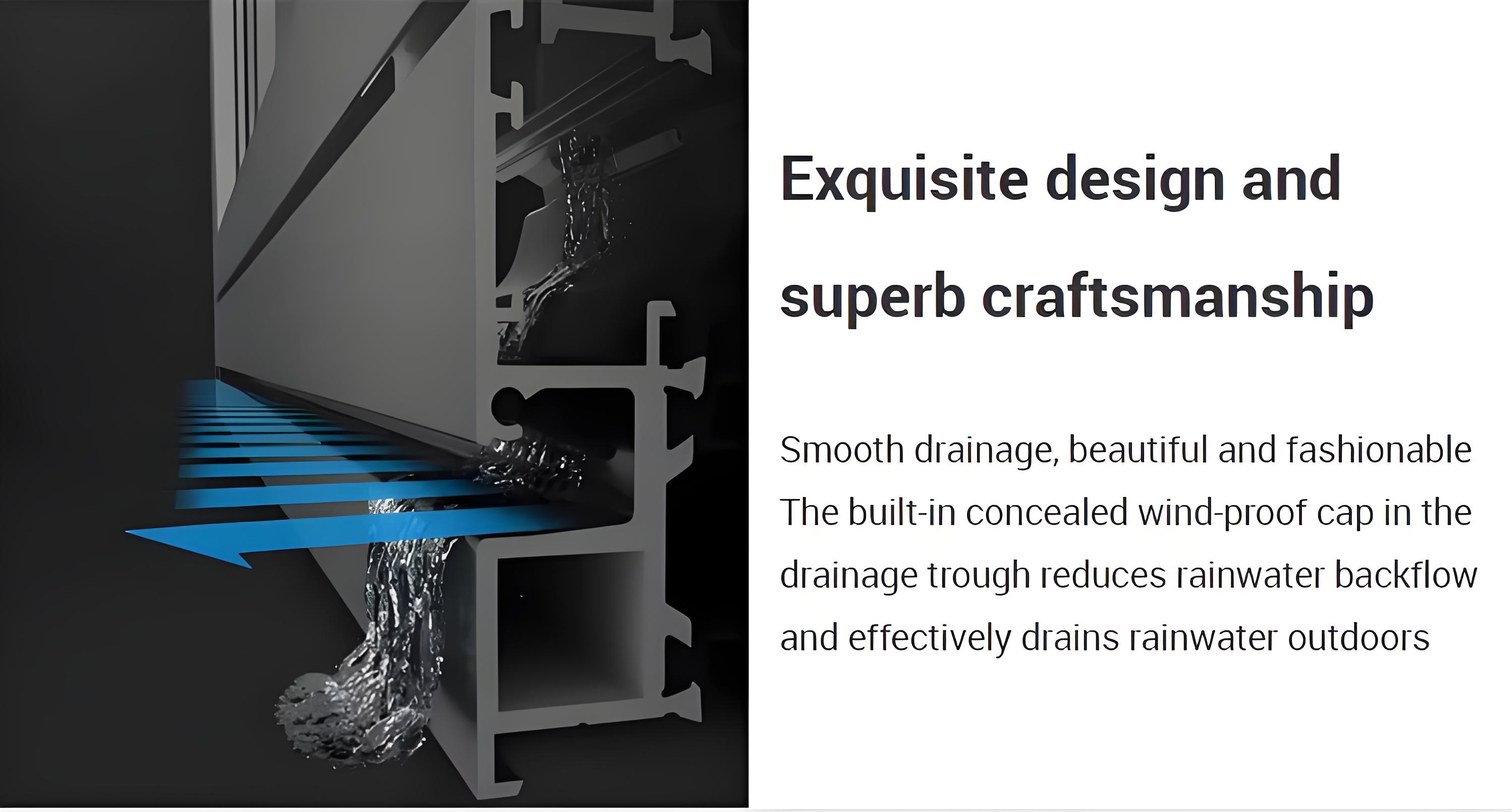

Certification 1

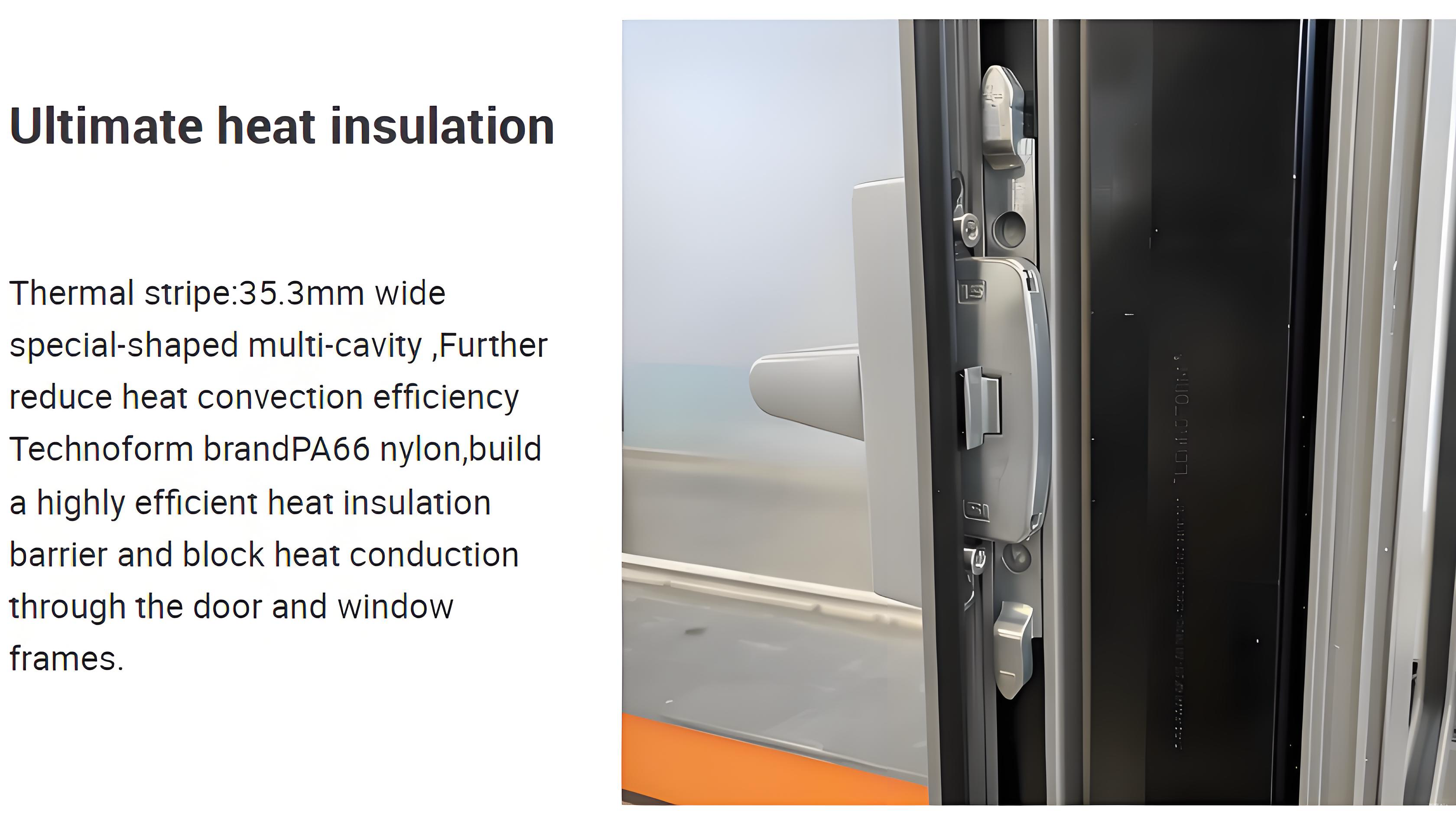

Certification 2

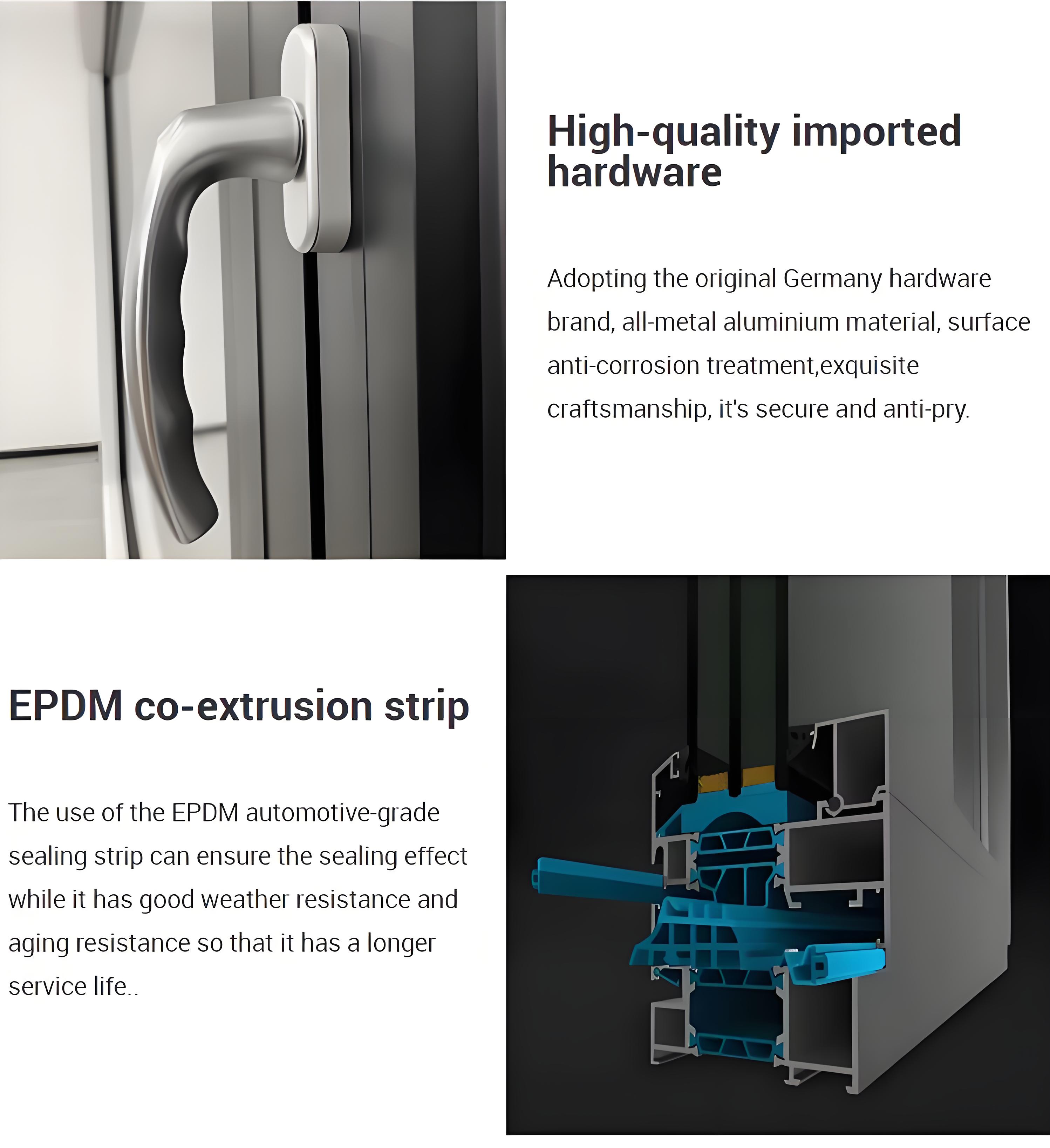

Certification 3
Certification 4
Certification 5
Certification 6
Certification 7
Certification 8
Advantage Overview
Advantage

For years, Aluminum window have been specified by architects and builders for their overall strength and lasting value. Because of their rigidity, durability and narrow frames, aluminum windows can be configured into a wide variety of combinations that maximize views. Aluminum windows also are popular because of their low maintenance. They won't rust or rot. You don't have to paint them. And they're available with tough anodized or baked-on finishes.

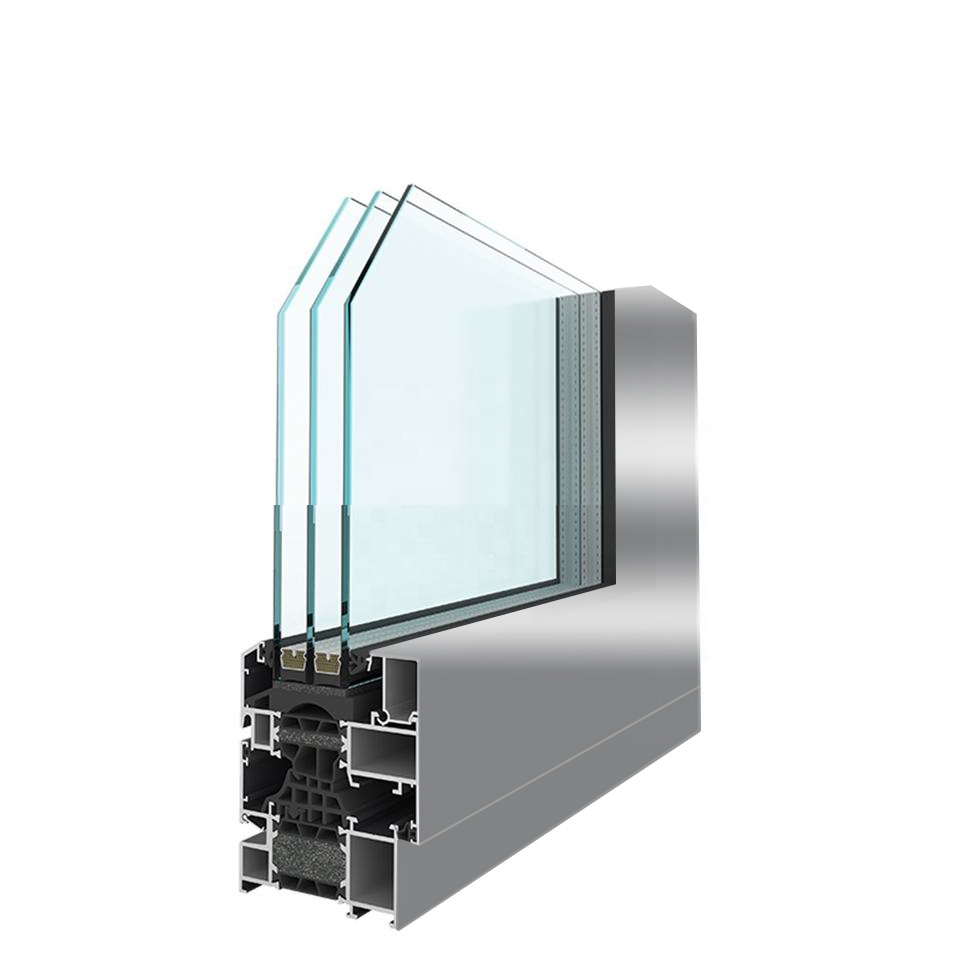

ML 76S series
ML 76S series NFRC & NAMI Certified Energy Saving system
ML 85 series
ML 85 series Slim frame design system high insulation

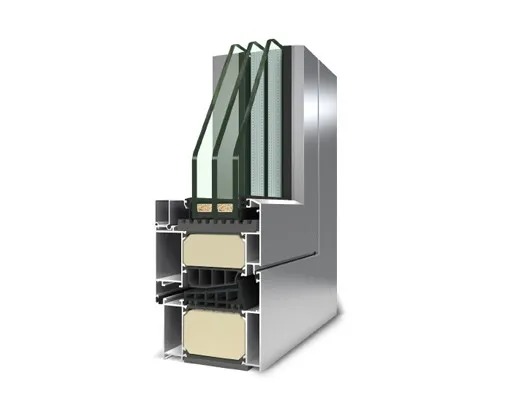

ML101 Series
ML101 Series Passive house system max insulation
Product performance ML101 Series ML 85 series ML 76S series
European U-Value (Metric/SI) 0.79 W/(m²K) 1.19 W/(m²K) 1.19 W/(m²K)
American U factor (U.S./I-P) 0.14 0.21 0.21
Rw (dB) 38 35 35
Wind load resistance (Pa) ≥ 2400 Pa ≥ 2400 Pa ≥ 2880 Pa
Water tightness (Pa) ≥ 580 Pa ≥ 580 Pa ≥ 440 Pa
Canadian Air infiltration/exfiltration A3 level, Metric ≤0.07 L/sm2
Imperial ≤ 0.014 cfm/ft2
A3 level, Metric ≤0.07 L/sm²
Imperial ≤ 0.014 cfm/ft²
A3 level, Metric ≤0.19 L/sm²
Imperial ≤ 0.038 cfm/ft²
Our Advantages
ONE OF LEADING MANUFACTURERS OF ENERGY EFFICIENT WINDOWS AND DOORS WITH ABUNDANT SERVICE EXPERIENCE
Minglei is a professional manufacturer of high quality windows and doors with 10+ years exporting experience with two state-of-the-art manufacturing base with 300,000㎡ /year production capacity. We have enjoyed a lot of five-star reviews & recommendations by global customers from more than 60 countries, 80% of whom are from the USA, Canada, Europe, and Australia.
Factory Base

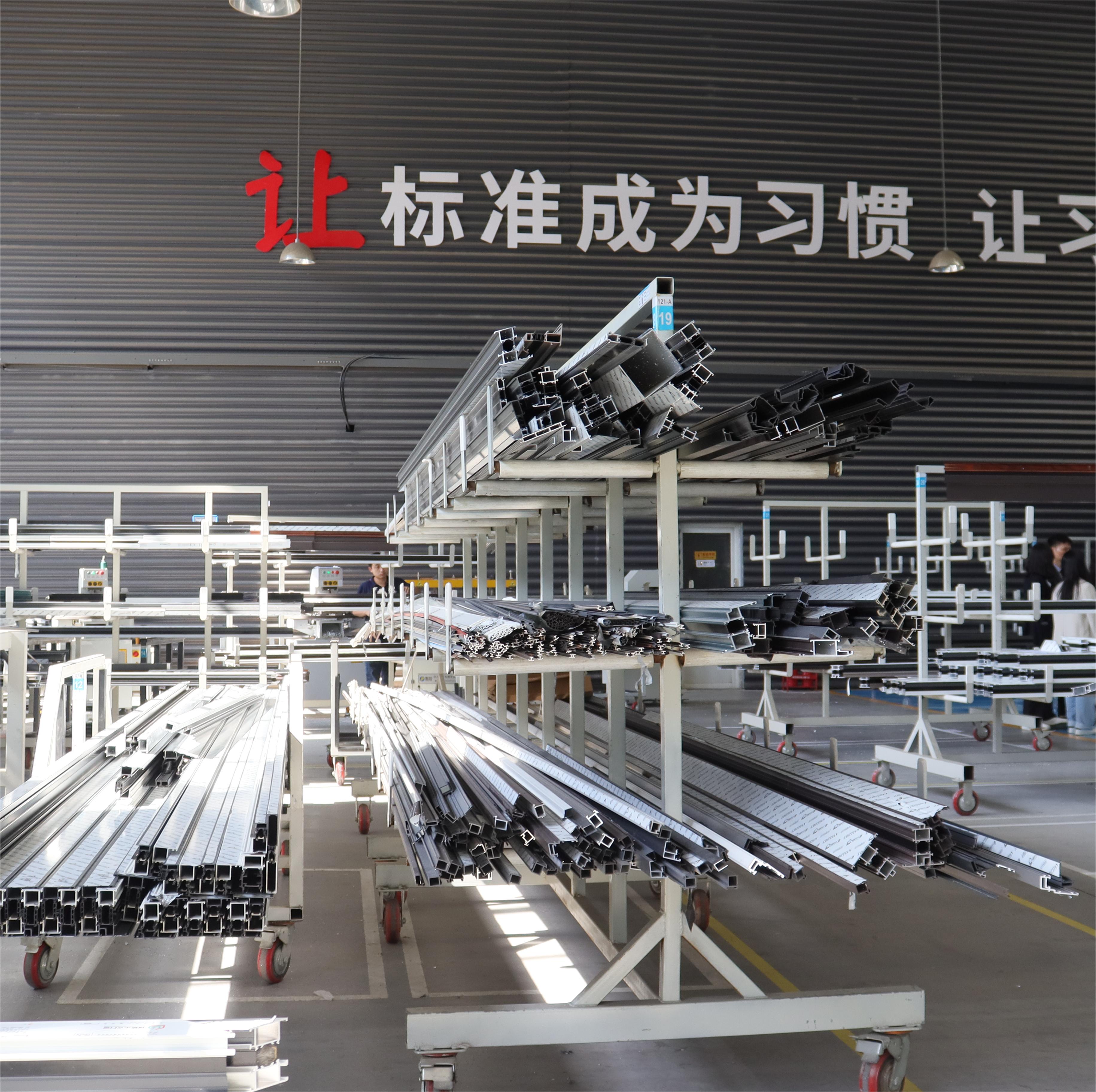

Production Workshop

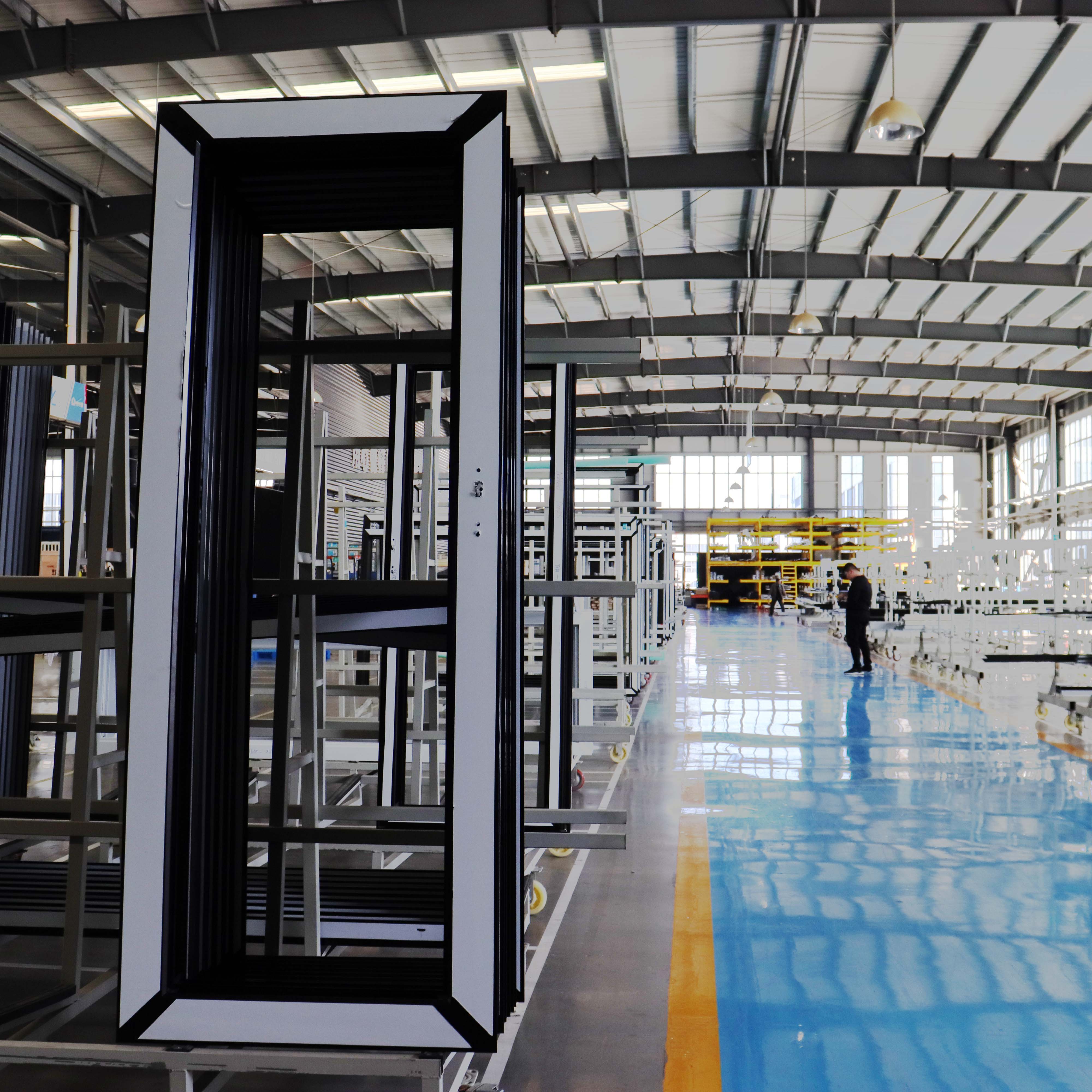

Precision Equipment

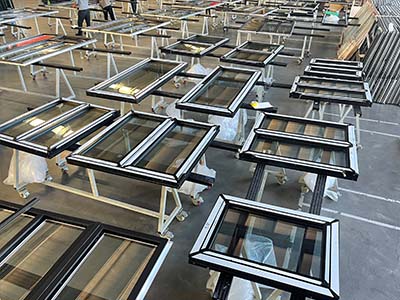

Assembly Line
CERTIFICATIONS

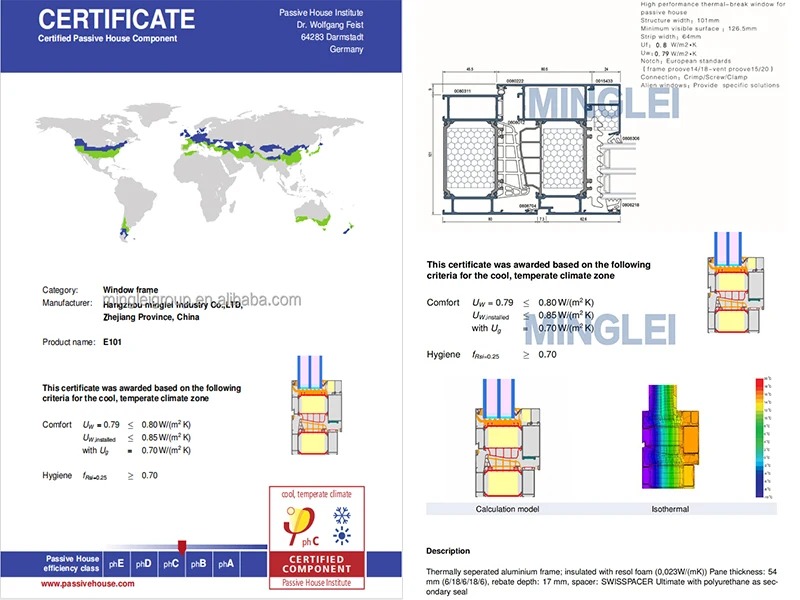

So far, We have certifications and test reports of Canada Energy Star, NFRC, NAMI, AAMA, AS2047 and CE etc .
Energy-efficient, exceptional quality, beautiful design, budget-friendly, those are all about our missions for windows and doors.
With advanced & exquisite manufacturing technique, and abundant product application & service experience, Minglei team will fulfill Your needs and meet Your highest expectations.

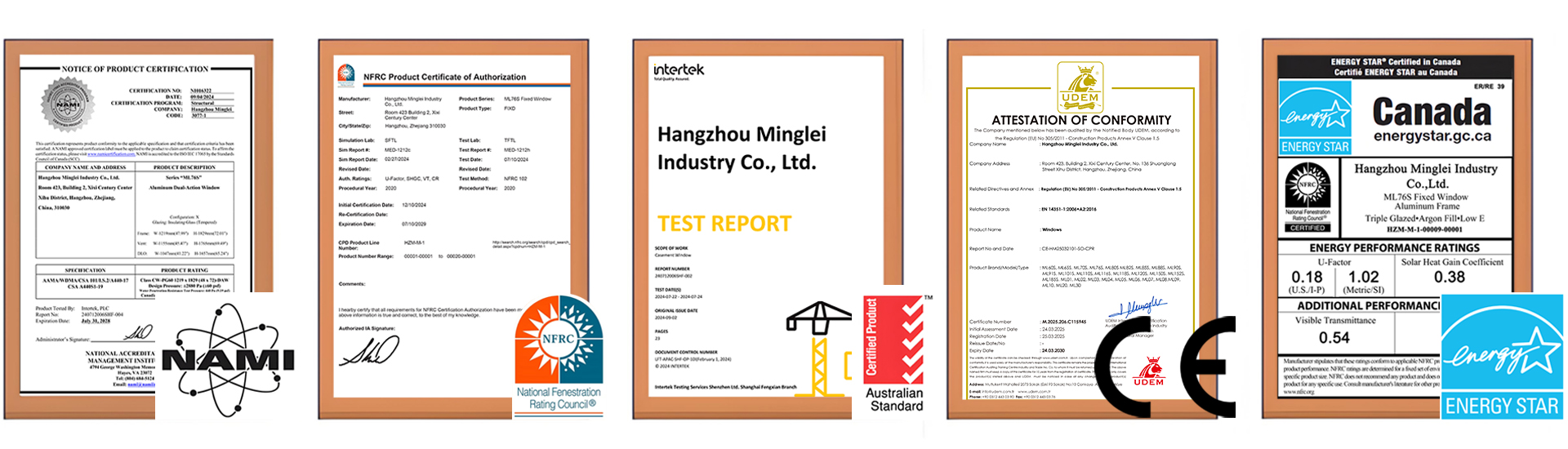

Certificates Display
CORE ADVANTAGES OF ULTIMATE ENERGY SAVING, U-VALUE BENCHMARK PERFORMANCE

With "ultimate thermal insulation and energy saving" as its core R&D direction, Minglei Windows and Doors achieves an industry-leading U-value (the lowest U-value among similar products on the Alibaba platform). Utilizing low-emissivity triple-glazed windows, warm edge spacers, argon gas filling, and a full-window thermal bridge blocking design, it maximizes the reduction of heat transfer between indoors and outdoors. Its winter heat retention and summer insulation effects far surpass conventional products, helping buildings reduce energy consumption by 30%-50%. This aligns with North American Energy Star energy conservation initiatives and saves users long-term energy costs, making it a preferred choice for green buildings.

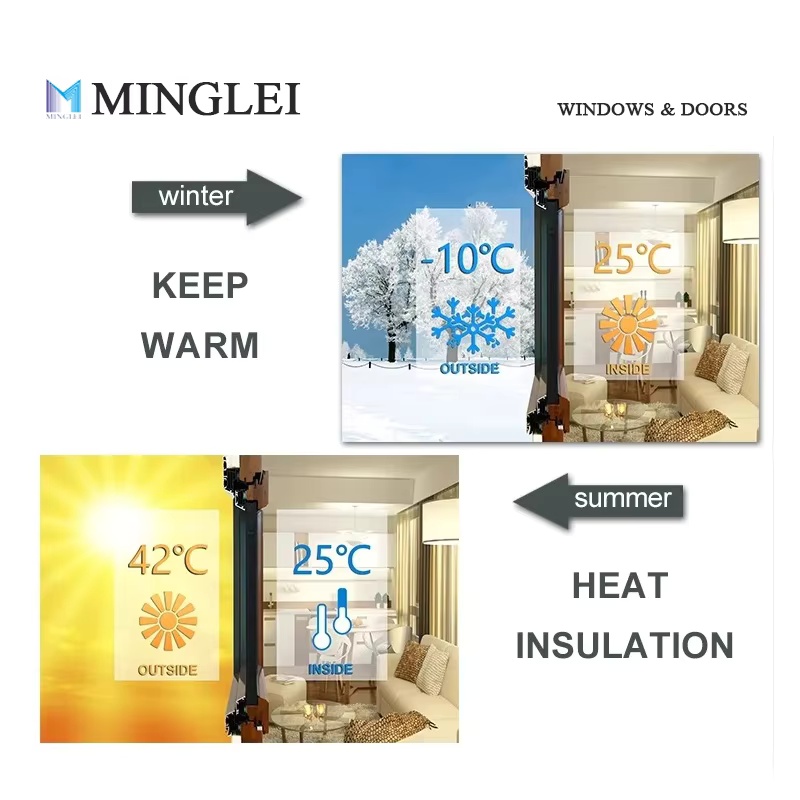

Energy Saving Performance
OUR COMPANY TAKES PRIDE IN OFFERING HIGH QUALITY WINDOWS & DOORS

We use high-grade raw materials, modern technology, and cutting-edge manufacturing processes, and skilled workers to produce windows & doors that offer superior longevity, exceptional performance, and unmatched beauty.

Our windows and doors are with flexible manufacturing for custom sizes, architectural shapes, colors and specialty finishes.
The windows and doors are certified by Canada energy star, USA NFRC & NAMI, which made to pass your local inspectors' verification and are built under Canada & USA building codes so you can rest assured that they are energy efficient, safe and sturdy.

Custom Manufacturing 1

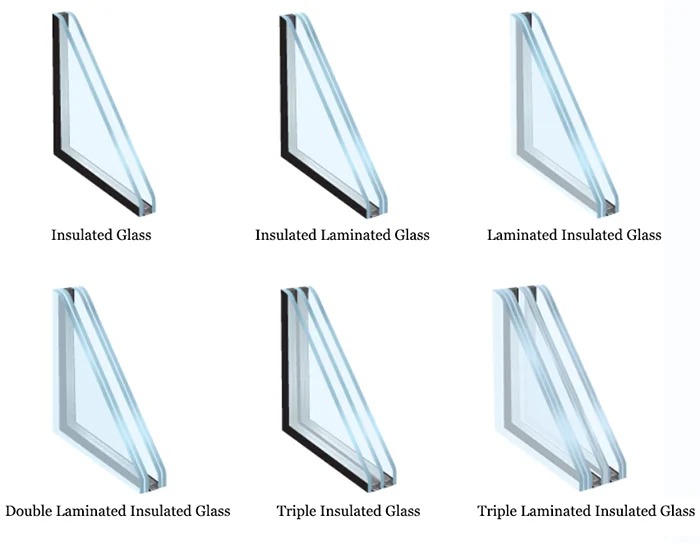

Custom Manufacturing 2
Custom Manufacturing 3
Project Showcase 1
Project Showcase 2
PROVIDE FREE DESIGN ASSISTANCE TO OPTIMIZE YOUR PLAN & BUDGET

We are very happy and look forward to a long-term partnership with you, as with our other partners in US, where our service and strength in window and door expertise can help our partners save more time and money.
Minglei has been working for the North American market for a decade, we provided the most professional plan and meaningful design with ideal price to meet all our client’s highly customized demands. With our own expertise we provide no-cost design development & contract documentation with CAD & BIM drawings, including elevation & details & installation design. Helping clients to accurately control budgets by analyzing the overall plan, including to provide the schematic design to help determine products within cost parameters. Such as use lower cost products in inconspicuous locations to reduce the overall budget: If the direction is not under long time sunlight, do not use Low-E glass; use PVC windows or aluminum windows instead of solid wood windows in unimportant rooms such as toilets or storage rooms.

LABOR COSTS TAKES MATTER DURING THE INSTALLATION PROCESS

We have several international patents to reduce clients’ labor costs, such as our unique flanges and assembly type tubular design, which is different from the other products on the market. What sets us apart among Chinese counterpart is that all our products are equipped with nail fin structures for quick and easy installation. Labor costs during installation may exceed of the window and door price, therefore, our exclusive patent allows users to not only get a significant increase in installation efficiency, but also greatly reduce the labor cost of window and door installation. A cost that may bring you unexpected savings that far exceed the price difference you may care about now.

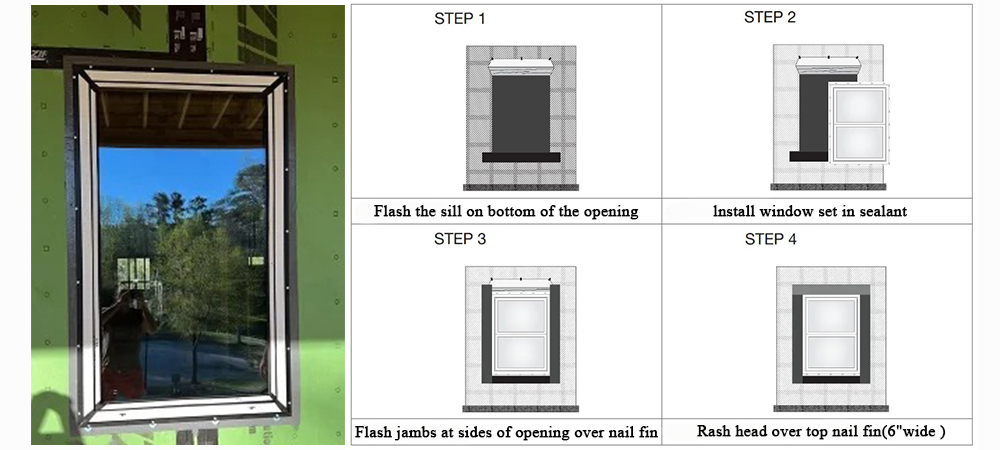

Patented Nail Fin Structure
QUICK PRODUCTION TIME, SAFE AND CONVENIENT LOGISTICS SERVICE

Our sufficient production capacity can assure You 35 days delivery time upon drawing approval.
Each window is individually packed by four layers, and then go into strong wooden boxes.
We send out windows and doors to USA weekly, can ensure that your products will arrive at the sites in good condition after long-distance transportation.

Packing and Logistics Process
CONCERNS FOR SHIPPING

Maybe this is your first time to import, do not understand import procedure; Or feel it is time-consuming to deal with customs, logistic & tariffs. You can just drop to us.
We can Provides one-stop door to door or DDP shipping service, handling all your import customs clearance & duties, truck delivery to Your appointed address with fair & transparent costs.

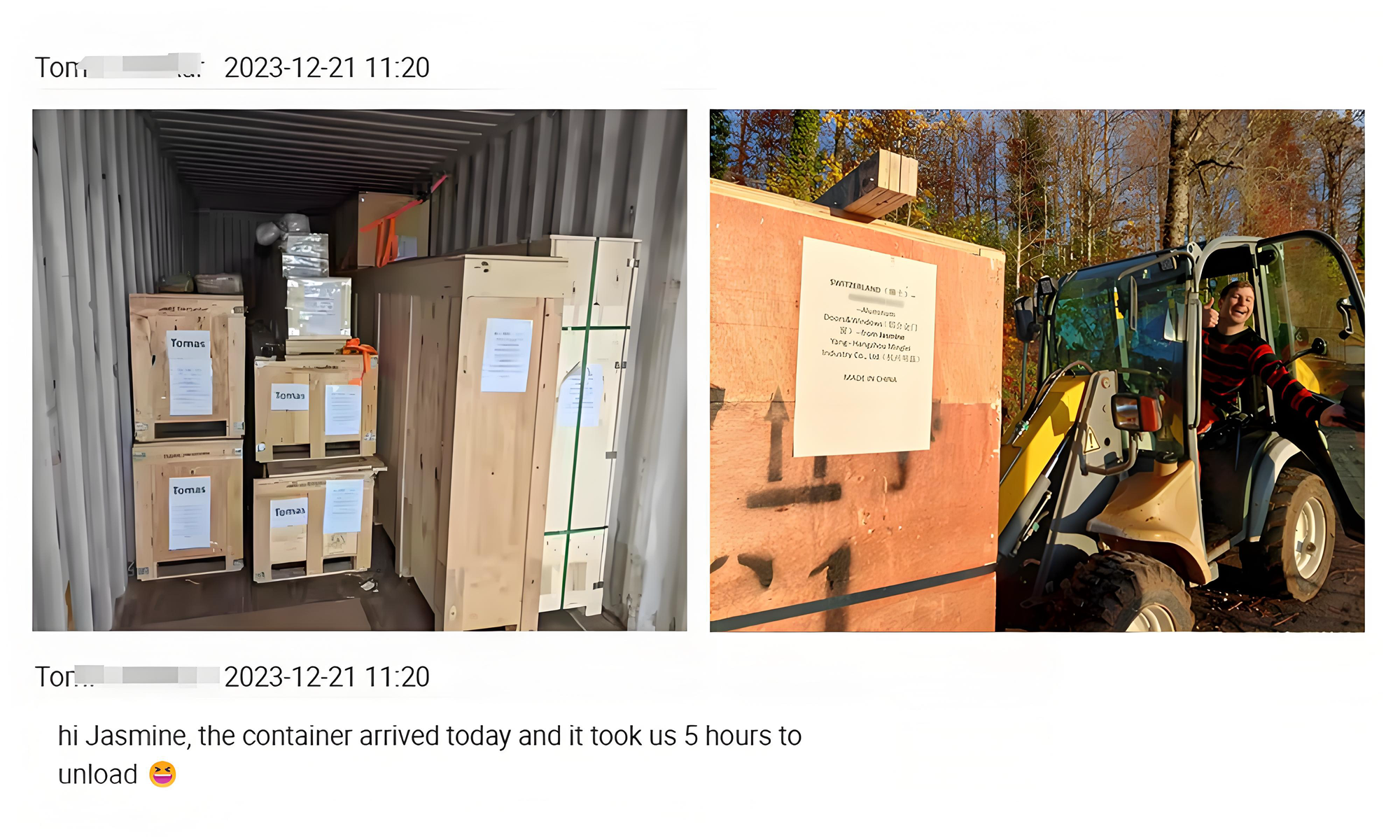

Shipping Workflow
AFTER SALE AND WARRANTY ARE GUARANTEED

No matter what issues You faced during the installation or after use , You will be treated as new customers and get fast response within 24 hours.
Minglei offers exceptional quality products and the best services. Customers are not only obtaining the most desirable windows and doors, but also getting the peace of mind that Minglei will stand behind its NFRC certified windows and doors for 10 years warranty.

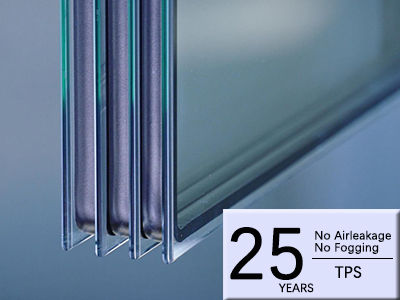

The TPS glazing unit ensures that no air leakage and fogging issues on (IGU) products for 25 YEARS WARRANTY.
Welcome to Contact us for Warranty policy

Warranty & Support Assurance
Project Case

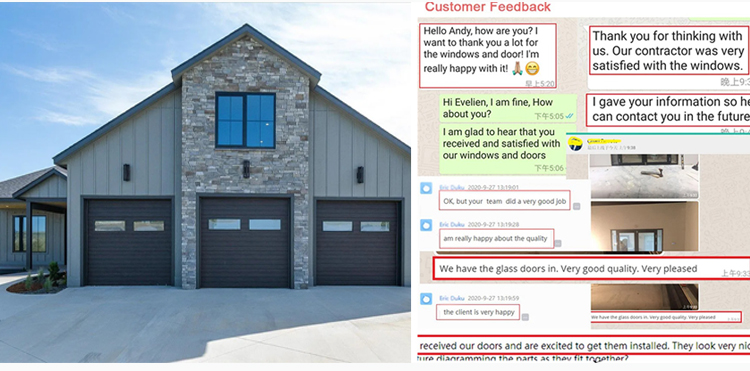

This project is a luxury mansion for a customer located in the Spokane WA USA; based on the client’s requirements and minglei’s solution, we recommended top-grade thermal insulation triple-glazed aluminum alloy doors and windows . Top-grade sound insulation, heat insulation and windproof materials were used in the doors and windows of the whole house. The customer was very satisfied.

Spokane WA Luxury Mansion Project
Project summary
1. Technoform Bautec warm edge strip greatly improves thermal insulation performance.
2. Roto & Siegenia German-made hardware systems provide higher strength, cutting-edge function, and aesthetics.
3. Tempered safety glass complies with international standards to face all kinds of extreme weather or safety issues.
4. Durable extruded aluminum nail fin makes the installation much easier and convenient, which greatly reduces labor costs.
5. After installations, the client’s feedback with full of satisfaction proving that Minglei provided the best solutions for each of our projects.
What Projects Can We Take?

Our windows and doors were applied on more than two hundred overseas projects, including commercial and residential buildings, villas, apartments, offices etc. and gained wide praises from customers like house owners, retailers, contractors and real estate developers etc.

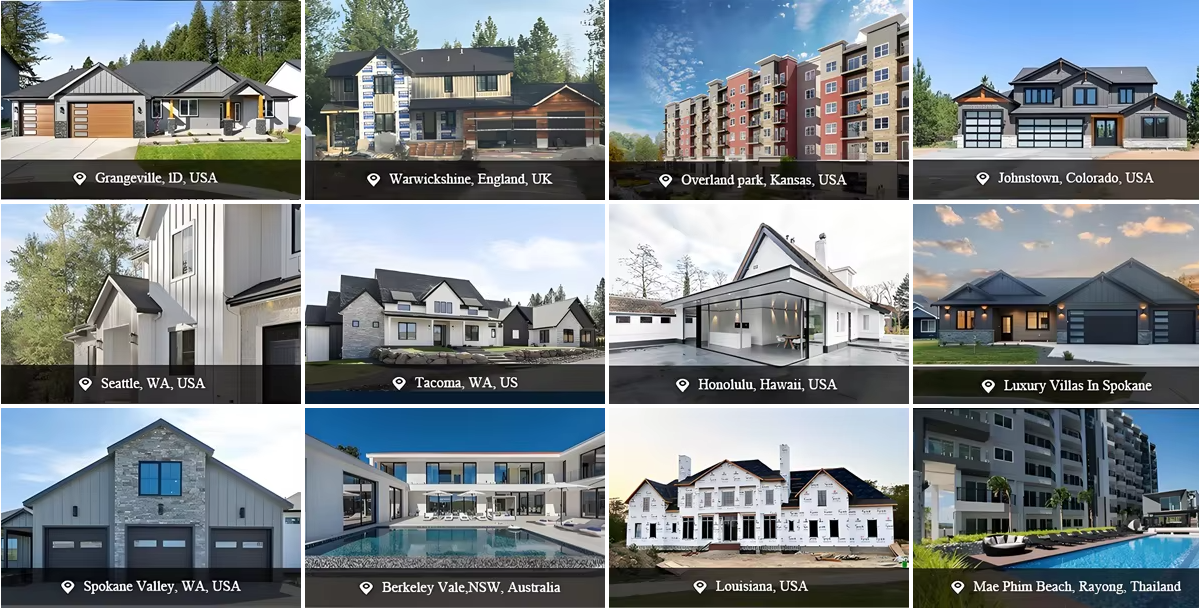

Global Architecture Projects Showcase
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are manufacturer and have our own trading company, which engaged in energy efficient windows & doors manufacturing with more than 10 years exporting experience.
Are your products Certificated?
Yes, so far, We have certifications and test reports of Canada Energy Star, USA NFRC, NAMI, AAMA, Australia AS2047 and CE etc.
What is about your window and door system?
We use Germany high insulation system with thermal break technology.
How can I know your price?
The price is based on buyer's specific requirement, so please provide below information to help us quote to you: 1) Project drawings or product size list or schedule; 2) Frame Color; 3) Type of glass and thickness (double, triple or laminated or others); 4) U value or U Factor requirements if clear about it.
Can you provide customized services? What personalized needs do you support?
As windows and doors are customized products, we manufacture according to customer’s specific requirements. We support comprehensive customization services, including: 1) Size customization; 2) Architectural shapes (round, triangle, arched shape etc.); 3) Opening method customization (inward opening, tilt-and-turn, outward opening, overhang, push-pull, etc.); 4) Color customization (RAL color chart available, two-tone spraying supported); 5) Glass configuration customization (Low-e, UV-resistant, anti-glare, soundproof glass, etc.); 6) Hardware upgrades (anti-pry locks, electric opening, etc.).
What is your warranty? What do we do in case of problems?
10 years quality warranty is provided, including frame unfading or peel-off, hardware and accessories working properly under correct operation. 10 years warranty for German hardware. In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days.
