Hinged Cabinet Doors Corrosion Resistance Aluminium Glass Cabinet Door Custom Aluminum Window Screen Frame
Product Description
Product Specifications
| Place of Origin | Italy |
| Brand Name | Elli S.r.l. |
| Surface Treatment | Raw / Customizable |
| Hardness | 55-60 HRB |
| Alloy Or Not | Alloy 60-60 |
| Yield (≥ MPa) | 160 MPa |
| Temper | T5 |
| Ultimate Strength (≥ MPa) | 200 MPa |
| Delivery Time | 10-30 Days |
Products Description

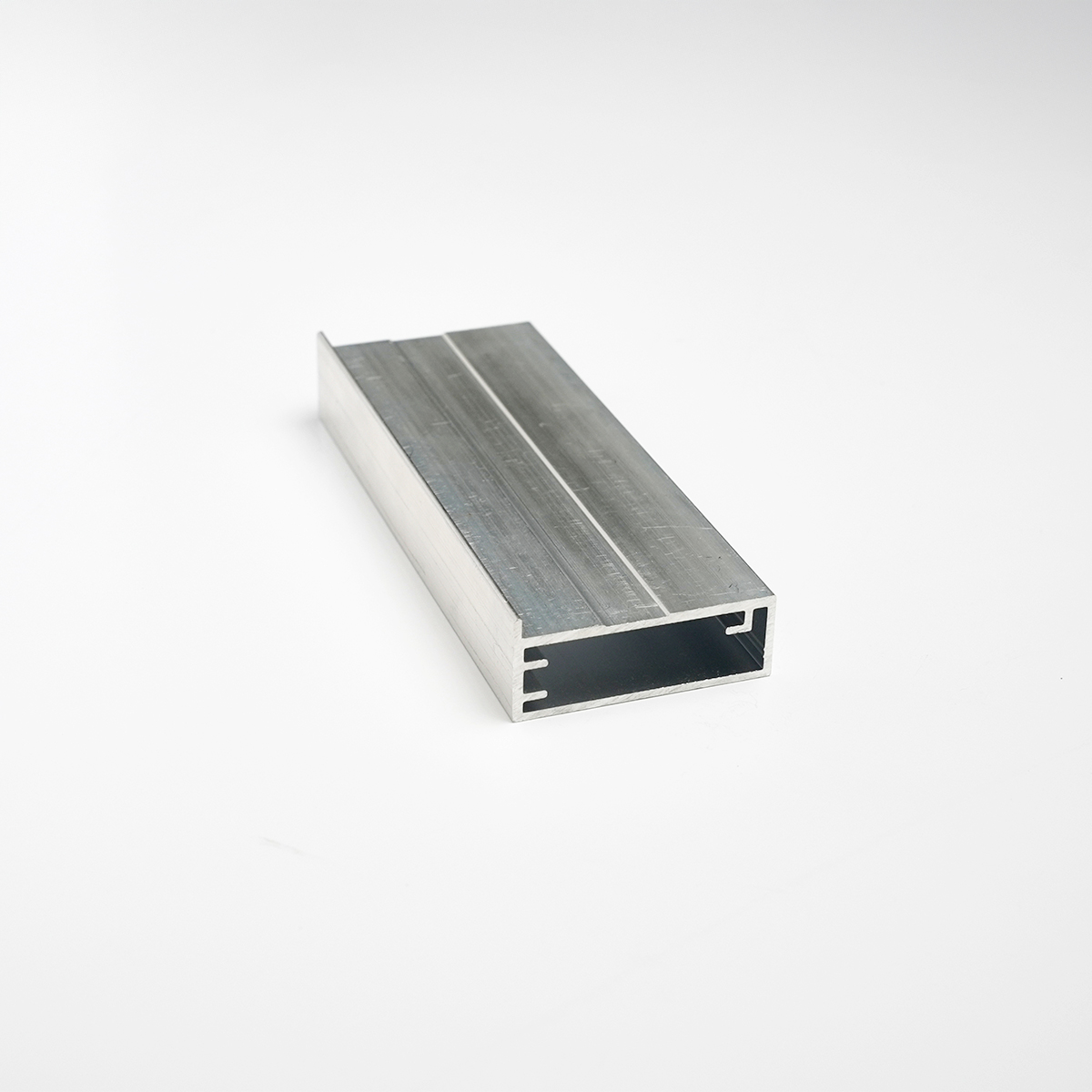

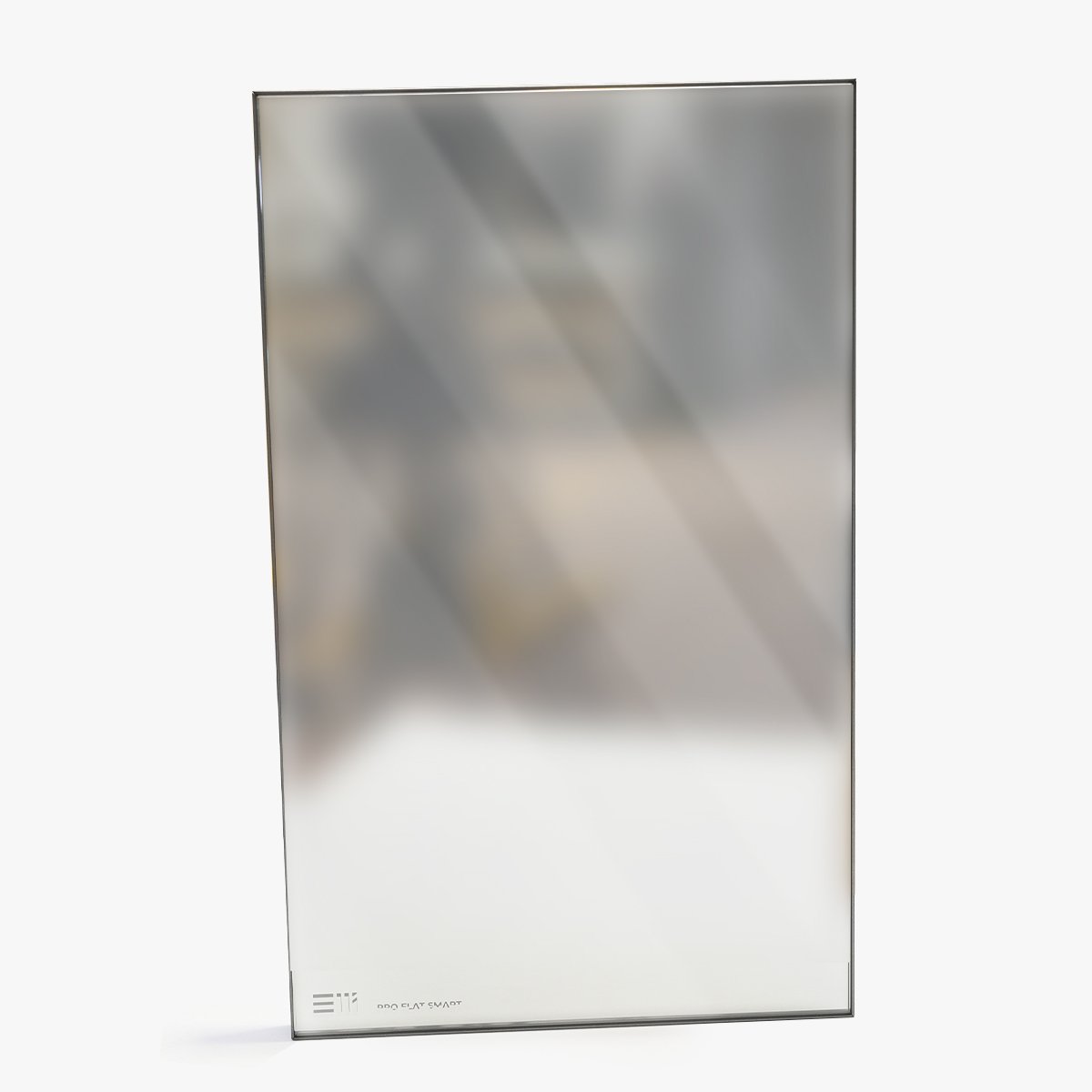

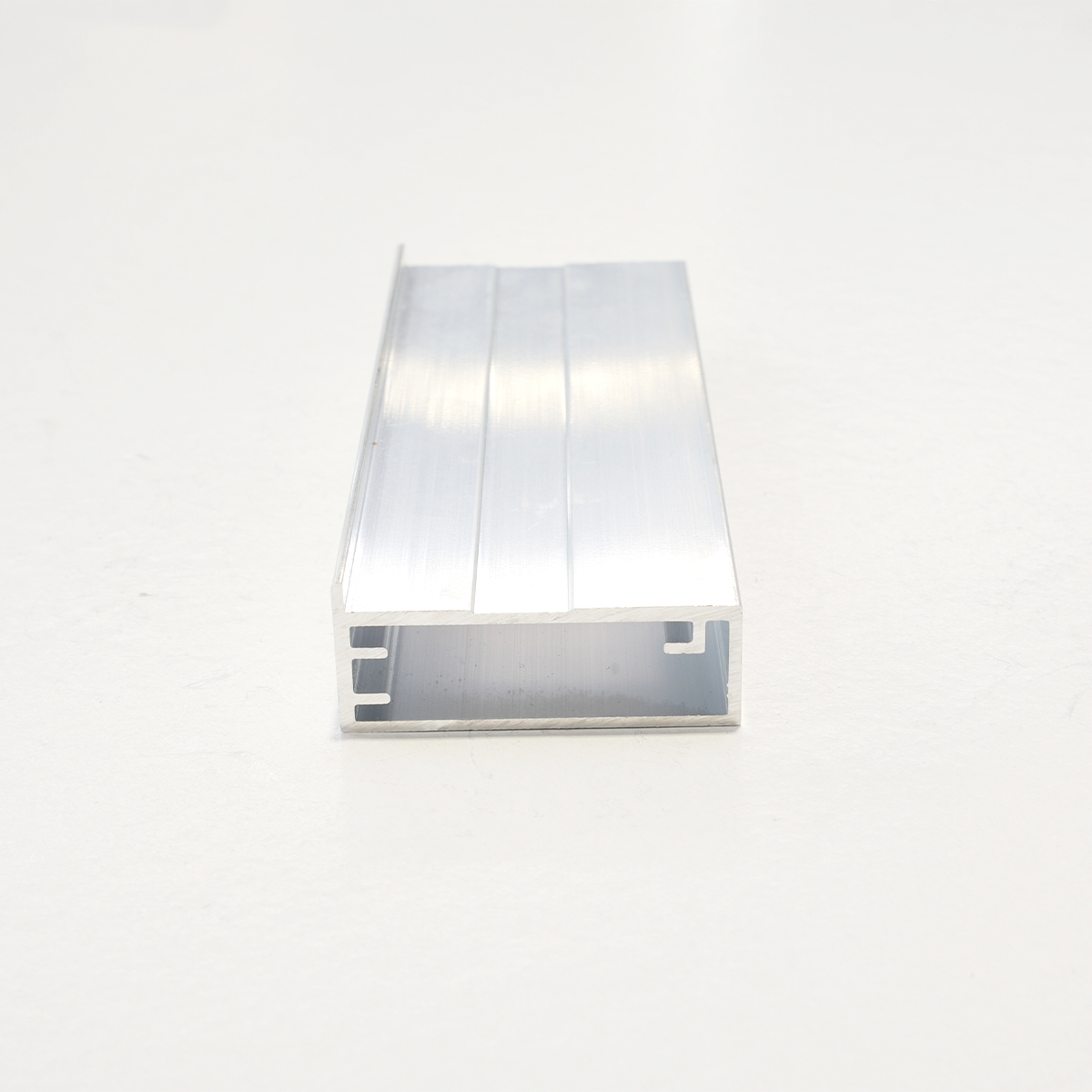

Pro Flat is an ultra-slim aluminum frame profile designed for hinged cabinet doors with a flush, frameless appearance. Made in Italy from extruded EN AW-6060 T5 aluminum, it accommodates 4 mm tempered glass or 4 mm decorative panels such as lacquered MDF or mirror-backed inserts, enabling a highly refined, integrated surface.
With a compact 20×22 mm cross-section, Pro Flat creates a nearly invisible perimeter that lets the glass or panel sit almost flush with the cabinet front. It also supports the use of a paint mask—a decorative frame insert that can be finished to match surrounding cabinetry or cover the glass edge for a seamless look. An optional recessed handle slot can be integrated into the profile, or it can be supplied in a fully flat version for push-to-open systems.
Pro Flat is compatible with standard concealed hinges (e.g. Salice Serie 200) and supports 105° or 94° opening, depending on the hinge type. It is available in various finishes including anodized, painted, or brushed coatings, allowing it to blend effortlessly with a wide range of design schemes.
Thanks to its sleek proportions and minimalist style, Pro Flat is ideal for modern kitchens, wardrobes, bathroom cabinetry, and custom furniture, especially where a uniform, continuous door surface is desired.
Material & Finish
High-strength anodized aluminum profile, corrosion resistance, Slim design available in polished, matte or painted finishes.
Insert Compatibility
Takes 4 mm tempered glass or thin panel. The frame’s low-profile face allows insertion of paint-compatible mask or mirror for a flush finish.
Handle Options
Optional recessed handle groove available; otherwise handle-less flat profile.
Hinges
Use with concealed hinges for aluminum doors; the profile’s low thickness requires hinges rated for slim doors.
Applications
Ideal for high-end cabinetry, creating seamless, flush-mounted door fronts in kitchens, bathrooms, wardrobes, and furniture with color-coordinated or mirrored door faces.
Product Gallery
Frequently Asked Questions
Q
How can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q
Can I buy samples?
Yes. Please feel free to contact us.
Q
What is your lead time?
It depends on the order quantity and the season you place the order. Typically, our delivery time is between 10 to 30 days.
Q
What thickness of glass or panel does the Pro Flat profile support?
It accommodates 4 mm tempered glass or 4 mm decorative panels such as lacquered MDF or mirror-backed inserts.
Q
Which hinges are compatible with this profile?
It is compatible with concealed hinges designed for slim aluminum doors (e.g., Salice Serie 200) and supports 105° or 94° opening angles.
Q
What finishes are available for the profile?
The profile is available in high-strength anodized aluminum, along with polished, matte, painted, or brushed coatings, as well as raw and customizable finishes.
