Modern Aluminium-Wood Composite Architectural Pivot Entry Door
Ud ≤ 0.82 W/(m²·K)
Anti-Theft Class RC2
Vertical Slats
Factory Selection
German-Targeted Aluminium Entrance Systems
Explore our precision-machined pivot and hinged systems manufactured with European-certified multi-point hardware, heavy-gauge alloy extrusions, and multi-chambered thermal insulation barrier plates.

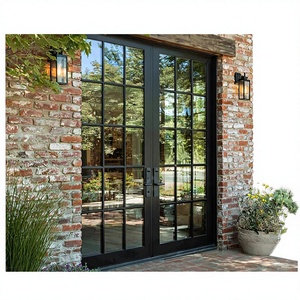

French Style Exterior Double Glazed Insulated Swing Door
Tempered Double Safety
EPDM Sealing
Industrial Black
Commercial & Villa Structural Stainless Steel Reinforce Pivot Door
Wind Load Class C5
Multi-Lock Locking
Custom Flush Panel
High-Soundproof Casement Entry Door with Triple Low-E Glazing
Rw = 43 dB Acoustic
Warm Edge Spacer
Argon Filled
Thermal Break Monoblock Infill Panel Aluminium Front Door
Polyamide PA66 Strip
Flush Coplanar
GEG 2024 Ready
RC3 Rated Anti-Theft Heavy Duty Residential Haustür System
5-Point Hook Lock
Hardened Steel Core
Anti-Drill Cylinder

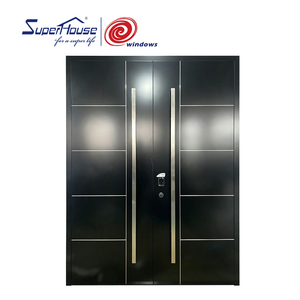

Smart-Integrated Double Leaf Architectural Entrance Door
Biometric Scanner
RAL 7016 Anthracite
Motorized Latches
Minimalist Framed Full Pivot Door System for Luxury Villas
Floor Spring Concealed
Self-Closing Damped
Oversized Formats
DIN EN 14351-1 Technical Blueprint
Engineering Compliance for the German Building Sector
Direct factory fabrication must satisfy the stringent legal conditions laid out in Germany’s Building Energy Act (Gebäudeenergiegesetz - GEG). Below are the verified operational parameters delivered directly from our Foshan production facility.
| Performance Standard | German / European Code | DERCHI Engineering Specification | Architectural Application |
|---|---|---|---|
| Thermal Transmittance (Ud) | DIN EN ISO 10077-1 / GEG 2024 | 0.72 - 0.88 W/(m²·K) with Aerogel + PU Core Infill | Passivhaus & KfW 40 / 55 Efficiency Standards |
| Burglary Protection | DIN EN 1627 - RC2 to RC4 | Multi-point automatic gear hooks, hardened P6B laminated glass, anti-drill rosette | High-security residential villas & urban commercial complexes |
| Air Permeability | DIN EN 12207 Class 4 | Triple continuous EPDM vulcanized sealing gaskets with vulcanized corners | Blower-Door test airtightness verification |
| Watertightness | DIN EN 12208 Class 9A / E900 | Multi-chamber subterranean base drain drainage groove system | Severe wind-driven rain defense across North Sea & Baltic coastal belts |
| Surface Protection | Qualicoat Seaside Class 2 | 60-80 μm fluorocarbon or ultra-durable powder coating (Tiger/AkzoNobel) | Extended UV resistance, salt-mist resistance without color drift |
Geographic Tailoring
Engineered Scenarios for Regional German Climates
Germany features diverse microclimates and strict regional building codes (Landesbauordnungen). We adapt frame depth, glass packages, and threshold engineering to fit precise municipal site conditions.
Coastal North (Hamburg, Kiel, Rostock)
Exposed to severe driving rain, gale-force winds from the North/Baltic Seas, and salt spray. Our systems incorporate Qualicoat Seaside Class 2 anodized finishes, stainless steel Grade 316 concealed bearings, and a stepped-drainage sub-threshold profile to prevent capillary water intake under heavy pressure loads.
Alpine South (Bavaria & Baden-Württemberg)
Demands maximum structural insulation against sub-zero winters, heavy snow loads, and wide diurnal temperature shifts that cause thermal deflection (Bi-metal effect). We use anti-bi-metal split insulating strips in 90mm-depth frames to guarantee seamless locking and zero warping between indoor heating and -20°C outdoors.
Urban Densification (Berlin, Frankfurt, Munich)
Inner-city apartment blocks, modern townhouses, and mixed-use luxury properties where traffic acoustic reduction (VDI 2719 Sound Insulation Class 4/5) and RC3 anti-burglary certified locks are non-negotiable. Equipped with laminated acoustic safety glass and motorized smart access integrating into central KNX building management systems.
Future Forecasting
Market Trends in German Architectural Entrances
The German entrance door sector is moving beyond basic aesthetics toward holistic ecological footprint optimization, intelligent barrier-free living, and striking architectural scale.
Strict GEG & KfW 40 Alignment
German subsidies mandate extreme energy efficiency. Standard aluminium systems are being replaced by high-insulation cores reaching U-values ≤ 0.8 W/(m²·K) to obtain BAFA federal grant approvals.
DIN 18040-2 Zero-Thresholds
Barrierefreies Bauen (Barrier-free construction) requires zero-millimeter floor-level thresholds with active mechanical drop-down seals that block wind and rain without trip hazards for elderly accessibility.
Smart Access Control
Integration of biometric fingerprint scanning (eKey compatible), RFID readers, Bluetooth low-energy encryption, and hidden emergency mechanical key-override cylinders concealed within sleek architectural flush pulls.
Oversized Pivot Formats
Architects are specifying single-leaf dimensions up to 2.5m wide and 4m high. Thermal-break pivot technology enables monolithic entrance statements with smooth, balanced self-closing hydraulic pivots.
Direct Manufacturer Infrastructure
Why Top European Distributors Rely on DERCHI
Backed by Guangdong Dejiyoupin Doors and Windows Co., Ltd., we combine large-scale manufacturing capacity with artisan precision to supply project containers across Hamburg, Bremen, and Rotterdam ports.
180,000 m²
Integrated Factory Base
600+
Skilled Craftsmen & Engineers
100+
Patents & Global Certifications
25+ Years
R&D Precision Engineering
Certified Production Control
Our production protocols are audited under ISO9001 and CE factory standards. We source 6063-T6 virgin primary billet aluminium and run high-tolerance CNC corner-crimping routines that match German window fabricators.
Complete OEM / ODM Flexibility
From CAD/BIM shop drawings to custom extrusion dies and exact RAL shade matching (including fine-texture DB 703 and RAL 7016 Anthrazitgrau), our technical sales team supports German projects from bid to delivery.
Export-Grade Protective Packaging
Every unit is sealed with protective peel-off film, protected with high-density EPE shock absorption foam, reinforced with heavy corner protectors, and securely packed into fumigated solid plywood crates for sea freight.
Procurement Guidance
Frequently Asked Questions by German Importers & Contractors
Get authoritative answers on import regulations, CE documentation, customs clearance, and structural performance.
Do your aluminium entrance doors meet the current German GEG (Gebäudeenergiegesetz) requirements? +
Yes. The current GEG mandates a maximum Ud-value of 1.30 W/(m²·K) for entrance doors in residential construction. Our multi-chamber thermal-break systems (utilizing 34mm to 42mm fiberglass-reinforced polyamide insulating bars combined with high-density polyurethane foam insulation panel inserts) achieve Ud values ranging from 0.72 to 0.88 W/(m²·K). These numbers satisfy both standard GEG requirements and the strict criteria for KfW 40 / Passivhaus subsidized retrofits.
Can you provide CE Marking and Declaration of Performance (DoP) under EN 14351-1? +
Absolutely. Every batch exported to Germany comes with complete CE marking and corresponding Declaration of Performance documentation. This verifies tested performance for wind load resistance (EN 12210), watertightness (EN 12208), air permeability (EN 12207), and acoustic attenuation (EN ISO 10140-2), allowing straightforward review by building inspectors (Bauamt) and structural engineers.
How does your factory prevent the "Bi-Metal Effect" common in dark anthracite entrance doors? +
Dark external colors such as RAL 7016 Anthracite absorb substantial solar heat, reaching exterior temperatures above 75°C while indoor surfaces remain at 21°C. To prevent the resulting frame bowing and latch misalignment, we incorporate patented anti-distortion insulating strips (glide-bars/split thermal breaks). This allows the inner and outer aluminium profiles to expand and contract independently, preventing latch jamming and draft leaks.
What hardware brands are fitted on your doors, and can they link to Smart-Home systems? +
We partner with premier hardware manufacturers including Winkhaus, Siegenia, and GU (Gretsch-Unitas), alongside our heavy-duty in-house stainless components. We supply automatic multi-point locking gears (auto-locking latches) and fully motorized electronic locks compatible with DIN-standard key cylinders, fingerprint scanners (eKey compatible), code keypads, and building intercoms operating on standard 12V-24V DC bus infrastructures.
What is the lead time, shipping port, and minimal order quantity (MOQ) for German B2B clients? +
Our flexible manufacturing lines accommodate both single-unit bespoke villa doors (MOQ: 1 set for custom architectural orders) and large developer volumes (FCL 20GP/40HQ containers). Custom production takes between 25 and 35 working days after sign-off of final CAD drawings. We export directly from Foshan/Shenzhen/Guangzhou ports to Hamburg, Bremerhaven, or Rotterdam under FOB, CIF, or DDP terms.
Initiate Your Direct Factory Specification for Germany
Send your project dimensions, door schedules, or architectural tender blueprints. Our bilingual engineering division will provide detailed CAD drawings, calculated Ud-value simulations, and wholesale FOB/CIF price quotes within 24 hours.
