Engineered Aluminium Ventilation & Glazing Solutions
High-precision aluminium building envelopes tailored for rigorous international compliance, optimized aerodynamic air exchange, acoustic insulation, and thermal efficiency.

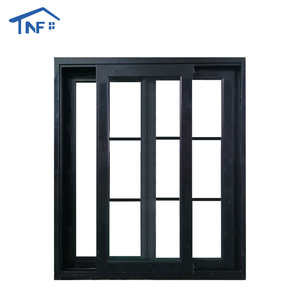

Custom NFRC AS2047 Thermal Break Aluminum Waterproof Double Tempered Low-e Glass French Sliding Windows
Multi-track sliding profiles incorporating micro-ventilation locks, PA66 thermal barriers, and heavy-duty water-shedding sill tracks.

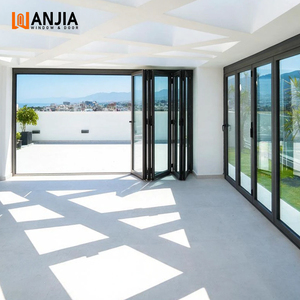

Heavy Duty Coastal Glass Commercial Doors Folding Glass Door Thermal Breaking Glass Bifold Doors
Continuous flush threshold integration designed for massive air-flushing spans, saltwater corrosion immunity, and extreme structural wind loads.

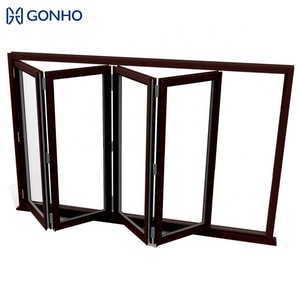

GONHO New Design Custom Champagne Color Accordion Folding Window Aluminum windows and Doors
Maximizes clear opening area up to 95% for enhanced natural convection air exchange across modern residential and high-end hospitality designs.

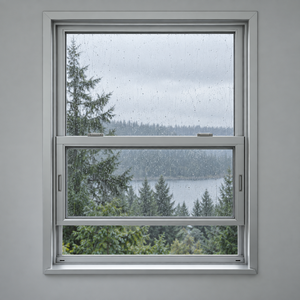

Modern Sliding Colonial Window Designs Single and Double Hung with Glass Grill-Economical Sash Standard
Dual-sash counterbalanced operation designed to draw cool low-pressure air at the sill while venting warm interior air via upper sashes.

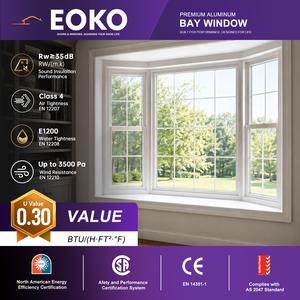

EOKO Custom Aluminum Bay and Bow Window with Double Glazing Thermal Break Window for Energy Efficient Houses
Multi-facet structural bay configurations engineered to redirect cross-breezes inside while keeping perimeter heat transfer strictly controlled.

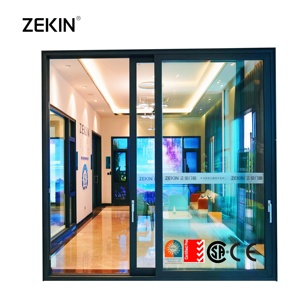

Customized Modern Panoramic Sliding Door AS2047 NFRC House Aluminum Frame Energy Efficient Sliding Glass Door
Narrow visual sightlines with concealed trickle-vent pathways, providing continuous passive airflow without compromising security or weatherproofing.

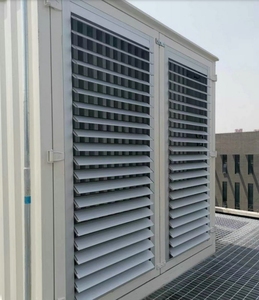

Automatic Aluminum Window Exterior Shutters Louvres Frame System Modern Design ISO9001 Certified Outdoor Use
Motorized aerodynamic louvres responding dynamically to indoor CO2 and outdoor wind pressure for automated, storm-safe passive cooling.

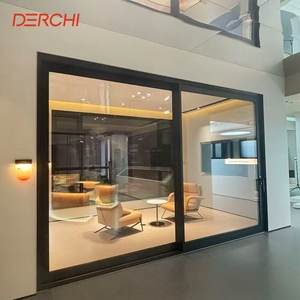

Florida Approved Hurricane Impact Windows And Doors Exterior Large Lift Sliding Patio Doors Double Glazed
Heavy-gauge 6063-T6 profiles tested for +4500Pa wind loading, featuring high-performance perimeter gasket decompression during vent mode.
The Aerodynamics & Thermal Physics of Modern Aluminium Ventilation Windows
Overcoming the historic trade-off between controlled building envelope air permeability and high-efficiency thermal containment.
In contemporary architectural engineering, the aluminium ventilation window has transitioned from an ordinary hardware component into an active building-physics regulator. The rapid enforcement of strict net-zero building codes—including ASHRAE 90.1, Australia's NCC BCA Section J, and the European Union’s Energy Performance of Buildings Directive (EPBD)—mandates that building envelopes minimize uncontrolled air infiltration while providing predictable, hygienic fresh air exchanges (ACH). Achieving this delicate equilibrium demands fenestration profiles manufactured with precision tolerances, advanced polyamide thermal barriers (PA66 GF25), and calibrated fluid dynamics inside window sash chambers.
Micro-Ventilation Aerodynamics vs. Mechanical HVAC Loads
A primary objective of engineered aluminium ventilation window systems is the reduction of baseline mechanical heating and cooling cycles. Traditional tilt-and-turn and casement profiles often cause excessive draft speeds and sudden indoor thermal drops when fully open. In contrast, modern Chinese manufacturing centers on integrated aerodynamic pressure-relief vents, acoustic micro-louvres, and multi-stage sash positioning hardware.
By leveraging Bernoulli's principle of differential pressure across exterior facades, micro-ventilation ports generate controlled air suction along the upper third of the window reveal. This introduces fresh outdoor air at low velocities (<0.2 m/s), allowing it to mix seamlessly with rising warm indoor convection currents before descending to the living zone. The outcome is continuous indoor air quality (IAQ) compliance without cold spots, moisture condensation along the frame rebate, or energy waste in chilled HVAC zones.
| Ventilation Mechanism | Airflow Yield (ACH @ 10Pa) | Acoustic Damping (Rw) | Watertightness Rating | Best Architectural Fit |
|---|---|---|---|---|
| Trickle / Slot Vent with Acoustic Baffle | 15 - 30 m³/h per unit | 38 - 42 dB | Class E1050 (1050 Pa) | Urban Mid-Rise, High-Noise Zones |
| Dual-Action Tilt & Parallel Vent | 45 - 80 m³/h per unit | 34 - 38 dB | Class E900 (900 Pa) | Commercial Offices, High-End Condos |
| Motorized Adjustable Aerodynamic Louvres | 120 - 320 m³/h per unit | 28 - 32 dB | Class E750 (750 Pa) | Tropical Resorts, Coastal Villas, Atriums |
| Counterbalanced Double-Hung Thermal Sashes | 70 - 140 m³/h per unit | 32 - 36 dB | Class E600 (600 Pa) | Heritage Retrofits, Educational Facilities |
Furthermore, managing galvanic corrosion and thermal bridge failure in tropical, humid, or salt-laden ocean air requires strict architectural metallurgy. Leading Chinese manufacturers utilize premium primary ingot 6063-T6 or 6061-T6 structural aluminium extrusions with wall thicknesses ranging between 1.8mm and 3.0mm. Combined with 25-micron architectural anodization or Qualicoat Class 3 fluorocarbon (PVDF) electrostatic coatings, these systems deliver verified service lifespans exceeding 35 years in aggressive coastal C4/C5 marine environments.
Future Procurement Trends for Aluminium Ventilation Windows
Key supply chain, regulatory, and architectural shifts redefining how international developers, contractors, and importers source from China.
1. Pre-Engineered BIM & Digital Twin Direct Integration
Global procurement teams are shifting away from 2D shop drawings toward parameter-rich Revit and IFC BIM objects provided directly by Chinese factory engineering desks. By integrating digital twin fenestration data—including verified U-values, solar heat gain coefficients (SHGC), and CFD aerodynamic airflow curves—general contractors can streamline clash detection and avoid costly site-level retrofitting before the first aluminium profile is cut.
2. Strict Carbon Accounting & Circular Extrusion Auditing
Institutional commercial developers across North America, the UK, and the EU now mandate Environmental Product Declarations (EPDs) for fenestration imports. Chinese Tier-1 suppliers are actively transitioning toward hydroelectric and solar-smelted low-carbon primary aluminium, backed by scrap recycling rates exceeding 40%. Procuring certified low-carbon aluminium windows is becoming essential for securing LEED Platinum and BREEAM Outstanding project ratings.
3. Single-Source Full Building Fenestration Packages
Importers are increasingly avoiding fragmented supply chains. Instead of buying sliding doors, curtain-wall elements, entry pivot doors, and louvres from disparate regional workshops, large-scale developments rely on expansive manufacturing campuses capable of consolidating impact-tested, color-matched, and warranty-aligned architectural systems into unified containerized ocean shipments.
Technology & Design Vectors Driving Next-Gen Window Systems
Pioneering innovations emerging from Guangdong’s advanced industrial fenestration clusters.
Automated Sensor-Driven Micro-Ventilation Actuators
Next-generation systems embed ultra-compact, concealed 24V linear brushless servomotors directly inside the sash profile rebate. Connected to interior air-quality sensors monitoring volatile organic compounds (VOCs), indoor humidity, and PM2.5 particulate levels, these windows automatically crack open by 10mm–15mm to initiate natural cross-ventilation, automatically securing themselves when external rain or wind-load thresholds are exceeded.
Multi-Cavity Polyamide Barriers with Aerogel Insulation
To satisfy zero-energy thermal targets in harsh continental environments, the traditional single-cavity thermal strip is being replaced by 34mm–54mm multi-chambered PA66 GF25 insulative struts infused with silica aerogel fleece. This leap lowers the fenestration frame U-value (Uf) below 1.0 W/m²K, matching triple-glazed insulated glass unit (IGU) performance without adding bulky profile depths.
Acoustic Aerodynamic Attenuation Chambers
One of the most persistent issues in urban high-density developments is noise pollution entering through natural ventilation louvres. Innovative patented baffle designs utilize sinusoidal internal channel geometries lined with hydrophobic, fire-resistant acoustic foams. These chambers disrupt sound pressure wave harmonics, delivering an acoustic reduction of up to 42 dB Rw while sustaining continuous convective airflow.
Guangdong Dejiyoupin Doors & Windows Co., Ltd. (DERCHI)
Ranked among China's Top 10 high-performance fenestration brands, DERCHI operates as a vertically integrated engineering power base in Foshan, Guangdong. Backed by more than 25 years of specialized R&D, we manufacture and export world-class aluminium ventilation windows, massive entry doors, hurricane-rated sliding systems, and commercial façade elements directly to developers, architects, and contractors across 60+ countries.
Our systems hold Australian AS2047 N6 cyclonic certification, European CE compliance, NFRC thermal performance marks, and Florida Hurricane Impact approvals for seamless municipal inspection clearance.
Every overseas order is backed by full shop drawing preparation, structural wind-load calculation reports, and custom extrusion configurations before manufacturing commences.
All units feature protective film wrapping, corner guards, and are packed into steel-reinforced fumigated timber crates. We guarantee zero transit deformation to global container ports including Lagos, Mombasa, Durban, Long Beach, and Sydney.
Frequently Asked Questions on Aluminium Ventilation Windows
Direct technical and procurement insights from our senior fenestration export engineers.
High-performance ventilation windows incorporate dual or triple continuous co-extruded EPDM/perfluoroelastomer compression gaskets. When closed, multi-point locking cams draw the sash securely against the outer frame with uniform perimeter pressure. Specialized trickle vents include gravity-balanced silicone flappers and internal water baffles that seal automatically under elevated wind-pressure differentials (>300Pa), preventing wind-driven rain penetration up to Class E1050 ratings.
For buildings located within 1.5 km of ocean shorelines or subject to high ambient humidity (such as coastal West Africa, Florida, or the Caribbean), we mandate Qualicoat Class 3 PVDF fluorocarbon coatings (70% Kynar 500 resin base) or high-density architectural anodization exceeding 25 microns (Class AA25). These finishes resist salt-fog etching, blistering, and intense UV fading, passing 3,000+ hours of continuous ASTM B117 neutral salt spray testing.
Yes. We supply comprehensive testing documentation accredited under global standards. This includes Australian AS2047 and AS1288 wind, water, and deflection test records; European CE EN 14351-1 declarations of performance; NFRC solar and thermal calculation sheets; and factory ISO9001 quality audits. For African imports, we routinely provide SONCAP (Nigeria), KEBS PVoC (Kenya), and NRCS (South Africa) pre-shipment compliance packs.
Custom architectural orders require 25 to 35 calendar days for production following client sign-off on detailed CAD fabrication shop drawings. For standard RAL powder-coat colors, lead times are faster; custom fluorocarbon, dual-color, or specialized anodized batches take closer to 35 days. Ocean shipping transit varies by port: roughly 30–40 days to major African ports, 20–28 days to the US West Coast, and 16–22 days to Australia.
All DERCHI ventilation profiles can be ordered with integrated micro-mesh insect screens, available in marine-grade 304 or 316 stainless steel high-tensile mesh (often termed "security diamond mesh"). These screens prevent insect entry while resisting blade-slashing and forced entry. Micro-ventilation sash limiters can be keyed or locked from inside, allowing fresh air into bedrooms or offices at night while keeping the sash locked against intruders.
Every delivery includes comprehensive installation manuals, exploded 3D component diagrams, and profile cross-section guides. Sub-frames, installation cleats, and trim profiles are labeled to match the window schedules. Furthermore, our senior English-speaking project engineering team provides live video support to guide contractor site supervisors through levelling, anchor-bolt fastening, perimeter expansion jointing, and hardware adjustment.
Connect Directly with DERCHI Fenestration Engineers
Send us your window schedules, rough structural opening sizes, or project architectural CAD drawings. Our Foshan engineering team will prepare structural calculations, glass performance assessments, and an itemized factory-direct quote within 24 hours.
