Hurricane Impact Bi-Fold Soundproof Window
Multi-chamber 6063-T6 thermal extrusions equipped with heavy impact laminated glass.
Architectural Fenestration Portfolio
Precision Engineered Window & Door Assemblies
Factory-direct commercial-grade systems compliant with CE, ISO9001, AS2047, and North American NFRC performance standards.
Tempered Glass Architectural Sliding Window
Ultra-silent tandem rollers with dual-perimeter brush-and-EPDM compression seals.
NFRC Thermal Break Exterior Stacking System
Engineered thermal barrier profiles with continuous perimeter seals for maximum efficiency.
Minimalist Slim Profile Sliding Glass System
Ultra-narrow sightline design for maximum glazing exposure and panoramic views.
Grand Security Architectural Pivot Door
Integrated German concealed hydraulic pivots with multi-point anti-intrusion locks.
Hydraulic Soft-Close Interior Folding Partition
Top-hung zero-threshold floor track design offering barrier-free movement.

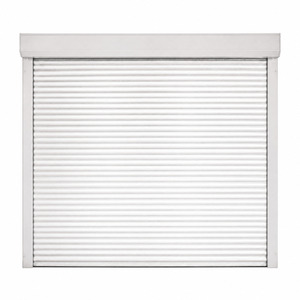

Motorized High-Security Shutter Fenestration
Heavy extruded slats with insulated cores providing solar shielding and typhoon protection.
Marine Grade Moisture-Resistant Glazed Unit
Sealed anodized chamber structure engineered for extreme humidity resistance.
180,000㎡
Industrial Production Base
600+
Certified Engineers & Craftsmen
100+
Patents & Global Certifications
AS2047 N6
Highest Wind & Impact Tier
Tier-1 Industry Benchmarking
Top 10 Aluminium Tilt Turn Windows Factory & Suppliers
A deep-dive technical comparison evaluated by engineering teams, factoring in thermal efficiency, hardware durability, CNC precision, and international logistics execution.
| Manufacturer / Brand | HQ / Operational Base | Core Hardware Integration | Thermal U-Value Range | Structural Compliance | Procurement Advantage |
|---|---|---|---|---|---|
| 1. DERCHI Fenestration Systems | Foshan, China (180,000㎡) | Siegenia / Sobinco / HOPPE | 0.82 – 1.2 W/m²K | CE, AS2047 N6, ISO9001, UL | Factory Direct, Full Custom Shop CAD, One-Stop Mixed Shipping |
| 2. Schüco International | Bielefeld, Germany | Proprietary Schüco SimplySmart | 0.78 – 1.1 W/m²K | DIN EN 14351, Passive House | Tier-1 architectural prestige, premium specification tier |
| 3. Reynaers Aluminium | Duffel, Belgium | Reynaers MasterLine | 0.85 – 1.3 W/m²K | Qualicoat, Cradle to Cradle | Complex architectural façades, ultra-large glass spans |
| 4. WICONA (Hydro Group) | Ulm, Germany | WICSTYLE Concealed Systems | 0.79 – 1.2 W/m²K | Hydro CIRCAL, DIN Standards | Low-carbon recycled aluminium billets, institutional sustainability |
| 5. Alumil Group | Kilkis, Greece | Alumil Supreme Tilt-Turn | 0.90 – 1.4 W/m²K | IFT Rosenheim, CE Marking | Cost-effective European profile extrusions, regional hubs |
| 6. YKK AP Inc. | Tokyo, Japan / USA | Commercial Heavy Hardware | 1.10 – 1.6 W/m²K | AAMA, ASTM E283/E330 | High structural endurance against seismic and wind loads |
| 7. Kawneer (Arconic) | Norcross, GA, USA | Custom Architectural Concealed | 1.00 – 1.5 W/m²K | NFRC, AAMA Commercial | North American commercial building standard integration |
| 8. Cortizo Architectural | Padrón, Spain | Cortizo COR-70 / COR-80 | 0.88 – 1.3 W/m²K | AENOR, CE Markings | Rapid European delivery, sleek slim profiles |
| 9. Technal | Toulouse, France | Soleal Tilt-Turn Dual Open | 0.84 – 1.2 W/m²K | BREEAM, LEED Compliant | High acoustic attenuation ratings (up to 46 dB Rw) |
| 10. Internorm International | Traun, Austria | I-tec Smart Glazing / Hinges | 0.62 – 0.95 W/m²K | Passivhaus Institut Darmstadt | Extreme sub-zero insulation via composite thermal barriers |
2026 – 2030 Procurement Foresight
Structural Shifts in B2B Tilt-Turn Window Sourcing
How global environmental directives, smart hardware automation, and factory-direct consolidation are reshaping international supply chains.
Supply Chain Consolidation
Developers are bypassing multi-tiered local distribution channels. Direct engagement with Foshan manufacturing hubs like DERCHI reduces procurement expenditures by 25–40% while preserving engineering fidelity through factory-supervised BIM and CAD coordination.
Thermal Break Evolution
The standard 24mm polyamide (PA66 GF25) thermal strip is being phased out in favor of 34mm–45mm multi-cavity, aerogel-infused barrier systems. This enables commercial projects to achieve whole-unit U-values below 0.85 W/m²K without excessive profile depths.
Automated Concealed Hardware
Visible surface hinges are giving way to 180° flush concealed mechanisms capable of holding 200kg–300kg sash loads. Furthermore, integration with central Building Management Systems (BMS) for motorized tilt ventilation is now a priority for hospitality and luxury residential projects.
Material Science & Mechanics
Evolution of Tilt-Turn Engineering & Mechanics
Tilt-turn windows operate via a perimeter drive-gear mechanism. Understanding their mechanics ensures structural integrity under extreme wind loads and coastal exposures.
Multi-Point Perimeter Compression
Unlike standard casements that latch at one or two points, tilt-turn windows engage an interlocking series of mushroom-head locking cams around the entire perimeter sash, ensuring class-leading airtightness (EN 12207 Class 4) and water resistance (EN 12208 Class 9A).
Fluorocarbon (PVDF) Surface Durability
Coastal and tropical projects demand finishes that resist corrosive salt spray and high UV radiation. Modern facilities deploy vertical powder coating lines and 3-coat PVDF processes exceeding 80 microns, passing 3,000-hour continuous salt spray tests without peeling or chalking.
Dual-Mode Architectural Aerodynamics
By rotating the ergonomic handle 90°, the window swings open inward like a standard door for safe cleaning and maximum egress. At 180°, the top tilts inward 100mm–150mm for draft-free, rain-proof continuous background ventilation even during severe storm fronts.
Manufacturing Authority
Why Tier-1 Contractors Partner with DERCHI
Operating from Foshan, Guangdong Dejiyoupin Doors and Windows Co., Ltd. blends German CNC fabrication standards with scalable production output.
180,000㎡ Scaled Factory Floor
Equipped with 5-axis computerized CNC profile processing lines, automated corner crimping stations, and robotic double-pane glazing cells, ensuring sub-millimeter sash tolerances across large volume multi-family and commercial orders.
Rigorous Multi-Region Certification
Our tilt-turn and entry systems hold genuine CE conformity, ISO9001 quality certificates, Australian AS2047 (N6 cyclical wind rating), and North American NFRC/UL fire-rated test reports, enabling project sign-offs by local building inspectors.
One-Stop Ocean Cargo Consolidation
Consolidate your entire fenestration package—tilt-turn windows, ultra-slim patio sliders, cast aluminum security pivot doors, and garage shutters—into dedicated sea containers. Export-grade individual plywood crating protects finishes through ocean transit.
Procurement Due Diligence
Frequently Asked Questions for Window Importers
Key structural and operational questions addressed by our senior fenestration engineers.
What makes aluminium tilt-turn windows structurally superior to standard casement windows?
Tilt-turn windows incorporate a continuous perimeter drive gear that operates multiple locking pins around the frame, rather than relying on one or two locking latches. When engaged, this mechanism compresses the sash evenly against dual or triple vulcanized EPDM gaskets. The result is superior thermal retention, acoustic reduction (often exceeding 40 dB with laminated IGU glass), and air and water resistance up to Hurricane Tier N6 compliance.
Can custom architectural shop drawings (CAD/BIM) be produced prior to factory order commitment?
Yes. Our in-house engineering team provides complete 2D CAD sectional details, glass stress calculations, and 3D installation schematics matched to your structural opening schedule. Production begins only after the client, architect, or structural engineer signs off on all dimensions, thermal breaks, and hardware specifications.
How do you prevent galvanic corrosion and surface degradation in coastal environments?
For coastal installations (e.g., Lagos, Durban, Miami, Sydney), we specify marine-grade 6063-T6 or 6060-T6 primary aluminum billets treated with an anti-corrosion pre-wash, followed by fluorocarbon (PVDF) coatings or Qualicoat Class 2 powder coats. All fasteners, hinge pins, and internal screws are fabricated from Grade 304 or 316 stainless steel to eliminate galvanic corrosion risks.
What are the recommended glass configurations for tropical vs. cold-climate projects?
For hot, high-solar environments, we recommend double or triple glazing with Solar-Control Low-E on surface #2, filled with 90% Argon gas to deflect solar heat gain (SHGC < 0.25). For sub-zero and cold-climate projects, passive Low-E coatings on surface #3, paired with warm-edge composite spacers and multi-cavity thermal break extrusions, minimize heat loss and prevent interior condensation.
What is the typical production lead time and international container shipping workflow?
Standard production runs require 25 to 35 days from approved CAD drawings. Products are wrapped in protective polyethylene films, cushioned with edge protectors, and secured within fumigated ocean-freight plywood crates. We provide full export logistics documentation, including commercial invoices, packing lists, test reports, and certificates of origin for swift customs clearance.
Ready to Engineer Your Project's Fenestration Schedule?
Send your door and window schedules, CAD drawings, or rough opening dimensions directly to our factory engineering division for a comprehensive bill of quantities, structural verification, and factory-direct quotation within 24 hours.
