Heavy-Duty Bi-Fold
Soundproof Aluminum Alloy Folding Window Doors
Engineered with integrated stainless steel anti-theft mesh grilles (Jali design), marine UV surface protection, and heavy acoustic barriers.
Featured Architectural Systems
Engineering-Grade Aluminium Window & Jali Integration Catalog
Explore custom precision-extruded aluminium systems equipped with high-tensile security grilles, acoustic isolation, and architectural jali screens.
DIN Standards

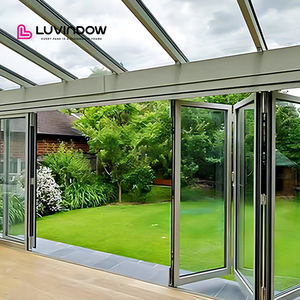

German Standard Aluminium Bifold Accordion Windows
High-precision roller hardware combined with secondary micro-mesh decorative security jali, exceeding rigorous thermal barrier baselines.
Hardware Components
Bakelite Handles for Aluminium Series 90/120/180
Multi-point architectural locking handles designed specifically to accommodate integrated internal mesh panels and high-depth jali systems.
Panoramic Glazing
Frameless Vertical Aluminium Alloy Folding Windows
Offers unobstructed panorama views with hidden structural channels prepared for motorized drop-down architectural laser-cut jali screening.
Triple Track Sliding
Foshan NF Custom Made Aluminum Sliding Windows
Featuring a dedicated third operational track designed exclusively for heavy diamond or perforated aluminium jali security panels.
Thermal Performance

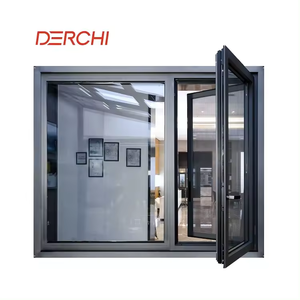

Thermal Break Double Glazed Casement Windows
Combines polyamide insulation bars with integrated magnetic insect netting and decorative aluminium perforated external jali shading shields.
Architectural Pivot
Modern Anti-Theft Aluminum Pivot Entrance Systems
Heavy structural pivot framework incorporating internal high-strength cast-aluminium lattice structures for maximum forced-entry protection.
Safety Certification
Fire Rated Metal & Aluminium Grille Compound Entry Doors
UL-certified fire-barrier structures reinforced with decorative CNC-patterned aluminum screen lattices for acoustic and architectural integrity.
The Evolution of Aluminium Jali: From Traditional Mashrabiya to High-Performance Envelope Facades
The traditional window jali (historically rooted in intricate geometric screens like the Arabic Mashrabiya or South Asian stone lattices) has evolved into an essential component of modern sustainable fenestration. In global commercial and high-end residential engineering, specify-grade aluminium jali for window systems performs far beyond passive ornamentation. By leveraging primary architectural alloys like 6063-T5 and 6063-T6, contemporary manufacturing plants offer structural lattices that deliver solar shading, daylight harvesting, enhanced forced-entry deterrents, and natural aerodynamic ventilation while reducing active cooling consumption.
Modern facade consultants no longer treat the window glass, frame, and protective screen as isolated assemblies. Instead, Tier-1 manufacturing facilities incorporate multi-track extrusions where the decorative or perforated aluminium jali panel integrates directly into the frame cavity. This approach eliminates exterior mounting vulnerabilities, maintains perimeter thermal breaks, and ensures certified acoustic and wind-load performance under international standards such as AS2047, CE, and ISO9001.
Comparative Technical Matrix: Window Jali Fabrications & Material Properties
| Jali / Grille Technology | Structural Composition | Tensile Strength (MPa) | Corrosion Resistance | Primary Commercial Use |
|---|---|---|---|---|
| CNC Laser-Cut Sheet Jali | Aluminium Plate (5052 / 6061 Series) | 210 - 260 MPa | High (Fluorocarbon PVDF Coated) | Luxury Villa Screens, Solar Shading, Custom Geometry |
| Die-Cast Monolithic Jali | A380 / ADC12 Aluminium Alloy | 310+ MPa | Superior (Passivated & Powdered) | Heavy Villa Gates, Anti-Theft Pivot Door Insets |
| Expanded Aluminium Mesh | Alloy 3003-H14 Cold Expanded | 140 - 180 MPa | Medium-High (Anodized 15-25µm) | Continuous Ventilation, Light Security, Insect Screens |
| Crimped High-Tensile Mesh | Marine 316 Stainless Mesh + Al Frame | 450+ MPa | Exceptional (Marine Coastal Grade) | Invisible Security Windows, Hurricane/Storm Screens |
Technical Evaluation Criteria for Selecting a Top 10 Aluminium Jali Manufacturer
When evaluating global suppliers, procurement directors and project architects must assess core manufacturing capabilities rather than relying on standard sample submissions. A verified Tier-1 factory should operate vertically integrated fabrication lines, including raw billet homogenization, multi-axis CNC punching, robotic laser-cutting tables, and automated surface treatment facilities.
Surface finish reliability is paramount. For tropical, humid, and coastal deployments (such as West Africa, the Caribbean, Southeast Asia, or coastal Middle Eastern regions), standard powder coatings degrade quickly under persistent UV radiation and marine salinity. Leading suppliers utilize electrostatic fluorocarbon PVDF systems (minimum dry film thickness of 40–50 microns) or architectural-class anodization compliant with Qualicoat and AAMA 2605 specifications. This ensures color retention, chalk resistance, and galvanic isolation across extended product lifespans.
Market Forecast
Future Procurement & Design Trends in Window Jali
Strategic technology shifts transforming architectural screen manufacturing and project sourcing over the next decade.
Dynamic Motorized Kinetic Jali Facades
Shift towards building automation-integrated (BMS) operable aluminium jali panels that dynamically rotate or fold based on solar exposure metrics to reduce HVAC heat loads.
Unified Multi-Cavity Extrusion Integration
Move away from retrofitted surface grilles. High-end fenestration now incorporates pre-engineered frame channels that seamlessly house the security jali, double glazing, and acoustic breaks in a clean single frame.
Low-Carbon & Recycled Primary Aluminium
Global sustainable building certifications (LEED, BREEAM) increasingly mandate secondary or low-carbon hydro-smelted aluminium billets for screen manufacturing to lower project embodied carbon.
Factory Direct Strength
Why Top Global Contractors Partner With DERCHI
Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) represents China's leading fenestration manufacturing ecosystem.
Massive 180,000㎡ Facility
Full-scale production capability housing precision profile extrusion, automated powder-coating lines, CNC machining centers, and an expansive workforce of over 600 skilled technicians.
Multi-National Code Approvals
Our window, entry door, and architectural screen systems are fully verified under European CE, Australian AS2047 (certified to N6 cyclone pressures), ISO9001, and UL fire standards.
Complete Custom CAD Shop Drawings
Our dedicated engineering department provides turnkey structural shop drawings, wind-load calculations, and custom jali geometric pattern development directly matched to your architectural BIM model.
Reinforced Export Packaging
Finished windows and jali screens are packed with multi-layered protective film, corner guards, and rigid heat-treated export crates engineered to prevent transit distortion during containerized sea transit.
Procurement Knowledgebase
Frequently Asked Questions by Global Buyers
Direct answers to technical, logistical, and compliance questions encountered during volume sourcing.
What alloy grade is recommended for exterior window jali in high-humidity or coastal regions?
For structural frames and structural screen profiles, 6063-T5 or 6063-T6 is the international standard due to its balance of extrusion precision, tensile integrity, and corrosion performance. For sheet-cut CNC jali panels, Aluminium 5052-H32 is preferred for marine or coastal applications due to its superior resistance to salt-spray pitting. In high-exposure settings, combine this with a certified 3-coat PVDF fluorocarbon coating (minimum 40 microns) or anodized surface finishes exceeding 20 microns.
How does an integrated aluminium jali impact the window's acoustic and thermal performance?
When properly decoupled, an external or integrated jali serves as an initial barrier that reduces wind-driven surface convection and dissipates direct solar infrared heat before it reaches the insulated glass unit (IGU). In thermally broken window systems, the jali is isolated from internal frames by polyamide (PA66) thermal strips, ensuring no thermal bridging occurs. For acoustics, perforated or pattern-dense jali panels disrupt direct sound waves, helping to lower environmental noise before it contacts the glass.
Can custom architectural patterns (geometric, Islamic, contemporary) be laser-cut into the jali without compromising security?
Yes. Our engineering department uses parametric structural modeling to balance open-area percentages (typically 35% to 55%) with required tensile strengths. By specifying plate thicknesses of 3.0mm to 5.0mm, custom geometric apertures provide reliable anti-intrusion barrier performance while maintaining clear airflow and precise architectural shadow patterns.
What are the standard international testing standards required for imported window jali assemblies?
Critical testing regimes include AS2047 (covering structural deflection, air infiltration, and water penetration resistance), CE EN 14351-1 for European envelope safety, and ASTM E330 for structural load capacity under dynamic wind pressures. For fire-rated applications, the complete system must be tested to UL or BS EN 1364 standards. We provide full mill certificates, independent test reports, and factory inspection records for all shipments.
What technical documentation is needed to receive a formal quotation and CAD proposal?
To prepare accurate pricing and shop drawings, our engineering team requires:
- Window schedule with rough opening dimensions (Width × Height in mm).
- Profile preference (thermal break or non-thermal break, sliding, bi-fold, or casement).
- Jali requirements (CNC plate thickness, mesh style, or diamond profile).
- Surface finish specification (RAL color code, standard powder coat, or PVDF).
- Project location and destination port for CIF container calculation.
Ready to Source High-Precision Aluminium Jali & Window Systems?
Connect directly with our engineering team in Foshan. We review structural requirements, provide free CAD shop drawings, and offer factory-direct container pricing.
