High-Performance Architectural Coated Door Assemblies
Engineered to international AS2047, CE, and ISO9001 quality specifications. Precision profile extrusions, multi-stage electro-sprayed conversion coatings, and certified thermal insulation break barriers.

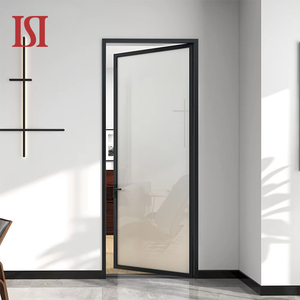

Soundproof Waterproof Double Glazed Aluminum Casement Door
Modern Indoor Aluminium Alloy Showerroom Casement Glass Door
Modern Exterior Aluminum Casement Security Entry Doors
Soundproof Double Glass Aluminum Casement Swing Door
RG50 Double Tempered Glass Heat Insulation Swing Door

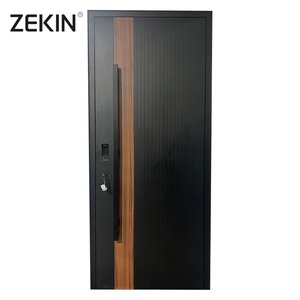

ZEKIN Luxury Modern Front Exterior Aluminum Pivot Entry Door

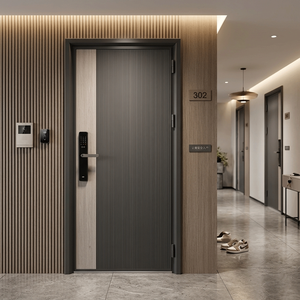

Soundproof Intricately Carved Aluminum Panel Security Door

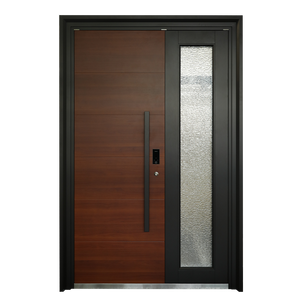

Waterproof Aluminum Security Exterior French Entry Door
Enterprise Scale, Process Integrity & Global Compliance
Operating under Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI Brand), our Foshan industrial center integrates extrusion processing, precision robotic fluorocarbon and powder coating, and structural testing.
One-Stop Architectural Consolidation
Consolidate custom entry portals, heavy pivot systems, acoustic casements, interior doors, and automated garage barriers into unified container shipments, saving up to 28% in overseas freight and coordination overhead.
Stringent International Validation
Every profile design meets rigorous cyclic wind loading, water tightness, and structural deflection audits, holding CE, ISO9001, AS2047 N6 (highest rating), and optional UL-rated fire-safety assembly listings.
Full OEM/ODM Technical Customization
Dedicated project teams deploy free comprehensive parametric CAD and BIM models matching structural schedules. Precise powder coat matches (RAL/Qualicoat Class 2), anodizing depths (up to 25μm), and custom hardware preparation.
Engineering Architecture: Evolution of Coated Aluminium Systems
A technical examination of coating chemistry, alloy thermodynamics, and structural envelope performance criteria for modern architectural envelopes.
1. Advanced Coating Surface Chemistry: PVDF vs. Super-Durable Architectural Powder
In modern fenestration and door engineering, the performance of the external barrier layer is primarily dictated by the polymer matrix and bond strength under intense ultraviolet (UV-A and UV-B) exposure. Standard architectural polyesters tend to chalk and lose gloss within 36 to 60 months in high-radiation zones (such as coastal Africa, the Middle East, and Australasia). To resolve these micro-structural degradations, premier OEM/ODM manufacturing utilizes AAMA 2605 compliant Fluoropolymer (PVDF) liquid dispersions and Qualicoat Class 2 / Class 3 Super Durable Powders.
PVDF resin utilizes carbon-fluorine (C-F) bonds—one of the strongest chemical bonds known in polymer chemistry—generating superior chemical inertness against saline spray (exceeding 3,000 to 5,000 hours of neutral salt spray testing per ASTM B117) and industrial sulfur dioxide exposure. Super durable electrostatic powders, engineered with advanced blocked isocyanate or triglycidyl isocyanurate (TGIC) cross-linkers, deliver enhanced pencil hardness (≥2H) and impact resistance (≥160 in-lb per ASTM D2794), mitigating micro-fractures during transport and handling on construction sites.
2. Thermal Barrier Integration and Multilayer Acoustic Attenuation
Raw 6063-T5 and 6063-T6 aluminium alloy profiles exhibit high thermal conductivity (~200 W/m·K). Without thermal separation, high-temperature gradients between exterior facades and air-conditioned interiors cause excessive building cooling loads, condensation, and structural bowing across large leaves. Modern OEM systems incorporate continuous structural polyamide (PA66 GF25) strips reinforced with 25% glass fiber. This matches the thermal expansion coefficient of aluminium (2.3 × 10⁻⁵ K⁻¹), eliminating internal mechanical shear stresses across severe diurnal temperature swings.
When joined with multi-chamber EPDM co-extruded perimeter gaskets and insulated glass units (IGU) containing argon cavities and acoustic polyvinyl butyral (PVB) or acoustic SentryGlas® interlayers, weighted sound reduction indices (Rw values) reach 38 dB to 44 dB. This decouples external vehicular, industrial, or airport acoustic resonances while dropping system U-values down to 1.4 – 1.8 W/m²·K.
| Performance Criterion | Standard Commercial Grade | Export Coated System (AAMA 2604) | Industrial Tier-1 Marine Grade (AAMA 2605 / Qualicoat Cl. 3) |
|---|---|---|---|
| Aluminium Substrate | Recycled 6063-T5 (Wall: 1.2–1.4mm) | Primary Billet 6063-T5 (Wall: 1.6–2.0mm) | High-Purity 6063-T6 / Cast Alloy (Wall: 2.0–3.5mm) |
| Pre-Treatment Protocol | Basic Alkaline Wash | Multi-Stage Acid Etch + Zirconium Passivation | Chrome-Free Titanium/Zirconium Conversion Coating |
| Salt Spray Resistance (ASTM B117) | < 1,000 Hours | 2,000 – 3,000 Hours | > 4,000 – 5,000 Hours Zero Blistering |
| South Florida Exposure (Weathering) | 1 Year (Rapid Color Shift) | 5 Years Color Retention (ΔE < 5) | 10+ Years Color & Gloss Retention (ΔE < 5) |
| Air Infiltration Rating | Class 2 (Standard Draft) | Class 3 (Sealed Gasket Matrix) | Class 4 / AS2047 Ultra-Low Leakage (<0.5 L/s·m²) |
Global Procurement Trends: 2026–2030 Horizon
Market dynamics, architectural demands, and logistics automation shaping how commercial developers and overseas distributors purchase coated aluminium door systems.
1. Monolithic Pivot Entrances Over Standard Hinges
Architects are shifting toward floor-to-ceiling single leaves (widths up to 2.2m, heights up to 4.5m). Procurement requires internal steel torsion spines, structural thermal stabilization, and bottom hydraulic bearing boxes rated up to 800 kg with zero frame sag over continuous operation.
2. Concealed Smart Electromechanical Locking
B2B specifications require concealed motorized locks, 3D facial recognition, biometric finger-vein scanner housings, and dry-contact relays directly routable to automated central Building Management Systems (BMS) with fire-release failsafes.
3. Decarbonization & Low-Carbon Billet Sourcing
Institutional developers across Europe and North America prioritize suppliers offering verified Environmental Product Declarations (EPD). Utilizing hydro-powered smelting billets, scrap re-melting loops, and chromate-free conversion lines simplifies meeting LEED and BREEAM certifications.
B2B Procurement & Engineering Specifications FAQ
Essential clarifications regarding tolerances, surface integrity, logistics crating, and site installation variables for international developers.
How are profile coating thicknesses controlled to prevent delamination?
We execute multi-stage immersion pre-treatment (degreasing, alkaline desmutting, and nano-ceramic zirconium passivation). Electrostatic powder application adheres to Qualicoat standards, holding a dry film thickness (DFT) between 60μm and 85μm. PVDF systems utilize a primer-topcoat-clearcoat build exceeding 35μm–45μm, verified via continuous cross-hatch adhesion audits (ASTM D3359).
What structural safeguards protect heavy oversized panels from transit deflection?
Every custom portal leaf is stabilized via internal corner corner-cleats injected with two-part polyurethane structural adhesive and expanded EPDM blocks. Each unit is wrapped in anti-static PE foam, encased in heavy-duty edge guards, and crated in fully enclosed, IPPC-certified fumigated marine plywood cases tailored for containerized sea transit.
Can you provide custom engineering shop drawings (CAD/BIM) for consultant approval?
Yes. Our in-house technical department includes senior structural fenestration draftsmen who generate dimensioned DWG/DXF cross-sections, anchor-placement calculations, dead-load distributions, and Revit/BIM assets within 24 to 48 hours of project parameter receipt, ensuring smooth sign-off before manufacturing.
What documentation support is provided for clearance in regional trade zones?
We supply full conformity dossiers tailored to local clearing frameworks: CE Declaration of Performance (DoP), SASO/SABER certifications for Saudi Arabia, SONCAP for Nigeria, PVoC/KEBS test documentation for East Africa, and complete factory test certificates (FTC) for project quality logs.
