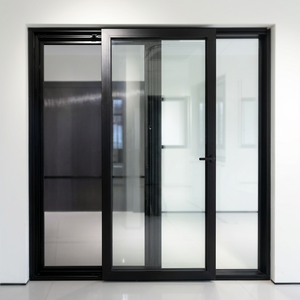

DERCHI Multi Panel Aluminum Sliding Door Security Hurricane Proof Patio
NFRC Commercial Hurricane Impact Aluminum Triple Glass French Swing Door
EOKO NFRC Aluminum Lift-and-slide Triple Glazed Low-E Sliding Doors
Factory Direct Black Frame Soundproof French Casement Patio Swing Doors
AMJ American NFRC Standard Windproof Waterproof Pivot Entry Doors
Panoramic Frameless Aluminum Folding Window System for Balcony Villa
Industrial Aluminum Alloy High-Security Electric Roller Shutter Door
Engineering Whitepaper
Architectural Specification Guide: OEM Aluminum Double Swing Systems
A rigorous examination of primary alloys, thermal mitigation barriers, mechanical load limits, and structural sealing dynamics in commercial double swing doors.
Alloy Formulation & Wall Thickness Integrity
Double swing entrance systems experience severe dynamic torsion along the hinge stiles and central meeting astragals. DERCHI implements primary 6063-T5 and structural 6061-T6 aluminum alloys extruded to uniform profile wall thicknesses between 2.0mm and 3.5mm.
By enforcing metallurgical purity with tight magnesium-to-silicon ratios, our profiles deliver a minimum tensile strength of 205 MPa. This structural rigidity prevents sag in oversized double leaves measuring up to 3000mm in clear height, ensuring seamless latching and continuous perimeter seal compression across hundreds of thousands of duty cycles.
- Standard alloy: 6063-T5 / Architectural 6061-T6
- Profile wall thickness: 2.0mm to 3.5mm reinforcement zones
- Yield strength: ≥ 160 MPa; Ultimate tensile: ≥ 205 MPa
Multi-Cavity Polyamide Thermal Interrupters
Traditional non-thermal doors act as thermal bridges, creating immense U-factor penalties and interior condensation issues. Our OEM swing doors integrate glass-fiber reinforced polyamide nylon insulating bars (PA66 GF25) within multi-chambered sash extrusions.
This barrier mechanically decouples the external and internal profile leaves, dramatically attenuating conductive transfer. Combined with Low-E argon-filled insulated glass units (IGUs), our assemblies achieve complete overall system U-values down to 1.4 W/m²·K (0.25 BTU/hr·ft²·°F), complying with stringent ASHRAE 90.1, IECC, and regional low-carbon directives.
- Thermal barrier: Technoform PA66 GF25 polyamide struts
- Glazing envelope: 28mm to 42mm double/triple laminated IGUs
- Thermal transmittance: Whole-door U-factor as low as 1.4 W/m²·K
Perimeter Compression Dynamics & Hardware Topology
Double swing fenestration is inherently susceptible to air and water infiltration at the dynamic meeting junction (the double leaf astragal). Our engineering team incorporates continuous, co-extruded cellular EPDM vulcanized sealing gaskets paired with magnetic bottom drop seals and concealed multi-point panic or deadbolt linkages.
Heavy-duty, 3D-adjustable internal stainless-steel butt hinges or concealed concealed floor-spring pivots sustain loads exceeding 350 kg per door leaf without deflection. When subjected to driving cyclonic rain and ASTM E331 dynamic chamber testing, our threshold drainage and triple-barrier seals maintain full watertightness past 700 Pa.
- Gasket material: Continuous vulcanized EPDM (DIN 7863 compliant)
- Locking configurations: Multi-point motorized access or mechanical panic hardware
- Water pressure resistance: ASTM E331 certified to ≥ 700 Pa
Strategic Outlook
Future Procurement Trends in Architectural Swing Entrances
Market intelligence and technological transformations dictating OEM door specifications over the next five to ten years.
BIM Integration & Precision CAD Fabrication
Global procurement teams are moving away from manual dimensional takeoffs toward full Building Information Modeling (BIM) Level 2 & 3 workflows. Specifiers require OEM factories that ingest Revit families and generate synchronized CNC-milling code straight to automatic multi-axis cutting centers.
By automating the data exchange from architect schematics to the factory floor, lead times compress by 35% while eliminating human tolerance stack-up during site assembly.
Low-Carbon Metallurgy & Recycled Ingot Supply
Embodied carbon benchmarks under LEED v4.1 and European CBAM (Carbon Border Adjustment Mechanism) are altering purchasing criteria. Tier-1 real estate developers now mandate Environmental Product Declarations (EPDs) demonstrating that aluminum bill-of-materials incorporate at least 60% post-consumer scrap melted via hydroelectric or solar-powered smelters.
Procuring low-carbon green aluminum swing systems enables multinational projects to secure premium sustainable building certifications without compromising structural performance.
Smart Access Mechatronics & Concealed Automation
The convergence of commercial access control and structural swing fenestration is accelerating. Specifiers demand custom swing profiles designed with internal cable chases, electrified concealed hinges, and hidden overhead electromechanical door operators capable of interacting with Building Management Systems (BMS).
Facial recognition, biometric readers, and automatic zero-threshold drop seals operate invisibly within the frame profile, delivering both barrier-free ADA accessibility and high-security anti-tailgating protocols.
Enterprise Authority
DERCHI Industrial Strength: 25+ Years of Manufacturing Leadership
Operating one of Southern China's premier fenestration manufacturing bases, certified to CE, AS2047, ISO9001, and UL quality benchmarks.
One-Stop Custom Manufacturing
Consolidate your entire fenestration package under a single contract. From custom double swing french doors and cyclonic sliders to fire-rated pivot doors and sectional garage doors, our Foshan facility streamlines container loading and project logistics.
Certified Global Compliance
DERCHI systems are verified under rigorous third-party auditing, fulfilling AS2047 cyclonic air-water-structural ratings, North American NFRC thermal standards, CE safety marks, and UL multi-tier fire retardancy specifications.
Bespoke OEM / ODM Engineering
Our dedicated R&D team develops custom extrusion dies, tailor-made architectural finishes (AkzoNobel PVDF fluorocarbon coatings, multi-tone anodizing, textured timber transfers), and site-matched structural sub-frames with free CAD/BIM shop drawings.
Global Port Delivery & Technical Support
Serving commercial developers, hotel chains, and residential luxury estates worldwide. Every system arrives export-crated in shockproof sea packaging with dedicated 24/7 English-speaking structural engineers guiding field installation.
Procurement Clarity
Frequently Asked Technical & Sourcing Questions
Essential guidance for commercial quantity surveyors, facade consultants, and general contractors sourcing OEM aluminum double swing systems.
What minimum aluminum profile wall thickness is recommended for oversized commercial double swing doors?
For high-traffic commercial portals and heavy wind-load applications exceeding 2400mm in leaf height, we recommend an architectural minimum wall thickness of 2.0mm on non-structural components and 3.0mm to 3.5mm along critical stress areas such as hinge mounting chambers and lock stiles. This guarantees long-term dimensional stability against diagonal sag and wind deflection.
How do custom OEM aluminum swing doors resolve central astragal water leakage during heavy downpours?
Central astragals are the most vulnerable point in double door systems. DERCHI integrates an overlapping interlocking aluminum astragal profile engineered with internal capillary grooving, dual-stage continuous EPDM compression gaskets, and staggered weep slots with one-way flapper valves. This system effectively redirects driven water downward to the exterior sill threshold before it can bridge into the building envelope.
Can you provide custom surface finishes to match corrosive coastal marine environments?
Yes. For marine and industrial environments subject to high salinity, we apply AAMA 2605 compliant AkzoNobel or PPG fluorocarbon (PVDF) 3-coat/2-bake liquid coatings, delivering over 10 years of color-fast gloss retention and anti-chalking defense against salt fog. We also provide architectural anodized finishes up to Class I (25 microns) to prevent filiform corrosion.
What is the standard production lead time and export crating protocol for bulk container orders?
Standard lead times for custom extruded and certified double swing door schedules run 25 to 35 business days following CAD shop drawing approval. Every door leaf and sub-frame assembly is protected with PE protective film, encased in high-density corner foam bumpers, and secured within custom IPPC-certified fumigated plywood structural crates engineered for crane sling handling and long-distance ocean transport.
