Engineered Architectural Profiles & OEM Assemblies
Precision-fabricated utilizing virgin primary aluminum billets (6063-T5 / 6063-T6), polyamides with 25% structural glass fiber (PA66 GF25), and dual-sealed automotive EPDM gasket systems. Explore our precision commercial and residential assemblies engineered for harsh tropical, coastal, and high-wind environments.
Exterior Front 4 Panel Double Glazed Patio Aluminium Sliding Doors Folding Tri Fold Storm Japanese Bifold Door
- Thermal Break: PA66 GF25 Insulation
- Glazing: 5mm+12A+5mm Tempered
- Water Resistance: 450 Pa Rated
DERCHI Aluminium Residential House Commercial Heavy Duty Thermal Break Automatic Sliding Door Aluminum Patio Glass Door
- Operator: Concealed Micro-Motor
- Profile Wall: 2.5mm Heavy Duty
- Sound Rating: Rw 38 dB Acoustic

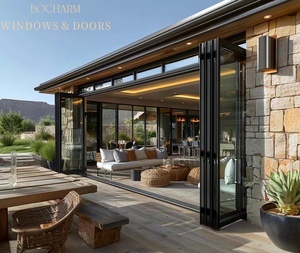

BOCHARM Aluminum Alloy Foldable Concertina Folding Bi-fold Doors Double Tempered Glass Ultra-Slim Profile for Supermarket
- Sightline: Ultra-Narrow 18mm
- Load Carrier: Top-Hung Stainless Bearings
- Hardware: Multi-Point B2B Gear
CHANGYI USA Hurricane Impact Aluminum Triple Glass Accordion Doors Outdoor Bi Folding Door Plegables
- Interlayer: SentryGlas (SGP) Structural
- Pressure: +/- 70 PSF Cyclonic
- Standards: Miami-Dade / ASTM E1886
Modern 4-Panel Aluminium Bifold Window Aluminum Alloy Frame Stainless Steel Screen Netting Horizontal Opening Folding For Villas
- Screening: 304 Marine Wire Mesh
- Locking: Concealed Espagnolette
- Finish: AkzoNobel Powder Coat
Customized Modern Panoramic Sliding Door AS2047 NFRC House Aluminum Frame Energy Efficient Sliding Glass Door Sliding Door
- Rating: AS2047 N6 Wind Category
- Energy: NFRC U-Factor 1.4 W/m²K
- Track: Sub-Floor Flush Inset
Heavy-Duty Commercial Modern Energy Efficient Office Door External Glass Slide Large Sliding Patio Doors and Windows for Home
- Sash Weight: Up to 450 kg per Panel
- Roller: Quad Heavy Tandem Wheel
- Sealing: Triple Fin-Seal + Neoprene

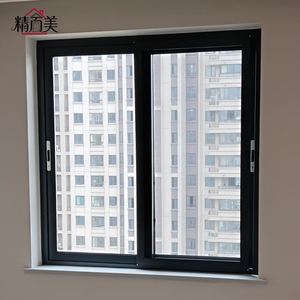

Matte Black Custom Size Aluminum Sliding Window with Drainage Track Smooth Sliding Rail Large Glass Sash for Balcony Apartment
- Drainage: Anti-Backflow Stepped Track
- Finish: Matte Black Anodized 25μm
- Glazing: Low-E Argon-Filled IGU
1. Advanced Metallurgy & Precision Profile Engineering
As a Tier-1 OEM/ODM door and window manufacturing facility located in Shishan Town, Nanhai District, Foshan—the epicenter of global architectural aluminum extrusion—Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) operates on rigorous metallurgical parameters. Our structural frames are extruded exclusively from 6063 primary architectural-grade aluminum alloy with T5 and T6 heat treatment tempers, ensuring a minimum tensile strength of 205 MPa and yield strength of 170 MPa. By avoiding scrap-contaminated remelt billets, our extrusions maintain an ultra-clean microcrystalline structure that prevents intergranular stress corrosion cracking in high-humidity and marine-coastal environments.
To exceed contemporary building envelope energy performance mandates, our systems incorporate multi-chambered thermal barriers composed of Polyamide 66 reinforced with 25% transverse glass fiber (PA66 GF25). Unlike low-tier polyurethane pour-and-debridge systems that suffer from thermal expansion shear fatigue, our crimped structural polyamide bars possess a linear coefficient of thermal expansion ($\alpha = 2.3 \times 10^{-5}\text{ K}^{-1}$) nearly identical to that of aluminum itself. This preserves airtight integrity and shear capacity under temperature swings ranging from -40°C in continental winters to +85°C frame surface heat during extreme desert insolation.
Cyclonic & Windload Deflection
Engineered to L/175 and L/250 structural deflection limits. Successfully evaluated under Australian AS2047 standards achieving N6 cyclonic certification, sustaining positive and negative structural pressures up to 4,500 Pa without plastic deformation or fastener shearing.
Acoustic Decoupling Technology
Multi-chamber extrusions matched with asymmetrical acoustic laminated glass (e.g., 6mm Low-E + 0.76 Acoustic PVB + 6mm Clear) reduce transmission by up to Rw 42 dB. Ideal for transport corridors, luxury hotel lobbies, and urban master-planned developments.
AAMA 2605 Architectural Finishes
Automated fluorocarbon (PVDF) and architectural powder coatings formulated with AkzoNobel and PPG resins. Exceeds 4,000-hour neutral salt spray tests, maintaining gloss retention and color stability against intense high-altitude UV radiation.
2. Future Procurement Trends in Commercial & Residential Fenestration (2025–2030)
B2B fenestration procurement is undergoing a paradigm shift driven by embodied carbon monitoring, building information modeling (BIM), and performance verification. Project developers and general contractors are pivoting away from fragmented regional fabricators toward integrated OEM mega-factories capable of delivering unified architectural hardware schedules. Key trends dominating global procurement include:
1. Decarbonized and Recycled Aluminum Billets: Institutional developers are enforcing strict scope 3 emissions caps, prioritizing suppliers utilizing renewable hydropower smelting with certified low carbon intensity (< 4.0 kg CO₂e per kg Al). Extrusion traceability has transitioned from an optional marketing differentiator to a mandatory tender prerequisite.
2. Ultra-Slim Panoramic Sightlines with Inset Sill Assemblies: Minimalist architecture requires visual mullion profiles under 20mm while requiring sash load limits exceeding 500 kg. This demands ultra-high-modulus structural silicone structural glazing (SSG) and submerged stainless-steel roller tracks with integrated sub-sill perimeter drainage trays to eliminate indoor flooding risks.
3. Motorized Smart Building Automation (BMS): High-end commercial developments require fenestration units with integrated concealed multi-point electric actuators, magnetic sensor contacts, and BACnet/KNX building management connectivity for automated night-purge ventilation and centralized hurricane lock-down sequencing.
3. Technical Comparison: OEM Fenestration Specifications
To assist facade consultants, structural engineers, and commercial estimators, the following matrix contrasts performance benchmarks across primary window and door categories manufactured within our Foshan facility:
| Profile System | Alloy & Temper | Thermal U-Factor (W/m²K) | Air Permeability | Water Tightness | Certifications |
|---|---|---|---|---|---|
| Panoramic Sliding System (Heavy Duty) | 6063-T6 (Wall: 2.2-3.0mm) | 1.30 – 1.60 | Class 4 (< 0.1 m³/h·m) | 700 Pa | AS2047 / NFRC |
| Acoustic & Storm Bifold Door | 6063-T5 (Wall: 2.0-2.5mm) | 1.45 – 1.80 | Class 4 (< 0.15 m³/h·m) | 450 Pa | CE / ISO9001 |
| Hurricane Impact Accordion Series | 6061-T6 / 6063-T6 Structural | 1.60 – 2.10 | Class 3 (< 0.5 m³/h·m) | 900 Pa | ASTM E1886 / E1996 |
| Architectural Villa Casement Window | 6063-T5 (Wall: 1.8-2.0mm) | 1.10 – 1.40 | Class 4 (< 0.05 m³/h·m) | 600 Pa | Passive House Ready |
4. Corporate Manufacturing Prowess: Guangdong Dejiyoupin (DERCHI)
Spanning an expansive 180,000 square meter standardized production hub equipped with 5-axis German elumatec CNC profile machining centers, automated computerized sawing lines, and pressurized robotic argon-injection insulated glazing lines, DERCHI delivers precision tolerance control within ±0.5 mm across oversized architectural configurations. Backed by 600+ industrial personnel and an internal R&D division holding more than 100 invention and utility model patents, we provide comprehensive OEM/ODM contract manufacturing services spanning shop-drawing CAD drafting, FEA structural windload calculation, die-mold extrusion fabrication, bespoke hardware assembly, and certified export seaworthy packing.
End-to-End CAD/BIM Support
Our engineering wing reviews architectural floor plans, providing fully dimensioned shop drawings, structural anchor calculations, and drainage elevation details to avoid site conflicts.
Pre-Assembly & QC Protocols
100% of custom oversized doors undergo factory dry-fit frame assembly, corner tensile diagonal verification, roller calibration, and hardware locking checks prior to container packaging.
Seaworthy Export Crate Engineering
Every unit is wrapped with 50μm PE protection film, shielded by edge-guard honeycomb bumpers, and packed in fumigated plywood cases with built-in crane-lifting webbing for port clearance.
5. Frequently Asked Questions (B2B Procurement & Engineering)
What alloy compositions and thermal barrier systems are utilized in your OEM profile systems?
How do you guarantee air and water tightness on oversized multi-panel sliding and bifold doors?
Can you supply fenestration compliant with local wind codes in North America, Australia, or the Middle East?
What is your typical OEM/ODM production lead time and minimum order quantity (MOQ)?
What installation and technical field support do you provide for overseas contractors?
Ready to Engineer Your Next Fenestration Schedule?
Partner directly with Foshan's premier architectural aluminum window and door manufacturing facility. Connect with our dedicated sales engineers for comprehensive CAD libraries, physical sample kits, structural calculations, and competitive factory-direct pricing for your commercial or luxury residential projects.
