Explore our export-certified fenestration assemblies, combining heavy-duty 6063-T6 aluminum wrapping technology, polyamide thermal breaks, multi-point perimeter locks, and sound-insulating low-emissivity glass packages.

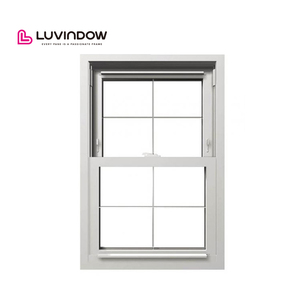

Integrated perimeter wrap design with 304 stainless steel insect screen, heavy-duty 4-bar friction stays, and micro-ventilation security latches.

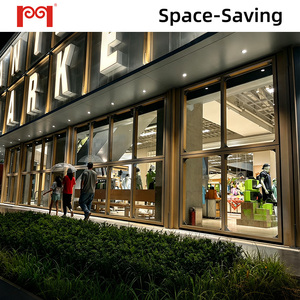

Commercial-grade extruded aluminum frame wrapping impact PVB laminated glazing with whisper-quiet motorized counterweight lifting modules.
Ultra-narrow architectural sightline framing with continuous internal structural wrapping, supporting expansive jumbo insulated IGUs up to 6000Pa load.
Solid cast aluminum core with multi-layer seamless perimeter edge wrapping, German KFV multi-point security locking, and marine fluorocarbon finishing.

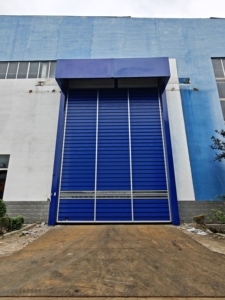

High-tensile aluminum slat profiles with polyurethane thermal foam core and dual-lip wind-resistant structural guiding track systems.

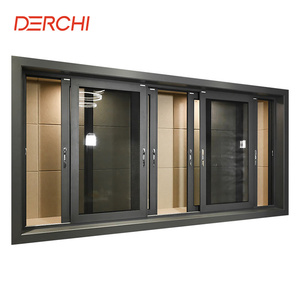

Severe cyclonic impact-rated sliding configuration tested to AS2047 N6 and NFRC benchmarks, featuring heavy tandem stainless rollers and high sill water baffles.

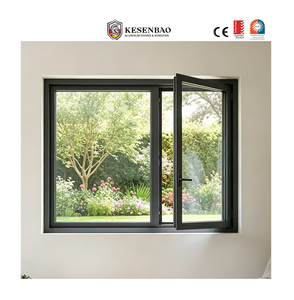

Polyamide PA66 thermal barrier sash wrapping technology paired with Argon-injected warm edge double Low-E glazing, achieving U-values down to 1.4 W/m²K.

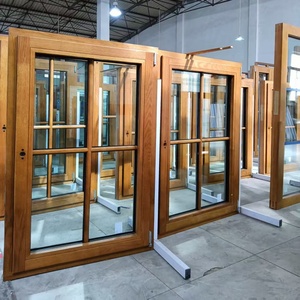

Hybrid envelope solution: seamless exterior extruded aluminum wrapping protects internal multi-laminated North American white oak from rain, UV, and salt spray.
In high-specification commercial and residential developments, an aluminum wrapping window represents far more than an extruded aesthetic shell. It is a calculated structural envelope engineered to manage multi-directional thermal differentials, dynamic wind deflection, and harsh atmospheric chemical degradation.
Manufactured using primary aluminum ingots (99.7% purity) homogenised and artificially aged to 6063-T6 temper. This yields tensile strengths ≥205 MPa and yield strengths ≥160 MPa, ensuring zero sash warping under cyclonic wind loads.
Integrated PA66 GF25 thermal breaks separate exterior and interior wrapping profiles. Having an identical thermal expansion coefficient to aluminum (2.4 × 10⁻⁵/K), they eliminate delamination while reducing thermal bridging by up to 74%.
Sash interfaces utilise automotive-grade continuous cellular EPDM co-extruded gaskets. Unlike inferior PVC gaskets, vulcanized EPDM retains over 85% elasticity at temperature extremes ranging from -40°C to +120°C over 30 years.
Engineered pressure-equalized rainscreen wrapping chambers with concealed sub-sill step down baffles guarantee zero capillary water intrusion at pressures exceeding 700 Pascals (AS4420.4 compliant).
Evaluate verifiable performance data for project specifications, tenders, and local municipal compliance filings.
| Performance Attribute | Generic Market Supplier | DERCHI Engineered System | Standard Compliance |
|---|---|---|---|
| Aluminum Profile Wall Thickness | 1.2 mm - 1.4 mm commercial grade | 1.8 mm - 3.0 mm Architectural Grade (6063-T6) | GB/T 8478 / AS2047 / ASTM B221 |
| Thermal Transmittance (U-Factor) | 2.8 – 3.6 W/m²·K | 1.1 – 1.6 W/m²·K (Argon Warm Edge IGUs) | NFRC 100 / EN ISO 10077-1 |
| Ultimate Structural Wind Pressure | Up to 2500 Pa (Serviceability) | Up to 6000 Pa (AS2047 N6 Cyclonic / TAS 202) | AS 4420.2 / ASTM E330 |
| Water Penetration Resistance | 300 Pa static pressure | 700 Pa – 900 Pa Pressure-Equalized Chambers | AS 4420.4 / ASTM E331 |
| Acoustic Insulation Performance | Rw 26 – 30 dB | Rw 38 – 46 dB (Acoustic PVB Lamination) | ISO 10140-2 / ASTM E90 |
| Surface Coating Quality & Salt Spray | Standard Polyester (500h salt spray) | Qualicoat Class 2 / PVDF 70% (3,000h+ salt spray) | AAMA 2604 / AAMA 2605 |
Actionable market foresight for real estate developers, facade procurement directors, and building material importers navigating tightening global regulations.
Global CBAM (Carbon Border Adjustment Mechanism) policies and ESG procurement mandates are driving a rapid transition toward low-carbon aluminum billets smelted using hydroelectric energy. DERCHI is actively standardizing primary alloys with cradle-to-gate carbon footprints under 4.0 kg CO₂/kg Al.
Architectural demand is phasing out chunky framed casements in favor of completely flush wrapping facades. By embedding the aluminum sash wrapper directly into the building perimeter insulation cavity, visible framing is reduced to under 38 mm while thermal values improve.
Procurement schedules for trophy villas and commercial headquarters increasingly specify concealed chain actuators wired into building management systems (KNX/Zigbee). These enable automated micro-ventilation, climate sensor response, and motorized vertical bi-fold garage wrapping assemblies.
Ranked among China's Top 10 fenestration manufacturers, DERCHI operates a premier 180,000㎡ industrial facility in Foshan, integrating end-to-end design, extrusion processing, CNC machining, and comprehensive lab testing.
For large-scale developments, institutional buyers, and high-volume regional distributors across North America, Australia, the Middle East, and Africa, partnering directly with DERCHI guarantees single-source accountability from CAD drawing signoff to port clearance.
Direct technical answers addressing lead times, shipping logistics, structural certifications, and custom envelope fabrication.
Whether you require custom hurricane-rated sliding systems, thermal-break wrapping casements, or bespoke oversized pivot entry facades, our engineering team is ready to analyze your schedules and deliver factory-direct value.
