Engineered Aluminum Hinged, Casement & Entrance Systems
Explore our precision-crafted aluminum door collections. Each system integrates primary 6063-T5/T6 architectural alloys, European hardware drives, and multi-cavity EPDM thermal barrier technology.

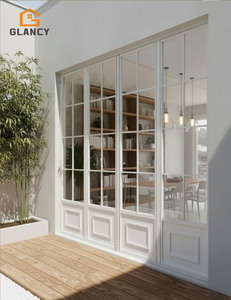

Customized White Aluminum French Folding Door Exterior Bifold Patio Door
Engineered for living rooms and balconies, providing seamless panoramic aperture openings, multi-point compression seals, and whisper-quiet stainless steel bottom carriage runners.
Get a Quote
CHANGYI USA Hurricane Impact Aluminum Triple Glass Accordion Doors Outdoor Plegables
Built to withstand severe tropical cyclonic pressures with heavy structural mullions, laminated safety glass, and heavy-duty hinged panel reinforcement.
Get a Quote
RG93.6 Durable Thermal Insulation Energy-Saving Sliding Doors Courtyard Doors
Multi-chamber thermal barrier technology delivering low U-values for green residential architecture, high sound attenuation, and sleek sightlines.
Get a Quote

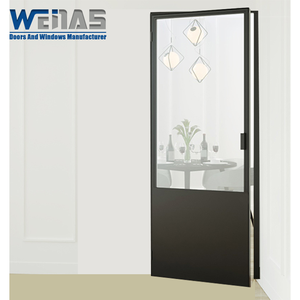

Minimalist Ultra Narrow Slim Aluminum Frame Casement Hinged Door
Ultra-narrow visual stile profile designed for contemporary luxury bathrooms, kitchens, and interior partitions, featuring concealed 3D adjustable hinges.
Get a Quote
Heavy Duty Reflective Glass Aluminum Doors With Flyscreen For Residential Villas
Equipped with integrated high-tensile 304 stainless steel insect screens, solar-control reflective glass, and enhanced tamper-resistant locks.
Get a Quote

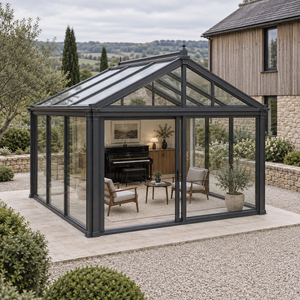

Customizable Aluminum Gable Double Glass Sunroom Sliding Hinged System
Heavy structural box beams integrated with double tempered insulated glass units for hotel garden lounges, resort solariums, and rooftop enclosures.
Get a Quote

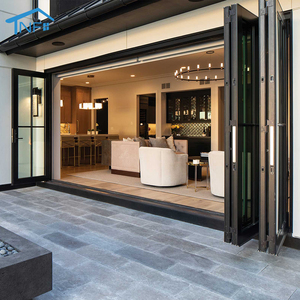

AS2047 NFRC Certified Soundproof Folding Aluminium LOW-E Double Glazing Doors
Certified for Australian, North American, and European commercial building codes, offering superior air-tightness, water penetration resistance, and soundproofing.
Get a Quote

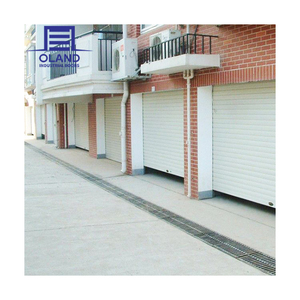

OLAND Industrial Aluminum Alloy Roller Shutter Electric Windproof Security Door
Heavy-gauge aluminum extruded double-wall slats providing cyclone-grade wind resistance, perimeter weather sealing, and commercial automation.
Get a Quote1. Material Science: Primary 6063-T6 Extrusion vs. Recycled Alloys
The structural integrity of an exterior hinged door depends critically on billet chemistry and mechanical extrusion standards. Premium Chinese manufacturers strictly specify 6063-T5 or 6063-T6 virgin architectural aluminum alloy with a magnesium-silicon matrix that delivers tensile strengths exceeding 205 MPa and yield strengths above 170 MPa.
Lower-tier suppliers often blend scrap or secondary aluminum, introducing microscopic iron impurities that cause subsurface pitting, premature coating flaking, and severe structural deflection under sustained wind load. Our extrusions maintain minimum wall thicknesses of 2.0 mm to 3.0 mm on load-bearing profiles, ensuring zero frame torsion when supporting heavy triple-glazed architectural panels weighing up to 250 kg.
2. Thermal Break Mechanics: Polyamide PA66GF25 Barrier Engineering
Solid aluminum is inherently conductive (thermal conductivity ~205 W/m·K). To comply with progressive international energy efficiency codes (such as ASHRAE 90.1, California Title 24, and the European Energy Performance of Buildings Directive), modern hinged doors employ a physical thermal barrier.
Our engineered systems feature Technoform-grade polyamide 66 reinforced with 25% glass fiber (PA66GF25) strut inserts. The glass fiber alignment matches the coefficient of thermal expansion of aluminum alloy (2.3×10⁻⁵ /K), preventing delamination, shear stress failure, or air leakage across severe seasonal temperature gradients from -30°C to +80°C.
Multi-Point Locking & Security
Equipped with gear-driven 3-point to 7-point perimeter locking assemblies engineered with hardened steel mushroom cam pins, heavy anti-lift deadbolts, and European profile anti-snap cylinders rated to EN 1627 RC2/RC3 resistance classes.
Co-Extruded EPDM Gaskets
Continuous dual and triple automotive-grade cellular EPDM vulcanized sealing gaskets offer superior memory retention, UV stability, and ozone resistance, ensuring hermetic seal compression that stops drafts, moisture, and road noise.
PVDF & Marine Grade Finishes
Coated with 3-coat/2-bake fluorocarbon (PVDF) finishes exceeding AAMA 2605 requirements, or Class I anodized films (25 microns) offering 3,000+ hours of continuous salt-spray testing for hyper-saline coastal developments.
Performance Metrics of Premium vs. Conventional Hinged Doors
| Performance Parameter | China Top Tier (DERCHI Spec) | Standard Commercial Grade | Testing & Compliance Standards |
|---|---|---|---|
| Alloy Base & Wall Thickness | Primary 6063-T6 / 2.0 mm – 3.0 mm Heavy Duty | Secondary 6063-T5 / 1.2 mm – 1.4 mm | ASTM B221 / EN 755-2 / GB 5237 |
| Thermal Transmittance (U-Value) | 1.2 – 1.6 W/m²K (with Low-E Argon Triple Glaze) | 2.8 – 3.8 W/m²K (uninsulated or PVC strip) | NFRC 100 / ISO 10077-1 / EN 673 |
| Air Infiltration Rate | ≤ 0.1 m³/(m·h) at 100 Pa (Class 4 Airtight) | ≥ 1.5 m³/(m·h) (Class 1-2) | ASTM E283 / EN 12207 / AS 2046 |
| Water Penetration Resistance | Static 700 Pa to 900 Pa (Cyclonic Sill Drain) | 150 Pa – 250 Pa (Prone to overflow) | ASTM E331 / EN 12208 / AS 2047 |
| Structural Wind Load Deflection | Design Pressure ≥ 4500 Pa (AS2047 N6 Rating) | 1200 Pa – 1800 Pa | ASTM E330 / AS 4055 / AS 1170.2 |
| Acoustic Attenuation (Rw / STC) | Rw 42 dB – 48 dB (with Laminated PVB Glaze) | Rw 28 dB – 32 dB | ISO 717-1 / ASTM E413 / ASTM E90 |
| Operating Hinge Cyclic Endurance | 150,000+ Cycles (316 Stainless Heavy Duty) | 25,000 Cycles (Cast zinc alloy) | EN 1935 Grade 14 / ANSI BHMA A156.1 |
Future Procurement Trends in Architectural Hinged Systems
Strategic supply chain insights for project developers, façade engineers, and large-scale door distributors navigating regulatory, aesthetic, and digital transformations.
Ultra-Slim Visible Profiles with Concealed Hardware
Architectural demand is moving rapidly away from bulky sightlines toward minimalist profiles with visible stile widths under 45 mm. To support heavy structural glass weights within narrow frames, top manufacturers are shifting to concealed 3D adjustable pivot hinges embedded inside the frame chamber, delivering a pristine flush visual plane without sacrificing structural stability.
Embodied Carbon Transparency & Low-Carbon Aluminum
With the implementation of the EU Carbon Border Adjustment Mechanism (CBAM) and North American green building mandates (LEED v4.1), procurement teams require audited Environmental Product Declarations (EPD). Chinese tier-one extruders increasingly utilize hydro-powered and renewable-energy smelting, cutting embodied profile carbon emissions by over 60% compared to traditional coal-fired smelters.
Smart Access & BMS Integration
Hinged entrance doors are evolving into active IoT nodes within automated building management networks. Standard mechanical keys are giving way to integrated concealed electric multi-point mortise locks powered by PoE (Power over Ethernet) or low-voltage runs, enabling biometric recognition, RFID integration, automated motorized release, and cloud-synced audit logs for modern smart estates.
Prefabricated Modular Pre-Hanging
Rising on-site jobsite labor costs across North America, Australia, and Western Europe are driving wholesale importers to procure 100% pre-hung door systems. Factories that CNC mill, assemble frames, hang panels, pre-install multi-point locking gear, and factory-glaze insulated units under clean-room conditions reduce on-site installation labor hours by up to 70%.
Climate-Adaptive Engineering for Emerging Regions
Global climate extremes necessitate tailored door engineering. High-salinity, high-humidity coastal zones (such as West Africa, the Gulf Cooperation Council, and the Caribbean) require specialized combinations of marine-grade powder coating, marine-grade 316 stainless fasteners, and drained sill sub-assemblies. Conversely, high-altitude regions demand pressure-relief capillary tubes inside double-glazed units to prevent seal explosion.
