Engineered Architectural Window & Door Solutions
Precision-machined Fenestration assemblies manufactured in Guangdong Dejiyoupin's ISO-certified robotics plant, built to exceed international building code demands across wind load, water permeability, and acoustic attenuation.

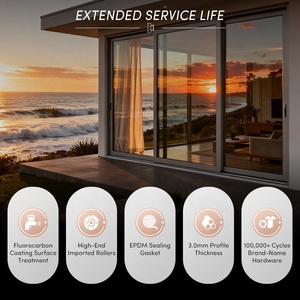

Hurricane Certified Sliding Window
AS2047 and NFRC certified thermal-break sliding framework built with tempered impact glass for severe coastal cyclone regions.
Trackless Aluminum PD Door
Smart dual-action sliding and swing mechanism eliminating bottom tracks for seamless accessibility in modern interior wet zones.
Thermal Break Acoustic Patio Door
Heavy-duty multi-chambered insulated framing coupled with acoustic laminated glazing, engineered for 42dB noise isolation.
Aluminum-Clad Wood Entry Door
Combines architectural solid wood aesthetics on interior faces with marine-grade 6063-T6 aluminum shield on exterior exposures.
Architectural Bifold Balcony Window
High-span folding sash array with German-engineered rollers, offering up to 90% uninhibited clear opening airflow for balconies.
Large Panoramic Fixed Window
Structural glazed oversized picture frames engineered for extreme water pressure barriers, featuring argon gas dual Low-E glass.
Black French Acoustic Casement
Timeless industrial minimalist profile with multi-chamber perimeter gaskets, delivering rigorous forced-entry resistance ratings.
Architectural Frosted Glass Garage Door
Anodized aircraft-grade aluminum sectional frame with shatter-proof frosted safety glass panels and high-torque automated drive.
Engineering Principles of High-Performance Single Hung Windows
Aluminium single hung windows represent one of the most mechanically reliable and structurally sound fenestration investments in modern architecture. Here is how advanced Chinese manufacturing optimizes thermal, mechanical, and envelope efficiency.
Alloy Metallurgical Chemistry
Top-tier China extrusion factories use primary virgin 6063-T5/T6 architectural aluminum alloy, avoiding remelted post-consumer scrap that impairs tensile strength. Profile web thickness strictly complies with ASTM B221 (≥1.4mm for residential, ≥2.0mm for commercial curtain-wall interfaces).
- Yield Strength: ≥ 170 MPa
- Ultimate Tensile: ≥ 215 MPa
- Anodized Film Thickness: Grade AA15/AA25
Polyamide Thermal Barriers
Single hung sash profiles integrate glass-fiber reinforced PA66 GF25 thermal breaks. Mechanical crimping creates an isothermal barrier that interrupts linear thermal bridges, preventing condensation and lowering global U-values below 1.6 W/m²K when combined with Low-E IGU setups.
- Insulation Standard: DIN EN 14024
- Co-extruded EPDM continuous seal strips
- Warm-edge silicone foam spacers
Constant Force Counterbalances
Unlike old spiral torsion rods, modern Chinese manufacturing employs precision stainless steel block-and-tackle and constant-force spring balances (Class 5 AAMA rated). This guarantees smooth vertical glides with operating forces below 15 lbs, even on sash panels weighing up to 80 kg.
- Cycle Lifespan: Exceeding 25,000 actions
- Tilt-latch quick cleaning system
- Concealed zinc alloy die-cast fasteners
| Engineering Metric | Standard Commercial Grade | China High-Performance Export (DERCHI Class) | International Compliance Benchmark |
|---|---|---|---|
| Air Infiltration Rate | 1.5 m³/(h·m) at 75 Pa | ≤ 0.18 m³/(h·m) (Quadruple Finned Seals) | AAMA/WDMA/CSA 101/I.S.2/A440 |
| Water Penetration Pressure | 250 Pa (Normal Rain) | ≥ 700 Pa (Severe Driving Wind) | ASTM E547 / ASTM E331 |
| Structural Design Load | 1800 Pa (Standard DP 35) | 3600 - 5000 Pa (Heavy Coastal DP 70+) | AS2047 Class N6 / TAS 201/202/203 |
| Surface Corrosion Life | AAMA 2603 Powder (5 yrs) | AAMA 2605 70% PVDF / Qualicoat Class 2 (20+ yrs) | ASTM B117 Salt Fog ≥ 3000 hrs |
Emerging Trends in Aluminium Single Hung Window Procurement
International project specifiers and wholesale distributors are shifting procurement habits. Analyzing these macro movements helps developers secure better bulk pricing and long-term asset value.
Narrow Sightlines & Concealed Hardware
Modern luxury architecture prioritizes expansive daylight factor (DF). Chinese single hung extrusions now feature ultra-slim 38mm visible frame widths while hiding counterbalance tracks within internal jamb cavities, offering the sleek aesthetic previously limited to fixed curtain walls.
Prefabricated Flange Integration
Developers targeting rapid North American and Australasian wood-frame or light-gauge steel constructions require built-in integral nailing fins and stucco keys. Chinese plants now supply factory-punched 1-1/4 inch setback fins, cutting job-site installation labor costs by up to 35%.
Extreme Climate & Hurricane Adaptation
Rising meteorological volatility has shifted focus to impact laminated setups (PVB / SentryGlas® interlayers). Bulk tenders in coastal Florida, the Caribbean, West Africa, and Northern Australia mandate ASTM E1886 missile impact and cyclic pressure certification directly at the factory gate.
Guangdong Dejiyoupin Doors & Windows Co., Ltd.
Operating under the world-renowned brand DERCHI, our high-precision manufacturing hub in Shishan Town, Foshan spans over 180,000 square meters of robotic CNC machining centers, automated powder-coating lines, and climatic testing laboratories.
Ranked among China's Top 10 fenestration engineering powerhouses, we serve general contractors, hospitality developers, and wholesale distributors in North America, Europe, Australia, and emerging African metropolises.
Every single hung sash is custom-engineered using finite element analysis (FEA) to verify structural wind deflection limits, thermal breaks, and water resistance before extrusion and mass production begin.
Frequently Asked Questions for Global Buyers
Clear, actionable answers addressing engineering compliance, custom fabrication, quality assurance, and international logistics.
What is the difference between single hung and double hung aluminium windows?
How does your factory ensure compliance with North American AAMA and Australian AS2047 standards?
Can you manufacture custom dimensions and match exact RAL architectural colors?
What packaging and crating protocols prevent maritime shipping damage?
What documentation is provided to support national import customs clearance?
Ready to Engineer Your Next Façade Project?
Send us your window schedules, architectural elevations, or project tender requirements. Our English-speaking fenestration engineers will provide free CAD shop drawings, structural wind-load calculations, and factory-direct pricing within 24 hours.
