CBMmart Miami-Dade NFRC Modern Aluminium Pivot Entrance Doors
- Miami-Dade Hurricane Tested
- Concealed Floor Spring Bearing
Verified Architectural Portfolios
High-Performance Aluminium Concertina & Entrance Systems
Engineered with structural 6063-T6 virgin aluminium alloys, precision bottom-hung stainless-steel carriage rollers, and multipoint shoot-bolt locks for extreme weather resistance.
AOSTTER Large Concertina Aluminium Folding Balcony Door
- Acoustic Laminated Glass (Rw 38dB)
- Heavy-Duty Multipoint Gear

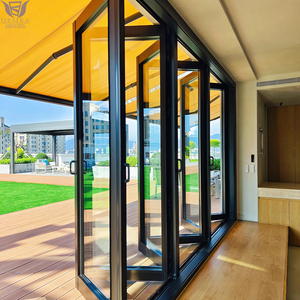

DEMEA Soundproof Double Glazed Custom Accordion Concertina Door
- Polyamide Thermal Break PA66
- Argon-Filled Insulated Units
BOCHARM Ultra-Slim Profile Aluminium Double Glass Bi-Fold Doors
- Minimalist 38mm Sightlines
- Commercial High-Cycle Longevity
JUNYAO AS2047/CE Smooth Glide Roller Accordion Doors
- Heavy Quad-Roller Carriage
- Flush Threshold Barrier-Free
Sound-Insulating Accordion Partition Doors for Hospitality
- Internal Structural Damping
- Dual EPDM Gasket Compression
Veranda Automatic Hurricane Resistant Folding Concertina Doors
- Motorized Smart-Bus Integration
- 4500Pa Ultimate Wind Load
Architectural Bifold Glass Concertina Collapsible Partition Doors
- 90-Degree Zero Post Corner Option
- Fluorocarbon Anodized Finish
Engineering Whitepaper & Structural Specs
Overcoming Deflection, Wind Shear, and Water Infiltration
Why Tier-1 Chinese manufacturers lead global exports: Advanced metallurgy, polyamide thermal performance, and dynamic hardware kinetics that pass the most stringent building audits.
Alloy Metallurgy & Structural T6 Tempering
Standard architectural folding doors often fail under heavy cyclic deflection. DERCHI utilizes primary 6063-T6 billet extrusions with wall thicknesses up to 2.5mm on structural load points, delivering tensile strength above 205 MPa to prevent frame sagging over 6-meter clear spans.
Resists AS2047 N6 serviceability pressures up to 3000 Pa.
Multi-Chamber Polyamide Thermal Barriers
Thermal bridging creates interior condensation and HVAC loss in harsh climates. Our concertina doors feature PA66 GF25 (25% glass fiber reinforced polyamide) techno-strips crimped securely between aluminium chambers, achieving overall U-values down to 1.4 W/m²K with triple argon IGUs.
Complies with strict NFRC & European Energy Performance (EPBD).
Bottom-Hung Kinetics & Dual Drainage Track
Top-hung systems place tremendous torsional strain on building lintels. Our concertina solutions rely on balanced bottom-rolling bogies housed on continuous stainless steel 316 tracks, matched with integrated weep chambers and cascading sub-sills that resist driving rain penetration past 600 Pa.
50,000 continuous cycle open-close lifespan certification.
Strategic Sourcing Horizon
Future Procurement & Architectural Trends (2025–2030)
How international commercial developments and luxury estates are shifting specifications for aluminium concertina and large folding openings.
TREND 01
Ultra-Narrow Sightline Interlocks
Developers are eliminating wide mullions in favor of 35mm–45mm ultra-slim sightlines. By utilizing structural silicone glazing (SSG) techniques, glass itself acts as a diaphragm, allowing greater panoramic openness without loss of wind ratings.
Architectural MinimalismTREND 02
Integrated Flush Barrier-Free Thresholds
Global accessibility mandates (such as ADA standards) and luxury indoor-outdoor flows have spurred demand for zero-step sunken sub-sills that utilize concealed drainage channels capable of handling high-volume tropical downpours.
Zero-Step LivingTREND 03
Smart IoT & Concealed Automation
Motorized bifold solutions equipped with brushless DC servo motors and concealed cable tracks are becoming the benchmark in high-end hospitality and smart mansions, featuring pinch-protection sensors and integration with KNX/Crestron controllers.
Smart AutomationTREND 04
Circular Low-Carbon Aluminium Sourcing
Global sustainability procurement requires low-embodied carbon aluminum verified by EPD (Environmental Product Declaration) certificates, produced using clean hydroelectric smelters and post-consumer recycled billets.
ESG & LEED Compliant
DERCHI / Dejiyoupin
Top 10 Chinese Door & Window Enterprise Brand
Enterprise Reliability & Experience
Direct Manufacturing Authority from Foshan, Guangdong
Backing global builders with over 25 years of specialized facade and entryway engineering. At Guangdong Dejiyoupin Doors and Windows Co., Ltd., we combine mass CNC manufacturing efficiencies with strict Western engineering standards, eliminating intermediary trading markups and communication gaps.
Free Full CAD/BIM Detailing
Complete structural shop drawings, anchor calculations, and drainage elevations before cutting metal.
Plywood Export Crating
Individual foam wrapping, reinforced edge guards, and ISPM-15 heat-treated maritime crates prevent transit warping.
Full International Testing
Validated performance under CE, ISO9001, AS2047, and UL fire door certifications for instant council clearance.
24-Hour Specifier Response
English-fluent architectural sales teams delivering comprehensive takeoffs and factory quotes within 24 hours.
Procurement Knowledge Hub
Frequently Asked Questions on Importing Bifold & Concertina Doors
Real-world insights on structural safety, container logistics, glass thermal performance, and on-site alignment.
What is the maximum achievable height and panel width for aluminium concertina doors? +
Our heavy-duty commercial concertina systems can support panel heights up to 4,000mm (13 feet) and individual panel widths up to 1,200mm, with individual panel weights up to 150kg. For openings exceeding 10 meters in total width, we engineer multi-panel split configurations (e.g., 5+5 or 7+1 configurations) utilizing continuous bottom-hung stainless-steel carriage tracks to prevent deflection along the structural header.
How do Chinese concertina doors perform against tropical typhoons and coastal salt spray? +
For coastal and hurricane-prone areas (such as Florida, the Caribbean, coastal West Africa, or Northern Australia), we configure systems with 6063-T6 profiles, fluorocarbon PVDF coatings (25-year anti-chalking warranty), and 316-marine-grade stainless hardware. Glass units are upgraded to SGP laminated impact glass, and the assemblies undergo testing according to AS2047 (cyclic pressure to 4500Pa) and Miami-Dade TAS201/202/203 standards.
Are doors shipped fully assembled or flat-packed (knock-down)? +
We offer both shipping modes based on client preference and container efficiency. For small residential orders, pre-glazed panels with factory-mounted hinges and hardware are shipped in custom crates for plug-and-play field installation. For large commercial projects, Knock-Down (KD) frames save up to 40% in international sea freight costs. All KD shipments include numbered extrusions, pre-cut EPDM gaskets, and step-by-step 3D video assembly guides.
What import documentation and certification reports do you provide for customs clearance? +
We supply full export documentation sets including Commercial Invoices, Packing Lists, Certificates of Origin (Form E, CO, etc.), Bill of Lading, and certified lab test reports (CE EN14351-1, AS2047, NFRC thermal simulations, and UL listings). For destination ports requiring mandatory pre-shipment inspections (e.g., SONCAP for Nigeria, KEBS PVoC for Kenya, or SASO for Saudi Arabia), we coordinate third-party audits with SGS, Intertek, or CCIC.
Can concertina doors achieve zero-threshold flush finishes without internal water leakages? +
Yes. We engineer flush tracks with integrated internal cascading drainage ports and concealed subterranean discharge slots. Under external wind pressure, water collects in a lower manifold and evacuates via gravity or integrated exterior trench drains. We advise architects to design a minimum 15mm rebate between the finished interior floor level and exterior patio to ensure airtight rubber compression.
Request Detailed CAD Details, System Catalogs & Factory Quotations
Send us your door schedules, project opening dimensions, or architectural elevations. Our technical team delivers structural feedback, glass configuration advice, and container-optimized quotes within 24 hours.
