Engineered Aluminium Wood-Grain Portals & Architectural Enclosures
Manufactured under stringent European standard EN 14351-1:2006+A2:2016, our CE-marked architectural doors and heavy-duty fenestration assemblies deliver natural timber elegance combined with 6063-T6 aerospace-grade structural stability.
Heavy Commercial
YUDON Anti-Theft Aluminum Hotel Entrance Door
AS2047 / Cyclone
Derchi Single Hanging Vertical Sliding Hurricane Sash
Architectural Patio
Commercial Patio French Double Casement Doors
Thermal Barrier
Australian Standard Thermal Break Villa Exterior Door
UL / Fire-Rated
Commercial Fireproof Aluminum Glass Double Entry Door
Acoustic Shield

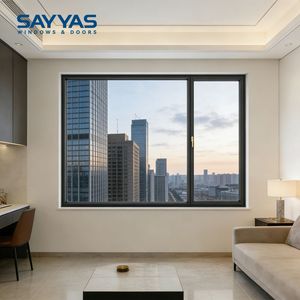

Soundproof Aluminum-Clad UPVC Opening Sashes
Monumental Pivot
Luxury Aluminum Security Pivot Entry Door
Multi-Slide Bifold
Soft Close Lift & Folding Aluminum Glass Bifold
Engineering Fundamentals of CE Certified Wood-Finish Portals
A rigorous metallurgical, thermal, and manufacturing analysis of why extruded aluminium-alloy doors with vacuum 3D-sublimated finishes outperform authentic hardwood in global building projects.
Harmonized European Standard EN 14351-1:2006+A2:2016 Regulatory Directive
In accordance with the Construction Products Regulation (EU) No 305/2011, external pedestrian doorsets intended for residential and commercial envelope integration must carry third-party tested CE Marking. This requires verified compliance across air permeability (EN 12207), watertightness under dynamic load (EN 12208), resistance to wind load (EN 12210), thermal transmittance Ud (EN ISO 10077-1), and burglar resistance (EN 1627 to EN 1630 / PAS 24). As an ISO9001-certified export plant, DERCHI's systems undergo notified-body auditing with issued Declarations of Performance (DoP).
For modern institutional real estate, high-end private villas, coastal resorts, and civic infrastructure, exterior door procurement presents a classic engineering compromise: balancing the warm, biophilic aesthetic of authentic wood with the structural longevity and environmental resilience demanded by high-occupancy codes. Real timber fails systematically in aggressive climatic zones—succumbing to moisture expansion, delamination, termite infestation, and seasonal warp. Wood-finish aluminium resolves this dilemma through a multi-stage fusion of 6063-T6 virgin billet extrusion, thermosetting polyurethane powder bases, and vacuum thermal sublimation (also designated as heat-transfer wood grain technology).
During the sublimation process, profiles are first electrostatically primed with a certified Qualicoat Class 2 architectural powder coating. The profile is wrapped in a specialized polyvinyl alcohol (PVA) film pre-printed with high-definition, organic wood-grain inks. Subjected to 200°C temperatures in a vacuum chamber, the ink pigments undergo phase transformation directly from solid to gas without liquefying, penetrating into the molecular matrix of the cured powder layer at depths of 30 to 50 microns. The resulting finish is completely integrated into the substrate—incapable of peeling, blistering, or flaking under intense UV exposure and maritime salt-fog exposure (verified through 3,000+ hours ASTM B117 salt spray testing).
Engineering Material Matrix: Envelope Portals Compared
| Performance Criterion | CE Certified Wood-Finish Aluminium | Solid Hardwood (Teak / Oak) | Aluminium-Clad Timber Hybrid | Composite WPC / UPVC Portals |
|---|---|---|---|---|
| Structural Rigidity & Span Capability | Exceptional (Yield strength >160 MPa). Large pivot portals up to 6.5m height without deflection. | Moderate. Susceptible to seasonal dimensional movement and dead-load sag. | High. Limited by interior wood frame expansion differential. | Low to Moderate. High coefficient of thermal expansion (ΔL). Requires steel core reinforcement. |
| Thermal Transmittance (Ud Value) | 0.85 – 1.4 W/(m²·K) via PA66GF25 polyamide thermal isolator bars. | 1.3 – 2.1 W/(m²·K) dependent on grain density and moisture absorption. | 0.9 – 1.2 W/(m²·K). Naturally insulating interior timber body. | 1.2 – 1.8 W/(m²·K). Prone to seal failure at extreme temperature deltas. |
| Weather & UV Degradation Resistance | Qualicoat Class 2 super-durable finish. >10-year gloss retention, non-chalking, ΔE < 5. | Rapid surface degradation. Requires re-varnishing every 12–18 months. | High exterior protection; vulnerable interior timber if condensation forms. | Prone to surface yellowing, embrittlement, and micro-cracking under intense UV. |
| Fire Safety Classification | Class A2-s1, d0 (EN 13501-1) or UL fire-rated models up to 120 min barrier integrity. | Combustible (Class D-s2, d0). Releases high heat release rates (HRR). | Interior surface is combustible; requires fire-retardant chemical impregnations. | Class B or C. Releases toxic halogenated hydrogen chloride fumes upon combustion. |
| Marine & Coastal Corrosion (ASTM B117) | >3,000 hrs Neutral Salt Spray (NSS) passed without blister development or creeping corrosion. | Immune to rust, but highly vulnerable to rot, mildew, and fungal decay from ocean moisture. | Moderate. Clad joints can trap salt-laden moisture against untreated wood backing. | Immune to chemical corrosion, but structural steel reinforcements can oxidize internally. |
| Maintenance Cycle & Life-Cycle Cost (LCC) | Lowest LCC. Routine neutral detergent wash every 6 months. Zero paint maintenance. | Highest LCC. Regular sanding, caulking, staining, and insecticide treatment. | Moderate-High. Specialized oiling of interior frames and seal checks. | Moderate. Cannot be resurfaced once micro-cracking or fading occurs. |
Guangdong Dejiyoupin (DERCHI) Global Supply Chain Ecosystem
Headquartered in Foshan, Guangdong—the world’s undisputed epicenter of high-end architectural metal engineering—DERCHI leverages a vertically integrated 180,000 ㎡ smart manufacturing complex backed by 600+ specialists.
Full Regulatory Passport (CE, ISO, AS2047, UL)
Our fenestration and door portfolios hold active CE certifications according to EN 14351-1, ISO9001 quality management seals, Australia AS2047 cyclonic N6 wind compliance, and UL fire classifications. Importers across Europe, North America, Oceania, and Africa (Nigeria SONCAP, Kenya KEBS, South Africa NRCS) receive comprehensive factory documentation and testing reports for immediate municipal approvals.
Turnkey Customization & Free CAD BIM Modeling
Every commercial portal, villa main entrance, or large pivot system is tailored to project specifications. Our 45-member design department issues precision 2D CAD fabrication drawings, 3D structural sectional details, and Revit BIM models within 24 hours. We eliminate site installation errors before aluminum billets enter our 5-axis CNC machining centers.
End-to-End Container Logistics & Packing Protection
Long-distance maritime transit represents a severe failure mode for architectural finishes. DERCHI uses a 5-layer protective packing protocol: scratch-proof blue protective film, heavy cellular pearl cotton, corner impact guards, high-density honeycomb carton wraps, and fumigated steel-bracket wooden crates. Shipped FOB China or CIF to major international terminals including Lagos, Durban, Rotterdam, Sydney, and Los Angeles.
25+ Years Proven Leadership & One-Stop Consolidations
Recognized as one of the Top 10 door and window manufacturers in China, DERCHI empowers international real estate developers, EPC contractors, and building material distributors to consolidate mixed shipments into single 40HQ containers: luxury pivot doors, thermal break French doors, hurricane sliding sashes, interior acoustic doors, and garage doors. Consolidating orders directly from our factory floor cuts transshipment broker markups by 25-40% and simplifies tracking.
Global Sourcing & Procurement Trends: 2025–2030 Outlook
Market intelligence for commercial procurement directors, real estate developers, and international architects navigating carbon compliance, digital building codes, and supply chain reshoring.
Low-Carbon Aluminium (Green Billet) Mandates
European CBAM (Carbon Border Adjustment Mechanism) and LEED v4.1 certifications are accelerating demand for certified low-embodied-carbon primary aluminium smelted with renewable hydro or solar power (<4.0 kg CO₂e/kg Al).
Smart IoT Access & Hidden Actuation Integration
Mechanical keys are giving way to integrated concealed motorization, Tuya/Zigbee home automation links, biometric 3D facial recognition cameras, and fail-safe electromagnetic multi-point latching concealed directly within profile grooves.
Extreme Climate Resilience & Cyclone Enclosures
Rising instances of hyper-cyclones and high coastal wind shear demand door envelopes tested under dynamic cyclic pressures exceeding 4,500 Pa (equivalent to Category 5 winds), reinforced with heavy laminated PVB/SentryGlas interlayers.
Direct Factory Sourcing vs. Multi-Tier Importers
Developers increasingly bypass local trading distributors to deal directly with tier-1 Foshan OEM/ODM plants. Cloud ERP order tracking, digital inspection streaming, and 3D CAD sign-offs enable custom manufacturing with lead times under 25 business days.
Advanced Manufacturing Innovations in Sublimation Portals
Breakthroughs in surface chemistry, composite extrusion, and CNC robotic manufacturing driving the next generation of architectural building envelopes.
The manufacturing of wood-finish aluminium has evolved beyond basic heat-transfer vinyl wrappers. Modern production utilizes hyper-realistic tactile 4D tactile wood grain texturing. By coordinating chemical powder formulations containing microscopic texturing agents with precision digital printing plates, our production lines recreate the tactile feel of natural oak grain, walnut pores, and raw teak rings. The finished profile achieves an authentic timber feel while preserving the flame-spread zero rating and structural integrity of an engineered metal alloy.
Simultaneously, thermal barrier engineering has progressed from simple PVC isolators to multi-cavity Technoform PA66GF25 (polyamide reinforced with 25% glass fiber) thermal break struts paired with continuous multi-chamber automotive EPDM vulcanized sealing gaskets. In cold climates, these systems prevent interior condensation and frost bridging; in tropical environments, they prevent ambient heat influx, reducing HVAC electrical consumption and lowering lifecycle building emissions.
Frequently Asked Questions: B2B Sourcing, Testing & Compliance
Practical engineering answers addressing technical specifications, logistics, minimum orders, and certification documentation for commercial buyers.
What specific documentation is provided to satisfy the CE Marking requirements under EN 14351-1?
How does the wood-finish coating survive intense UV exposure and high coastal humidity?
Can DERCHI engineer doors to match non-standard architectural structural openings and pivot dimensions?
What are the typical minimum order quantities (MOQ), production lead times, and container consolidation terms?
What clearance documentation do you supply for African, Middle Eastern, and Western customs?
What maintenance is required to maintain the warranty for marine/oceanfront installations?
Schedule an Engineering Consultation for Your Project
Send your door schedules, opening dimensions, architectural elevations, or structural specifications. Our bilingual engineering team will provide comprehensive CAD shop drawings, acoustic and thermal ratings, and a competitive factory-direct quote within 24 hours.
