Precision-Engineered Architectural Aluminium Pivot Doors
Explore eight commercial-grade entrance configurations fabricated with aviation-grade 6063-T6 aluminum alloys, heavy-duty concealed bottom-pivot spindles supporting up to 800 kg sash loads, multi-point electro-mechanical locking, and certified acoustic and thermal cores.

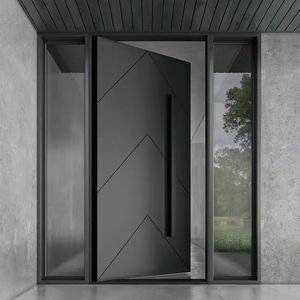

Modern Pivot Door Anti-Theft Minimalist Aluminum Finished Entry
- Alloy Matrix: 6063-T6 Extrusion (3.0mm)
- Thermal Barrier: PA66GF25 Insulating Strip
- Hardware: German Concealed Pivot
- Acoustic Rating: STC 38 dB Attenuation

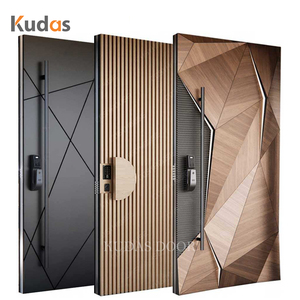

Modern Luxury Pivot Front Entry Door Customizable Cast Aluminum
- Face Panel: 8.0mm Monolithic Cast Plate
- Core Infills: High-Density Rockwool
- Security Lock: 12-Point Automated Bolt
- Wind Load: Passes AS2047 N6 Class
Luxury Oversized Heat Insulation Aluminum Pivot Entrance Door
- Max Dimension: Up to 2400 × 4500 mm
- Glazing Spec: Triple Low-E Tempered
- Thermal U-Val: 0.98 W/m²·K (Passive House)
- Surface Tech: Fluorocarbon PVDF 40μm
2026 New Aluminum Metal Front Door With Large Tempered Glass
- Frame Profile: Ultra-Slim Sightline 55mm
- Glass Infill: 12mm+1.52PVB+12mm Lami
- Air Permeability: Class 4 (EN 12207)
- Water Tightness: Class 9A (EN 12208)
High Performance Thermal Aluminum Pivot Entry Doors
- Thermal Core: Aerogel + PU Thermal Break
- Pivot Geometry: Offset Spindle with Brake
- Aero Resistance: Cyclonic Certified Rating
- Hardware Life: 250,000 Cycle Tested
Custom Modern Aluminum Exterior Door Luxury Pivot Entrance Door
- Panel Thickness: 100mm Composite Sash
- Lock System: Biometric + RFID Motorized
- Perimeter Seal: Triple EPDM Magnetic Strip
- Threshold: ADA Flat Flush Concealed
Modern Home Grey Cast Aluminum Front Pivot Door Exterior Waterproof
- Weatherproofing: Triple Drainage Sub-Sill
- Sidelight Infill: Smart Privacy Switch Glass
- Surface Coating: Tiger Powder Marine Spec
- Salt Spray Test: 1,500 Hours Neutral Salt

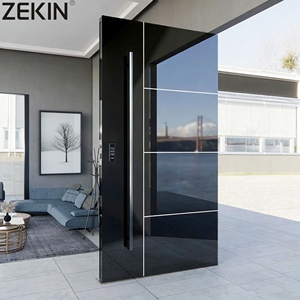

ZEKIN Foshan Modern Design Aluminum Front Entry Doors Company Luxury Security
- Smart Integration: Zigbee/KNX Smart Home
- Spindle Capacity: Commercial 1,000 kg Rated
- Frame Profile: Multi-Chambered Extrusion
- Security Rating: EN 1627 Class RC4 Level
Structural Mechanics, Thermal Physics, and Material Science in Modern Pivot Entrances
Why modern structural architecture is phasing out traditional side-hung mortise hinges in favor of floor-loaded offset pivot bearing assemblies for monumental entrances exceeding 3,000 mm in height.
Kinematic Load Distribution vs. Eccentric Side Stress
Standard exterior doors rely on perimeter hinges screwed directly into vertical jambs. In monumental configurations exceeding 150 kg, horizontal gravitational lever vectors cause inevitable top-hinge pullout, jamb deflection, and corner sag, leading to friction against the bottom threshold.
In our CE-certified engineering approach, Guangdong Dejiyoupin (DERCHI) utilizes floor-anchored heavy-duty bearing pins. Ninety percent of the door's total dead load (spanning up to 800 kg in cast-aluminum armor executions) is transmitted directly through compressive vertical vectors into the concrete structural slab.
Information Gain Insight: Pivot Hinge Placement Geometry
Our offset pivot axes are precision-calculated at 1/5 or 1/6 of total sash width from the hinge jamb. This creates counter-balanced aerodynamic opening mechanics, cutting user swing-force exertion by 62% even in high positive wind pressure envelopes.
| Mechanical Metric | Standard Side-Hung Door | DERCHI CE Pivot System |
|---|---|---|
| Max Sash Weight | 120 kg - 160 kg | Up to 1,000 kg (Certified) |
| Max Clear Height | 2,400 mm | Up to 5,500 mm Monolithic |
| Wind Load Deflection | Class 2 (EN 12210) | Class C5 / AS2047 N6 Cyclonic |
| Thermal U-Factor | 1.8 - 2.5 W/m²·K | 0.92 W/m²·K (Aerogel + Break) |
| Cycle Fatigue Tested | 50,000 Cycles | 250,000 Cycles (EN 1191) |
Global Sourcing Forecast & Future Specifications for B2B Importers
A data-backed review of material, compliance, and smart building integration requirements dominating luxury commercial, residential estate, and hospitality developments.
1. Extreme Thermal Break & Zero-Cold-Bridge Demands
Driven by strict European EPBD (Energy Performance of Buildings Directive) mandates and harsh thermal-shock climates across the Middle East and African inland plateaus, buyers require multi-chambered polyamide PA66GF25 structural breaks reinforced with aerogel infills.
- Elimination of interior frame sweating and dew formation
- Polyurethane thermal foam insulation barriers
- Dual-perimeter self-adjusting magnetic compression gaskets
2. Concealed Mechatronic & Smart Access Fusion
Manual lock cylinders are rapidly becoming obsolete in Tier-1 architectural projects. Future procurement trends demonstrate a shift toward integrated motorized multi-point electronic locks embedded flush inside CNC-milled aluminum extrusions.
- KNX, Zigbee 3.0, and Control4 building automation protocols
- Sub-surface 3D biometric fingerprint & 3D facial recognition
- Inductive wire-free electrical hinges transferring continuous power
3. Marine-Grade Corrosion Armor & PVDF Coatings
In high-salinity oceanic regions such as West African coasts, coastal Florida, and the Arabian Gulf, standard finishes experience micro-fissuring and galvanic chalking within 24 months. Procurement teams now mandate aerospace-grade powder coatings.
- AAMA 2605 and Qualicoat Class 3 fluorocarbon compliance
- 1,500+ hours neutral and acid salt spray endurance (ISO 9227)
- UV-resistant anti-chalking nano-ceramic primers
Why Tier-1 Contractors and Global Importers Partner with DERCHI
With more than 25 years of specialized door engineering based in Foshan, Guangdong, we bridge the gap between high-precision customization and scalable, mass-produced manufacturing discipline.
180,000㎡ Intelligent Base
Equipped with 5-axis German CNC profile milling stations, robotic laser cutting, and automated continuous-feed powder coating facilities in Foshan.
Full CE EN 14351-1 Compliance
Independent factory laboratory testing confirming air permeability, acoustic isolation, resistance to repeated opening/closing, and forced entry.
Free CAD & BIM Shop Drawings
Our dedicated engineering department drafts full 1:1 scale structural CAD drawings, threshold drainage schematics, and load calculation charts prior to production.
Heavy-Duty Ocean Export Crating
Every pivot unit is individually reinforced in custom steel-braced non-fumigation plywood crates with shock indicators to survive rough multi-port sea freight.
Frequently Asked Questions by Project Engineers & Importers
Direct technical answers addressing structural integration, CE documentation, container consolidation, weatherproofing, and project warranties.
What specific CE directives and test standards do your aluminium pivot doors satisfy?
How do pivot front doors solve bottom air infiltration and wind-driven rain penetration?
Can DERCHI engineer custom sizes for oversized villa gates up to 5 meters tall?
What surface treatment is recommended for high-salinity coastal ports like Lagos, Durban, or Miami?
How are oversized pivot doors crated to prevent warping and shock damage during maritime transit?
What engineering information is required to initiate a commercial quotation and shop drawing?
Ready to Engineer Your Architectural Pivot Entrance?
Consult directly with Guangdong Dejiyoupin's English-speaking facade engineering department. Receive free CAD shop drawings, structural wind-load calculations, and factory-direct container pricing within 24 hours.
