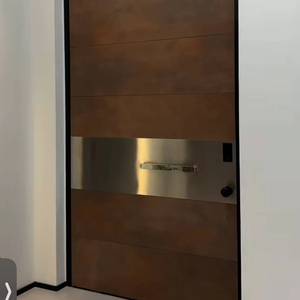

Minimalist Aluminum Pivot Door System Custom Made
Ultra-slim sightlines engineered with concealed floor pivots, multi-point perimeter compression, and seamless thermal barriers.
Product Verification
Precision Architectural Door Systems
Discover our factory-engineered pivot, sliding, and facade systems tested under global fenestration criteria, including AS2047 cyclonic thresholds and CE compliance.

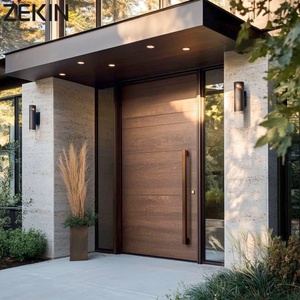

ZEKIN Modern American Design House Heat Insulation Fire Prevention Luxury Entrance Pivot Door House Front Entry Doors
Combines high-density mineral thermal-acoustic insulation with EN-tested fire prevention cores for high-end residential architectural entries.
Customized Aluminum Double Tempered Glass Sliding Door NFRC AS2047 Balcony Courtyard Avoid Hurricane Impact Sliding Door
NFRC rated and AS2047 structural impact certified double-glazed glass sliding systems built to survive intense coastal typhoons.
Commercial Aluminium Smart Glass Storefront Door Exterior Doors For Commercial Buildings Hurricane Impact Storefront Glass Doors
Heavy-duty commercial building storefront profiles integrating PDLC switchable smart glass and cyclone-rated frame reinforcement.

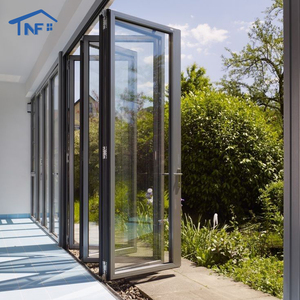

OEM NFRC Waterproof Thermal Break Aluminum Outdoor Exterior Stacking Bi-fold Accordion Folding Sliding Patio Door Bifold Door
Polyamide PA66 thermal breaks offering extreme water-tightness and smooth bottom-hung stainless roller bearings for stacking walls.
DERCHI Multi Panel Aluminum Sliding Door Security Hurricane Proof Sliding Patio Door Modern Home Doors
Multi-track interlock configurations with reinforced structural mullions delivering tested deflection safety and security locking.
Modern 4-Panel Aluminium Bifold Window Aluminum Alloy Frame Stainless Steel Screen Netting Horizontal Opening Folding For Villas
Integrated architectural mesh systems offering natural ventilation, structural stability, insect deterrence, and robust intrusion resistance.

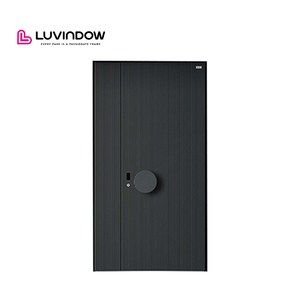

Luvindow Aluminum Doors for House Security Front Entrance Door With Smart Lock
Biometric security integration equipped with mechanical multi-point locking deadbolts and precision CNC engineered extruded casings.
180,000㎡
Production Base Capacity
25+
Years Engineering R&D
100+
Patents & Global Certs
600+
Skilled Technicians
Direct Manufacturer Heritage
Guangdong Dejiyoupin Doors and Windows Co., Ltd.
Recognized among the premier top-tier architectural door and window manufacturers in China, the DERCHI brand delivers 25+ years of dedicated industrial excellence. From our 180,000 ㎡ modern manufacturing facility in Foshan, Guangdong, we engineer advanced fenestration solutions compliant with CE (EN 14351-1), ISO9001, AS2047 (N6 Cyclonic rating), and UL Fire-Rated Listings.
We solve the fundamental challenges encountered by international architects, developers, and commercial contractors: structural load failures in oversized doors, premature anodizing pitting in aggressive marine environments, and water infiltration under extreme wind-driven rains.
Get Catalog
Technical Compliance Standard
Engineering Anatomy of CE Marked Aluminium Pivot Doors
CE Certification under EN 14351-1 is not merely a documentation checklist—it enforces rigorous mechanical load bearing, thermal transmittances (U-values), air permeability, and hydro-static resistance thresholds.
Pivot Hinge Kinematics & Load Physics
Standard butt hinges transfer eccentric rotational loads to the vertical jamb, causing structural sagging in leafs over 200 kg. Our high-performance architectural pivot systems utilize bottom-load mechanical pivot boxes embedded within the structural slab.
- Engineered to support sash weights up to 1,000 kg with near-frictionless swing.
- Dual-action oil-damped hydraulic closures tested through 500,000 operating cycles.
- Multi-axis adjustable alignment (+/- 5mm laterally and vertically) after structural settlement.
Polyamide Thermal Barriers & Deflection
Large aluminum slabs exposed to stark thermal deltas suffer from the Bimetal Effect, bowing the sash outward. DERCHI incorporates multi-chambered polyamide PA66 GF25 insulation bars with sliding mechanical interlocks.
- Thermal transmittance ratings achievable down to Ud ≤ 0.85 W/(m²·K).
- Prevents thermal camber deformation across door heights exceeding 4.5 meters.
- Eliminates internal surface condensation under severe cooling or heating environments.
Acoustic Attenuation & Perimeter Gasketing
A classic vulnerability of pivot doors is perimeter seal discontinuity at the rotational axis. DERCHI deploys continuous co-extruded EPDM rubber gaskets matched with mechanical automatic drop-down bottom acoustic seals.
- Achieves acoustic sound reduction performance of Rw up to 42 dB.
- Automatic concealed threshold seals actuate precisely at 0° closure angle.
- EN 12207 Class 4 Air Permeability and EN 12208 Class 9A Water Tightness.
Market Intelligence & Sourcing Foresight
Future Procurement Trends in Aluminium Pivot Doors (2025–2030)
Global supply chain evolution, sustainable building taxonomies, and building automation demand a progressive approach to commercial and residential entrance sourcing.
1. Low-Carbon Extrusions
Institutional developers specify aluminium extrusions produced via hydro-powered smelting or with over 75% recycled scrap content. Sourcing now mandates verified Environmental Product Declarations (EPDs) to satisfy LEED v4.1 and BREEAM building scoring.
2. Monolithic Smart Glazing
Integrating electrochromic switchable glass (PDLC) directly into the pivot leaf core. Dynamic solar heat gain coefficient (SHGC) modulation enables large-format architectural vision lites that maintain thermal compliance without secondary external shading.
3. Motorized Automation
Heavy monumental pivot leaves (400kg–1000kg) are transitioning toward fully concealed brushless servo-motors. Automated systems connect seamlessly with KNX, Zigbee, and building management protocols, backed by battery uninterruptible power systems.
4. Extreme Weather Resiliency
Rapid climate shifts necessitate elevated wind load standards. AS2047 cyclonic N6 certifications (wind pressures exceeding 4.0 kPa) and Miami-Dade projectile impact standards are spreading beyond coastal regions into global building codes.
Material Science & Durability
Surface Metallurgy and Alloy Optimization
How DERCHI formulates structural alloys and exterior surface treatments to eliminate maintenance in aggressive industrial and high-salinity marine environments.
6063-T6 vs. 6061-T6 Structural Aluminum
We deploy virgin 6063-T6 architectural grade alloy for precision door framing profiles requiring immaculate extrusion tolerances, paired with high-tensile 6061-T6 internal structural bracketry at anchor stress nodes to prevent hinge sag and corner joint fatigue under perpetual static load.
- Tensile strength exceeding 240 MPa.
- Precision CNC miter jointing with chemical cold-weld crimping.
Qualicoat Seaside-Grade Powder Coating
Standard architectural powder coats quickly chalk and flake under intense UV radiation and salt mist. We utilize certified Qualicoat Class 2 & Class 3 fluorocarbon (PVDF) formulations capable of withstanding 3,000+ hours of continuous neutral salt spray (ASTM B117) testing.
- Exceptional color retention: Delta E < 5 after 5 years high UV exposure.
- Resistant to abrasive coastal desert dust storms and oceanic salt fog.
One-Piece Solid Cast Aluminium Facings
For prestigious monumental main entries, we engineer monolithic cast aluminium outer panels. Poured without welding seams, these skins yield deep 3D sculptural reliefs that are completely impervious to rust, peeling, moisture delamination, and impact vandalism.
- Zero risk of panel separation in tropical humidity.
- Superior surface hardness with integrated anti-scratch metallic patinas.
Procurement Due Diligence
Frequently Asked Questions for Project Bidders & Wholesalers
Direct answers addressing supply chain logistics, engineering compliance, submittal packages, and operational lifecycle warranties.
What specific standards must an aluminium pivot door meet to carry genuine CE certification?
Under European Construction Products Regulation (CPR 305/2011), the door must comply with EN 14351-1:2006+A2:2016. This requires verifiable test laboratory reports verifying Wind Load Resistance (EN 12210), Water Tightness (EN 12208), Air Permeability (EN 12207), Thermal Transmittance calculation (EN ISO 10077-1/2), and Operating Forces (EN 12217). DERCHI provides full Declaration of Performance (DoP) documents with every commercial consignment.
How do you prevent water and air leakage around pivot doors lacking conventional rebates?
Pivot doors naturally rotate within an open frame without a fixed continuous perimeter stop. We resolve this via a patented dual-seal matrix: co-extruded compression EPDM fin gaskets on the vertical stiles and an automatic mechanical concealed drop-down seal along the top and bottom rails. Upon complete closure, the bottom seal drops into an anodized sub-sill drainage pan that ejects driven moisture outward.
What crating and packaging protocols protect oversized pivot doors during ocean transit?
Oversized pivot doors represent high surface area vulnerability. We utilize a three-stage export crating protocol: First, frames and panels are vacuum-sealed in protective shrink-wrap with silica gel desiccant packs. Second, edges receive high-density EVA shock-absorbing foam bumpers. Finally, assemblies are bolted into non-fumigation plywood crates with internal timber bracing to eliminate lateral flexing.
Can DERCHI provide architectural CAD shop drawings and structural submittals?
Yes. Our dedicated in-house engineering team provides complete 2D/3D CAD shop drawings, structural anchor calculations, BIM Revit models, and elevation cross-sections free of charge within 24 to 48 hours of opening size submission. Production starts solely after the project architect or contractor counter-signs and approves the submittal package.
What are standard production lead times and FOB/CIF shipping options?
Standard custom architectural manufacturing ranges from 25 to 35 business days following shop drawing sign-off and finish sample approval. We offer flexible Incoterms including EXW, FOB (Shenzhen/Guangzhou/Foshan), CIF, and DDP to major global commercial hubs across North America, Europe, Australia, the Middle East, and Africa (Lagos, Tema, Mombasa, Durban).
How are high-traffic commercial building entrances accommodated?
For hotel lobbies, corporate headquarters, and high-volume retail environments, we configure our pivot systems with DormaKaba or FritsJurgens concealed self-closing pivot hinges rated up to 1,000,000 operational cycles, combined with magnetic shear locks, electric latch-retraction hardware, and ADA-compliant zero-barrier thermally broken thresholds.
