CE Certified
Fuson Broken-Bridge Soundproof Sliding & Drift System
Broken Bridge 6063-T5
Rw 42 dB Acoustic
Dual Gasket
Engineered Fenestration Portfolio
Precision-Engineered Aluminium Door & Window Systems
Explore our top-performing exterior aluminium doors, thermal break sliding assemblies, contemporary pivot entrances, and heavy-duty glazed facade systems. Each unit is custom-fabricated to project specifications with certified wind-load, acoustic, and thermal ratings.
CE / EN 14351-1
American Style Architectural Main Entrance Exterior Pivot Door
Heavy Pivot Hinge
Multi-Point Motorized Lock
Timber & Alu Core
AS2047 & CE
Tengying Dresdner Card 2 Modern Thermal Break Casement System
Double Argon Glazing
Polyamide Strip
RAL Brown Powder
CE Certified
Alu-Clad Architectural Wood-Composite Exterior Casement Systems
Bronze Powder Cladding
Solid Oak Interior
Uw ≤ 1.1 W/m²K
NFRC & CE

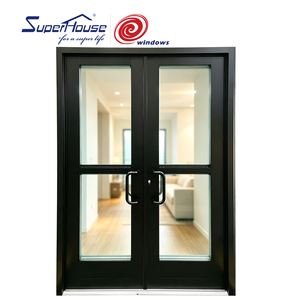

Superhouse Heavy Commercial Insulated Glass French Entry Door
Double Tempered E-Glass
Heavy Duty Stile
Panic Bar Compatible
CE & ISO9001
EOKO High-Efficiency Balcony Sliding Door (U-Value 1.2 W/m²K)
PA66 Thermal Break
Integrated Screen
Stainless Lift Rollers
Industrial Grade
Heavy-Duty Industrial Acoustic Multi-Panel Sliding System
3.0mm Wall Thickness
450kg Sizing Capacity
Anodized Bronze
CE / EN 12210
Storefront Thermal Break Acoustic Accordion Folding Bifold Door
Flush Sill Track
EPDM Quad-Seals
Commercial Hardware
Metallurgical & Standards Authority
Engineering Principles of CE Certified Aluminium Brown Doors
Under the European Construction Products Regulation (EU CPR No 305/2011), exterior pedestrian doorsets must rigorously satisfy EN 14351-1:2006+A2:2016. Discover the exact structural, surface chemistry, and thermodynamic metrics that define our manufacturing standard.
Alloy Extrusion & Temper (6063-T6)
We source primary A00 virgin aluminium ingots formulated to EN AW-6063 per EN 573-3. Profile wall thicknesses measure 2.0mm to 3.0mm, exceeding European structural load thresholds for Class C5 wind resistance under EN 12210. Artificial aging to T6 temper ensures tensile yield strength ≥ 170 MPa.
Qualicoat Class 2 Architectural Finishes
Our deep earth, bronze, and brown spectrum (RAL 8014 Sepia, RAL 8019 Grey Brown, RAL 8028 Terra) incorporates electrostatically cured fluoropolymer resins and Qualicoat Class 2 super-durable powders. Engineered to survive 3,000+ hours of continuous salt spray (ISO 9227) without chalking or blistering.
Polyamide Thermal Barrier Technology
Thermal breaks utilize 24mm to 34mm multi-cavity PA66 GF25 polyamides (reinforced with 25% glass fiber) mechanically knurled and rolled between outer and inner aluminium extrusions. This achieves door frame Uf values down to 1.3 W/m²K, preventing internal condensation.
| Performance Parameter | European Test Standard | DERCHI Factory Achieved Rating | Architectural Impact |
|---|---|---|---|
| Air Permeability | EN 1026 / EN 12207 | Class 4 (600 Pa maximum test pressure) | Zero perceptible draft; HVAC energy losses cut by 35% |
| Watertightness | EN 1027 / EN 12208 | Class E1200 (Withstands 1200 Pa driving rain) | Full weather protection for coastal and high-precipitation villas |
| Wind Load Resistance | EN 12211 / EN 12210 | Class C5 / B5 (±3000 Pa structural load) | Zero frame deflection on super-tall entrance elevations |
| Acoustic Attenuation | EN ISO 10140-2 / ISO 717-1 | Rw (C; Ctr) = 42 dB (-1; -4 dB) with laminated IGU | Eliminates urban traffic noise and external airborne resonance |
| Thermal Transmittance (Uw) | EN ISO 10077-1 / EN ISO 10077-2 | Uw ≤ 1.1 W/m²K (Triple Low-E + Warm Edge) | Exceeds strict European Near-Zero Energy Building (NZEB) mandates |
| Burglar Resistance | EN 1627 / EN 1630 | RC2 to RC3 Standard (Multi-point steel deadbolts) | High physical forced-entry resistance with anti-drill lock housings |
Strategic Foresight
Future Procurement Trends in Architectural Aluminium Doors
Global supply chains, real estate developers, and commercial specifiers are confronting stricter carbon taxation, digital auditing requirements, and integrated automation demands. Here is what procurement directors must evaluate for 2026–2030 sourcing cycles.
Design & Innovation Vector
Architectural Evolution: The Rise of Aluminium Bronze & Brown
From contemporary Scandinavian minimalism to grand Mediterranean facades, brown and bronze finishes have re-emerged as the primary luxury palette, replacing stark monochrome tones with natural, warm earth textures.
Ultra-Slim Sightlines
Hidden sash designs and flush floor tracks decrease visible aluminium frames to under 38mm, delivering unobstructed visual continuity and maximizing daylight entry through floor-to-ceiling glass apertures.
Monolithic Oversized Pivots
Hydraulically balanced floor springs can bear single panels up to 3000mm width and 5000mm height with weights over 600kg, opening with effortless fingertip glide.
Deep Metallic Texturing
Advanced anodizing and physical vapor deposition (PVD) impart authentic copper, bronze, and brushed brown textures without the ongoing oxidation maintenance of raw metals.
Active Acoustic Sealing
Quadruple co-extruded EPDM weatherstripping with magnetic drop-down bottom threshold seals creates continuous airtight envelopes that block fine sandstorms and urban acoustics.
Guangdong Dejiyoupin Doors & Windows Co., Ltd. (DERCHI)
Uncompromising Quality from China's Foremost Fenestration Base
Recognised among China's Top 10 premium architectural door and window manufacturers, DERCHI combines 25+ years of specialized fenestration expertise with a modern 180,000 ㎡ smart manufacturing base located in Foshan, Guangdong.
- International Accreditation: Fully certified for CE (EN 14351-1), ISO9001, Australian AS2047, and UL fire-rated specifications.
- Precision German Tooling: CNC-driven 5-axis profile machining centers ensure miter joint tolerances ≤ 0.1mm for perfect corner aesthetics.
- Full Supply Chain Consolidation: Single-source delivery for exterior pivot doors, bifold walls, casement windows, and automatic garage systems.
- Global Project Export Logistics: Export-grade fumigated wooden crate protection with container-level weight optimization for ports globally.
Procurement Knowledge Base
Frequently Asked Questions for Commercial Buyers & Importers
Detailed technical, logistical, and compliance answers prepared by our senior engineering and export management team.
What specific test criteria must an aluminium brown door satisfy to carry legitimate CE certification? +
To bear the legitimate CE marking under EN 14351-1:2006+A2:2016, an external pedestrian doorset must undergo Initial Type Testing (ITT) by an accredited European Notified Body. Essential characteristics evaluated include: Air Permeability (EN 1026/EN 12207, reaching up to Class 4), Watertightness (EN 1027/EN 12208, minimum Class 7A or higher), Resistance to Wind Load (EN 12211/EN 12210, Class C3–C5), Acoustic Performance (EN ISO 10140-2), and Thermal Transmittance (EN ISO 10077-1/-2). DERCHI provides complete Declaration of Performance (DoP) documents and factory production control certificates with every container export.
How does the brown/bronze surface finish resist ultraviolet fading and chalking over a 15-25 year lifecycle? +
Our architectural brown profiles are finished with Qualicoat Class 2 certified super-durable thermoset architectural powders (such as AkzoNobel Interpon D2525 or Tiger Drylac) or high-performance architectural fluorocarbon (PVDF) 3-coat/2-bake liquid coatings containing > 70% Kynar 500 resin. These formulations withstand extreme Florida weathering tests (5 years South Florida exposure) retaining > 50% gloss and displaying ΔE color variation < 5 units, rendering them completely immune to intense sunlight degradation, coastal salt mist, and humidity.
Can DERCHI supply complete CAD shop drawings, BIM models, and structural calculations prior to production? +
Yes. Our internal engineering department of 30+ structural designers generates millimeter-accurate 2D CAD fabrication shop drawings, elevation details, anchoring schedules, and 3D Revit BIM objects for every custom door order. Production does not commence until the client's project architect, general contractor, or procurement director formally signs off on the shop drawings, hardware locations, glass makeup, and sill threshold elevations.
What are the lead times for custom-dimensioned commercial and residential aluminium door orders? +
Standard custom production timelines range from 25 to 35 days from finalized CAD sign-off and deposit receipt. For complex finishes (such as custom fluorocarbon bronze anodizing or curved arch frames), lead time averages 35 to 40 days. We operate 12 advanced automated production lines across our 180,000 ㎡ base, ensuring scalable output for both private luxury villas and multi-hundred-unit commercial hospitality contracts without delivery bottlenecks.
How are oversized pivot and heavy-duty sliding doors protected against damage during ocean freight transit? +
Every door unit is wrapped in multi-layer shock-absorbing polyethylene foam, edge-guarded with rigid corner shields, shrink-wrapped against moisture, and crated inside fumigated, high-strength plywood boxes reinforced with steel banding. For oversized pivot leaves exceeding 3.5m, custom internal steel bracing frames prevent torsional deflection during crane hoisting and heavy container movement across sea routes.
Can your door assemblies integrate with European smart access control, electric strikes, and building automation? +
Yes. We engineer internal concealed cabling channels through the door stile, pivot knuckle, and hinge axis. Our systems can be factory-fitted with German (GU, Siegenia), Italian (Savio), or custom motorized multipoint locksets compatible with 12V/24V DC signals, dry contact relays, biometric fingerprint/facial readers, and protocol bridges for BACnet, Modbus, or KNX smart automation networks.
Direct Factory Procurement Partnership
Ready to Specify CE Certified Aluminium Brown Doors for Your Next Development?
Connect with our senior technical engineering team today. Send us your project schedules, opening elevations, or tender documents to receive detailed structural feedback, certified test documentation, and transparent FOB/CIF pricing within 24 hours.
