High-Performance Certified Big Window Systems
Engineered for high-wind static loads, thermal insulation, and maximized daylight openings. Factory direct supply with complete European CE and international certifications.

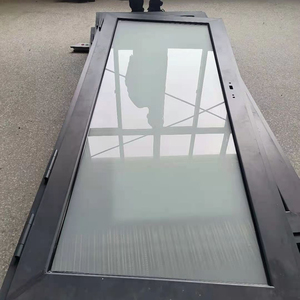

Modern Hurricane Impact Storm Casement Windows
- PVB Laminated SentryGlass Glazing
- Design Pressure up to +80/-80 PSF
- Heavy-duty multi-point security cams
Large Glass Soundproof Bi-fold Folding Windows
- Stainless steel bottom rolling carriages
- Acoustic laminated triple-seal profile
- Flush threshold with hidden drainage
Thermal Break Big Panel Awning & Casement System
- Polyamide PA66 GF25 thermal struts
- U-Factor down to 1.35 W/m²K
- Structural awning hinge capacity 180kg
Panoramic Fixed Picture Window with Double Low-E
- Jumbo glass formats up to 12m² panel
- Structural silicone factory-glazed (SSG)
- Solar heat gain coefficient (SHGC) 0.28

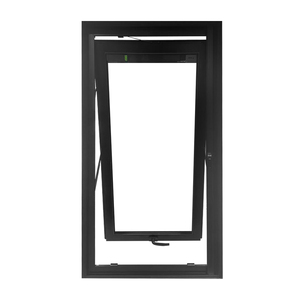

Commercial Heavy-Duty Aluminium Casement Windows
- Wall thickness 2.5mm 6063-T6 alloy
- European standard Class C5 wind load
- Concealed hinges support 250kg sash

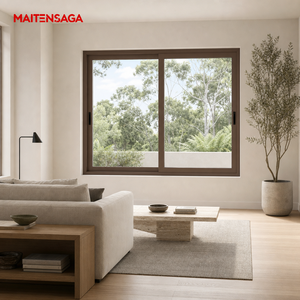

Triple-Glazed Thermal Break Sliding Window System
- Argon gas filled warm edge spacer bar
- Multi-track system with flyscreen rail
- Effortless glide up to 400kg per sash
Slim-Frame Narrow Profile Minimalist Large Window
- 26mm ultra-narrow visible interlock
- 95% glass-to-frame architectural ratio
- Continuous perimeter EPDM vulcanized seal

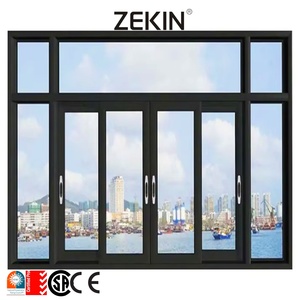

Insulated Coastal Architectural Sliding Systems
- Qualicoat Seaside powder coating
- Tested to 3,000 hrs acetic salt spray
- Multi-point latch with anti-lift design
CE Marking Criteria & Structural Mechanics for Big Windows
Procuring oversized fenestration systems demands strict conformance with European harmonized standards. Here is an in-depth technical analysis of structural safety, air permeability, and thermal modeling.
EN 14351-1 Mandatory Harmonization
Under EU Regulation (CPR) No 305/2011, external windows require Factory Production Control (FPC) audit. Our CE certificates explicitly attest to Declaration of Performance (DoP) parameters covering load-bearing hardware durability, release of dangerous substances, and acoustic performance.
Wind Load & Deflection Mechanics
Oversized panels require finite element structural analysis. In accordance with EN 12210, we engineer mullions and transoms with moments of inertia (Ix, Iy) engineered to withstand wind pressures up to Class C5 (2000 Pa design pressure) with frontal deflection capped strictly at L/300.
Thermal Modeling (ISO 10077-2)
Preventing condensation across large glass expanses relies on multi-cavity polyamides (PA66 GF25) engineered alongside thermal isolators. We formulate full fenestration overall Uw ratings as low as 1.1 W/m²K using triple-silver Low-E coatings and argon gas fill rates exceeding 90%.
Information Gain Insight: While standard residential windows measure under 2.4 meters in height, commercial big window systems (exceeding 3.2m to 6.0m) face exponential increases in wind deflection and deadweight stresses. Our systems utilize 6063-T6 architectural aluminum alloy extrusions engineered with specialized steel internal reinforcement bars (reinforcing liners) to ensure zero permanent structural set under cyclic negative wind loads.
| Performance Criterion | European Test Standard | DERCHI Factory Achieved Rating | International Equivalents |
|---|---|---|---|
| Air Permeability | EN 12207 | Class 4 (600 Pa) | ASTM E283 Class A3 / AS2047 Level 4 |
| Watertightness (Static) | EN 12208 | Class E1050 (1050 Pa) | ASTM E331 15.0 PSF / AS4420.5 |
| Wind Load Resistance | EN 12210 | Class C5 / B5 (2000 Pa) | ASTM E330 60 PSF Design / AS2047 Serviceability |
| Thermal Transmittance (Uw) | EN ISO 10077-1/2 | 0.95 - 1.4 W/m²K | NFRC U-Factor 0.17 - 0.25 Btu/h·ft²·°F |
| Acoustic Attenuation (Rw) | EN ISO 717-1 | Rw 42 dB (-1; -4) | ASTM E413 STC 43 / OITC 36 |
| Safety Impact Test | EN 13049 | Class 5 (Highest) | Miami-Dade TAS 201/202/203 Hurricane Spec |
Procurement & Technological Trends in Big Window Engineering
Global developers and architectural consultants are transitioning from standard fenestration to low-carbon, smart-integrated, and structural glass facade systems.
1. Ultra-Minimalist Sightlines with Hidden Drainage
Architects increasingly demand zero-profile perimeter frames where outer jambs and headers are entirely recessed into the building envelope. Floor-to-ceiling big windows now require concealed sill drainage troughs capable of handling rainfall rates exceeding 150 mm/hour while preserving unbroken sightlines.
2. Decarbonized Aluminium & EPD Documentation
Tier-1 contractors across Europe, North America, and Australia now mandate Environmental Product Declarations (EPDs). Procurement trends prioritize prime billets smelted using renewable hydro-electric energy (<4.0 kg CO2e per kg Al), coupled with 100% recyclable polyamides for green building ratings like LEED and BREEAM.
3. Smart Automation & Integrated Actuation
Large vent windows (often weighing 200kg to 500kg) are shifting from manual operation to concealed linear actuators integrated into Building Management Systems (BMS). KNX- and Zigbee-ready mechanisms automate nighttime purge ventilation, motorized blind integration, and perimeter security monitoring.
Guangdong Dejiyoupin Doors & Windows Co., Ltd. (DERCHI)
With more than 25 years of relentless manufacturing innovation, Guangdong Dejiyoupin Doors and Windows Co., Ltd. has established itself as China’s premier top-tier architectural fenestration brand. Operating from an expansive 180,000 ㎡ modern digital facility in Foshan, Guangdong, we bridge the gap between design vision and strict engineering validation.
- End-to-End Vertical Control: Extrusion anodizing, CNC 5-axis profile machining, glass lamination, robotic thermal crimping, and assembly under one roof.
- Independent Testing Laboratory: In-house 4-chamber air, water, and cyclic structural testing rigs validating each design prior to overseas shipping.
- Project Coordination & Shop Drawings: English-speaking structural facade engineers providing BIM LOD 350 models, CAD shop drawings, and structural calc sheets for consultants.
Frequently Asked Questions on Big Window Sourcing
Essential technical, regulatory, and logistics answers for commercial developers, architects, and international importers sourcing from China.
What constitutes valid CE compliance for aluminium windows exported to the EU?
Under EN 14351-1, manufacturers must produce an authentic Declaration of Performance (DoP) based on Initial Type Testing (ITT) conducted by a notified testing body, complemented by an active ISO 9001 / Factory Production Control (FPC) system. DERCHI provides complete documentation packages that satisfy EU building code inspectors.
How do you prevent glass breakage and profile deflection during ocean transit?
Oversized glass units are secured with customized fumigated steel A-frames, equipped with vibration-damping rubber gaskets and desiccant-infused vapor-barrier packaging. Profile corners are reinforced with structural corner guards to endure sea swells without glass delamination or squareness distortion.
What structural alloy specifications are used for big window mullions?
We mandate architectural grade 6063-T6 or 6005A-T6 aluminium alloys with minimum profile wall thicknesses of 2.0mm to 3.5mm for main structural sections. For large panoramic assemblies exposed to severe coastal winds, we integrate galvanized steel or carbon composite internal reinforcement bars.
Can your factory supply dual-color and coastal-grade anti-corrosion coatings?
Yes. Our automated vertical powder coating lines are Qualicoat Class 2 and Seaside certified. We offer PVDF (fluorocarbon) finishes exceeding AAMA 2605 specifications with 20+ year weatherability warranties, plus bi-color anodizing (different exterior/interior colors) via thermal break separation.
What is the maximum glass sash weight supported by your big window hardware?
For large turn-tilt and casement windows, we integrate heavy-duty concealed German Siegenia or Sobinco hardware systems certified for sash loads up to 300kg. For sliding and bi-folding systems, our floor-supported stainless steel tandem rollers smoothly navigate weights exceeding 500kg per sash.
How do you manage thermal expansion across continuous aluminium spans over 6 meters?
Long aluminium spans require dedicated expansion mullion assemblies (slip joints) with vulcanized EPDM expansion gaskets engineered to absorb 5mm–10mm thermal movement without stressing the insulated glass units or compromising air and water seals.
Ready to Engineer Your Architectural Window Schedule?
Submit your CAD drawings, opening schedules, or tender specifications. Our technical engineering team provides structural wind load analysis, thermal Uw calculations, and direct factory quotation packages within 24 hours.
