CE Certified Aluminium Bifold Windows Factory & Suppliers

Global Engineering Whitepaper: Precision Architectural Glazing, Thermal Performance Benchmarks, and Turnkey Supply Chain Insights for Structural Builders & Commercial Importers

180,000 m²
Integrated Factory Base
25+ Years
Precision Fenestration
CE / AS2047
Multi-Standard Verified
80+ Countries
Containerized Direct Supply
ENGINEERING CATALOG

Precision CE-Certified Architectural Systems & Fenestration Matrix

Explore our industrial range of precision-manufactured folding windows, glazed structural walls, entrance pivots, and high-spec security systems configured to European EN and Australian AS standard envelopes.

Aluminum Folding Window Commercial Tempered Glass Accordion Villa Bifold Window

Aluminum Folding Window Commercial Tempered Glass Accordion Vertical Folding Modern Exterior Villa Bifold Window

Profile: 6063-T5 Thermal Break / Non-Thermal Glazing: 5mm+12A+5mm Double Low-E Hardware: Top-Hung Heavy Load Carriage
Spec Sheet → Get a Quote

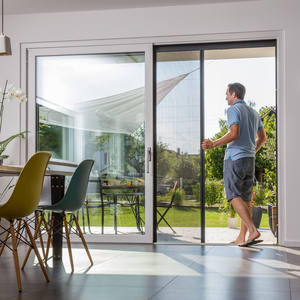

Aluminum Pleated Mesh Folding Insect Screen Door

Aluminum Alloy Frame Pleated Mesh Folding Screen Doors Blinds Components Patio Insect Sliding Fly Screen Door

Mesh: Water-Repellent High Tenacity Polyester Track: 3mm Ultra-Low Barrier Flush Sill Integration: Dual Bifold System Compatible
Spec Sheet → Get a Quote

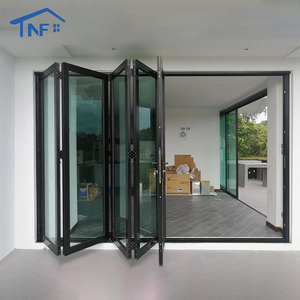

Modern Aluminum Bi-Fold Frameless Glass Doors

Aluminum Alloy Modern Hotel Exterior Bi-fold Frameless Glass Double Panel Doors Thermal Insulation CE Certified

Thermal U-Value: 1.6 W/(m²·K) Engineered Finish: AkzoNobel Fluorocarbon Coated Testing: CE EN 14351-1 Impact Compliance
Spec Sheet → Get a Quote
Aluminum Roller Shutter Door for Garage Warehouse

High Quality Aluminum Alloy Roller Shutter Door Electric / Manual for Garage Warehouse

Slat Profile: Double Hollow Extrusion PU Insulated Automation: Somfy Tubular / Central Drives Wind Rating: Class 4 Dynamic Resistance
Spec Sheet → Get a Quote

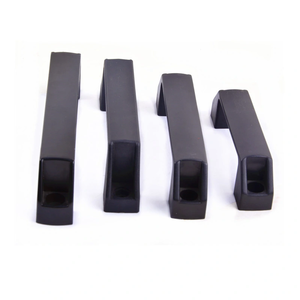

Bakelite Handles for Aluminum Doors and Windows

Bakelite Door Handles for Aluminum 90/120/180 Door & Windows Architectural Hardware

Material: Thermo-Hardened Bakelite Matrix Ergonomics: Multi-Point Cremone Actuation Salt Spray: 1,000+ Hours ASTM B117 Rating
Spec Sheet → Get a Quote
Thermal Break Double Glazed Aluminum Sliding Window

EOKO AS 1288 Thermal Break Aluminum Sliding Window Tropical Regions Double Glazed Heavy Duty

Compliance: AS2047 & AS1288 Australian Mark Acoustic: Rw 38 dB Attenuation Core Weathering: 450 Pa Water Infiltration Seal
Spec Sheet → Get a Quote

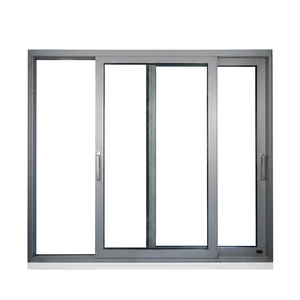

Custom Double Glazed Sliding Aluminium Doors Windows Dubai

Custom Double Glazed Glass Sliding Aluminium Doors and Windows High Heat Isolation Middle East Spec

Solar Factor: SHGC 0.23 Intense Heat Blocker Track Design: Triple Rail Hurricane Sump Track Seal: EPDM Co-Extruded Dual Barrier
Spec Sheet → Get a Quote

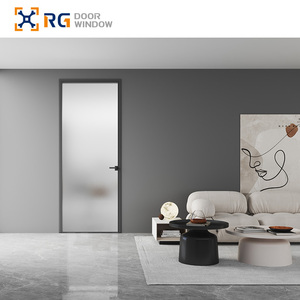

RG50 Double Tempered Glass Aluminium Casement Door

RG50 Modern Casement Door High Quality Heat Proof Sound Insulation Double Tempered Glass Fiberglass

Structural: Reinforced 2.0mm Heavy Extrusion Isolation: Multi-Chamber Polyimide Strip Locking: German Multi-Point Hook Deadbolt
Spec Sheet → Get a Quote
WHITE PAPER ANALYSIS

CE Certification (EN 14351-1) & Structural Kinematics in High-End Bifolds

In-depth technical criteria determining life-cycle longevity, resistance to cyclonic pressures, and thermal envelope calculations across commercial and residential developments.

Thermal Barrier Architecture

Utilizing PA66 GF25 (polyamide 66 reinforced with 25% glass fiber) thermal breaks creates a continuous thermal disconnect. This suppresses bridging, prevents internal condensation in high humidity zones, and drives overall assembly U-values below 1.4 W/(m²·K).

Static & Dynamic Wind Load

Engineered under EN 12210 Class C5 / AS2047 N6 cyclonic testing, our bifold frames resist deflection up to 3000 Pa test pressures. Structural mullions and heavy-gauge 6063-T6 corner keys maintain deflection thresholds within L/250 parameters under intense wind vectors.

Continuous Kinematic Load

Precision stainless-steel 316 carriage rollers distribute sash loads up to 150 kg per panel across quad-bearing bogies. Tested past 50,000 continuous opening cycles without track deformation, guaranteeing frictionless operation in commercial hospitality portals.

Acoustic & Hermetic Sealing

Multi-barrier co-extruded EPDM weatherstripping with vulcanized corner boots delivers airtightness compliant with EN 12207 Class 4. Coupled with acoustic laminate warm-edge glass units, external traffic noise is mitigated by up to Rw 42 dB.

Performance Vector Test Standard DERCHI Architectural Spec Commercial Advantage
Air Permeability EN 12207 / AS 4420.4 Class 4 (600 Pa test pressure) Minimizes HVAC loss; eliminates draft ingress in multi-story towers.
Watertightness EN 12208 / AS 4420.5 Class 9A (600 Pa spray bar) Zero water penetration during monsoon conditions; concealed sill drainage.
Wind Load Resistance EN 12210 / AS 4420.2 Class C5 / Cyclonic N6 (>3000 Pa) Certified for high-rise commercial facades and exposed coastal villas.
Thermal Transmittance (Uw) ISO 10077-1 / EN 673 1.3 to 1.8 W/(m²·K) customizable Satisfies LEED Gold, BREEAM, and rigorous regional green building bylaws.
Forced Entry Resistance EN 1627-1630 (RC2 / RC3) Multi-point shoot-bolt locking High physical resistance to tampering; integrated anti-lift sash channels.

Procurement Intelligence Note: Overcoming "Paper CE" Risks

In global sourcing, factory certification authenticity directly impacts compliance clearance. CE marking for fenestration requires Factory Production Control (FPC) verified under EN 14351-1 Annex ZA, supported by Initial Type Testing (ITT) from notified laboratories. DERCHI furnishes traceable, project-specific Declarations of Performance (DoP), structural load deflection charts, and mill material test certificates (MTC) verifying alloy chemical composition (6063-T5/T6 to ASTM B221).

PROCUREMENT HORIZONS

Emerging Procurement & Architectural Engineering Trends (2025–2030)

Strategic movements transforming the global fenestration supply chain from simple component sourcing to integrated, digitized, and zero-carbon building enclosures.

Micro-Sightline Framing

Architectural demand is rapidly moving away from bulky 90mm face widths toward ultra-narrow 45mm–55mm visible mullions. By utilizing structural cold-rolled core stiffeners within high-yield aluminum, architects achieve monumental 3.5-meter sash heights while maintaining a 92% glass-to-frame visual ratio without compromising lateral wind ratings.

BIM Automation & Digital Twins

Modern global developers no longer procure off static shop PDFs. Leading Tier-1 contractors require LOD 400 BIM families (Revit/IFC) with parametric variables for thermal expansion, structural load reactions, and installation clearances. Factory precision machining through 5-axis CNC systems directly parses BIM coordinate matrices to achieve sub-millimeter tolerances.

Circular Carbon & EPD Demands

With cross-border carbon adjustment mechanisms (CBAM) coming into force across Europe, institutional purchasers require Environmental Product Declarations (EPD). Sourcing billet cast from secondary recycled aluminum melted via renewable hydroelectric power reduces embedded carbon from 18 kg CO₂/kg Al down to under 4.2 kg CO₂/kg Al, ensuring tax compliance.

DERCHI Manufacturing Base Foshan Guangdong
TOP 10 BRAND Guangdong Dejiyoupin Doors & Windows
FACTORY EXCELLENCE

A Heavy Industrial Hub Engineered for Global Project Delivery

Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) operates as an elite Chinese manufacturer recognized among the Top 10 premium door and window brands. Spanning a sprawling 180,000 m² industrial park in Foshan with over 600 specialized production personnel, we eliminate intermediary trading costs for global commercial contractors and developers.

Our vertically integrated operations bridge raw billet extrusion, computerized thermal bridge crimping, automated CNC corner-crimping, dual-component silicone sealing, and comprehensive pre-assembly testing rigs.

  • Holistic Systems Integration: Seamlessly consolidate bifold windows, structural pivot doors, curtain wall sections, and roller shutters in single shipping containers.
  • Engineering Submittals: Full CAD shop drawings, glass stress analysis calculations, and structural wind reaction values prepared prior to extrusion.
  • Export Armor Packaging: Heavy-gauge reinforced plywood crates with moisture-barrier wrapping designed specifically to prevent transit racking on long ocean voyages.
TECHNICAL GUIDANCE

Frequently Asked Sourcing Questions

Actionable guidance for structural engineers, project quantity surveyors, and import clearing agents procuring high-span fenestration systems from China.

How do CE EN 14351-1 testing protocols verify bifold window watertightness against heavy rain? +
Watertightness under EN 12208 is evaluated using continuous spray nozzle racks delivering water at 2 L/(min·m²) while chamber air pressure systematically steps from 0 Pa up to 600 Pa (Class 9A) or higher (Exxx). For bifold configurations, vulnerable junctures occur at hinge folding knuckles and sill tracks. DERCHI mitigates this by integrating stepped sub-sills with gravity drain check-valves and continuous vulcanized vulcan-molded EPDM gasket nodes that seal mechanically under exterior wind force.
What structural differences exist between top-hung and bottom-rolling bifold window systems? +
Top-hung systems suspend the total dead-load of the glass panels from the overhead lintel, utilizing the bottom track solely as a guide. This yields effortless rolling mechanics but requires an engineered structural beam overhead that does not exceed L/500 deflection under load. Bottom-rolling systems transfer sash weight down to the concrete floor slab or foundation beam, making them ideal for retrofits or lightweight portal frames where header capacity is restricted.
What profile wall thickness is mandatory for high-span commercial bifold windows? +
Residential windows often use 1.4mm profile thickness, but commercial folding window spans exceeding 2.4 meters require structural wall profiles between 1.8mm and 2.2mm (conforming to EN 755-9 and AS2047 structural requirements). This increased wall thickness ensures screw retention for heavy stainless hardware and prevents rotational torsion in long multi-sash assemblies under high gust pressures.
How can we verify that the aluminum alloy used is genuine 6063-T5/T6 rather than scrap remelt? +
Low-grade secondary scrap aluminum contains excessive impurities (iron, zinc, lead) that cause brittle profiles and bubbling during anodizing or powder coating. DERCHI certifies all extrusions with Mill Test Certificates (MTC) matching chemical composition tolerances under ASTM B221. Furthermore, mechanical testing validates tensile strength (≥215 MPa for T6) and yield strength (≥170 MPa), supported by Webster hardness tester documentation prior to profile surface treatment.
What export packaging protocols are implemented to prevent glass delamination and frame bowing? +
Ocean transport subjects cargo to intense thermal cycling, high humidity, and harmonic hull vibration. All products are protected via a 5-layer system: (1) protective low-tack surface film across all visible aluminum profiles; (2) pearl-cotton corner buffers; (3) desiccated shrink wrapping preventing saline vapor contact; (4) closed ISPM-15 compliant fumigated solid plywood cases; and (5) internal steel-strapping with rubber spacers to isolate glass edges from contact vibration.
Can bifold windows be integrated with insect screens or motorized blinds without custom sub-frames? +
Yes. DERCHI engineers dual and triple-channel integrated jamb extrusions that house pleated insect screens (such as high-tenacity polyester accordion meshes) or motorized roller shades directly within the primary window depth. This provides a clean architectural detail without requiring on-site timber furring or secondary add-on sub-frames.

Plan Your Next Commercial or Villa Glazing Schedule with Factory Engineers

Direct supply contracts, comprehensive shop drawings, structural wind-deflection calculations, and container consolidation services engineered from Foshan straight to your site.

Get a Quote
